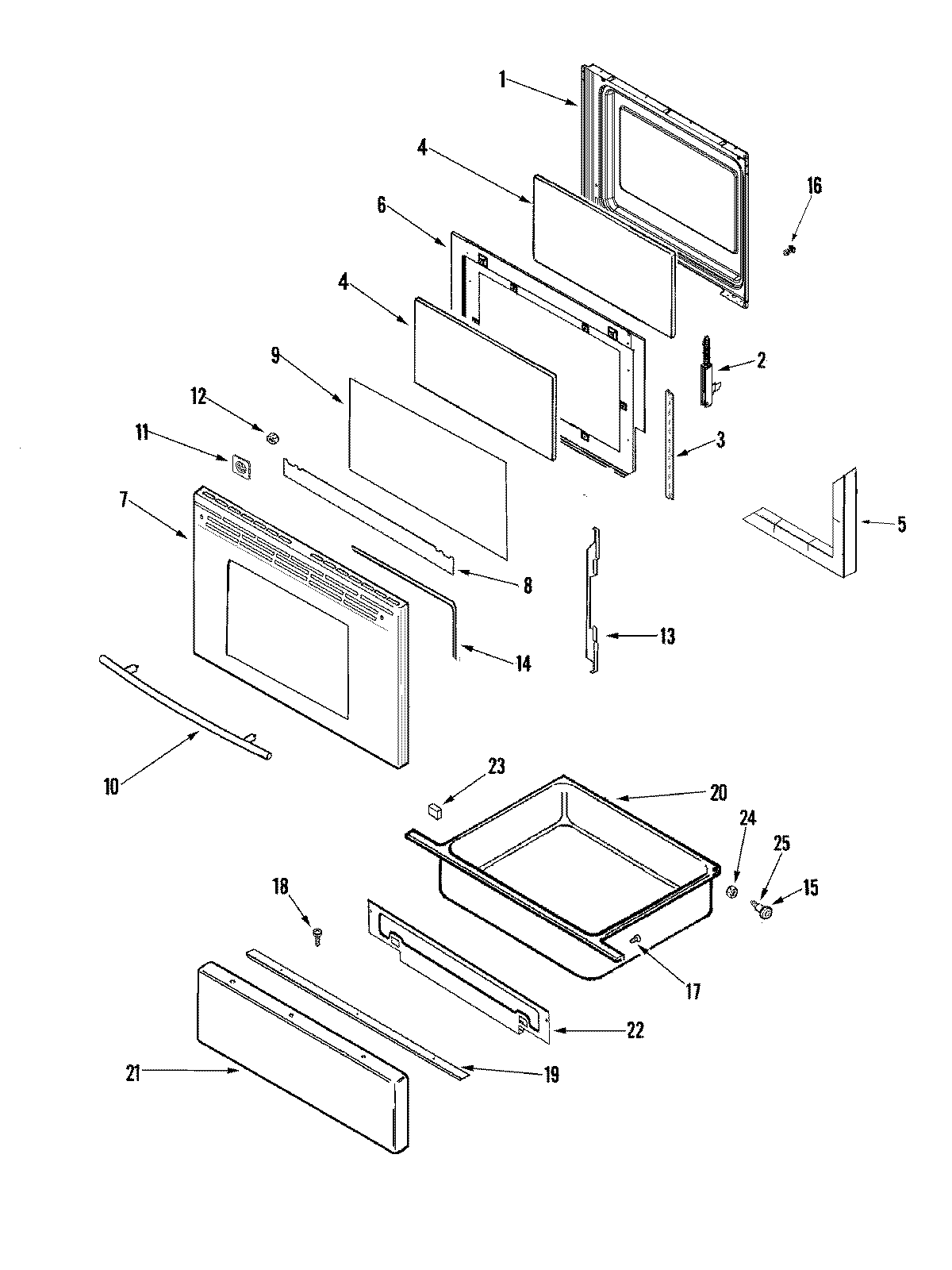

JDR8880RDS 04 – DOOR/DRAWER (STL)

JDR8880RDS 04 – DOOR/DRAWER (STL)

Written by

in

JDR8880RDS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
33801F886-51 Whirlpool Mounting Bracket
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6Retainer, Side
6SCREW
7PANEL, DOOR (STL)
8TAPE, FOIL
9MAY 7902P805-60
10MAY 74008920
11MAY 74008914
12WP3400029 Whirlpool Dishwasher Nut
13MAY 3801F918-51
1574008916 Whirlpool Window Gasket
16SCREW (10-24X5/16-NI)
17WP7101P072-60 Whirlpool Screw
19MAY 74008909
19HANDLE, DRAWER
20MAY 3405F037-80
20WP3405F037-80 Whirlpool Utility Drawer
21MAY 74009518
22MAY 74009105
23WP74005546 Whirlpool RU Spacer
24WP488130 Whirlpool Air Conditioner Nut
25SHAFT, STORAGE DRAWER ROLLER
26WP74004078 Whirlpool Door Roller
