JDR8880RDS 05 – GAS CONTROLS

JDR8880RDS 05 – GAS CONTROLS

Written by

in

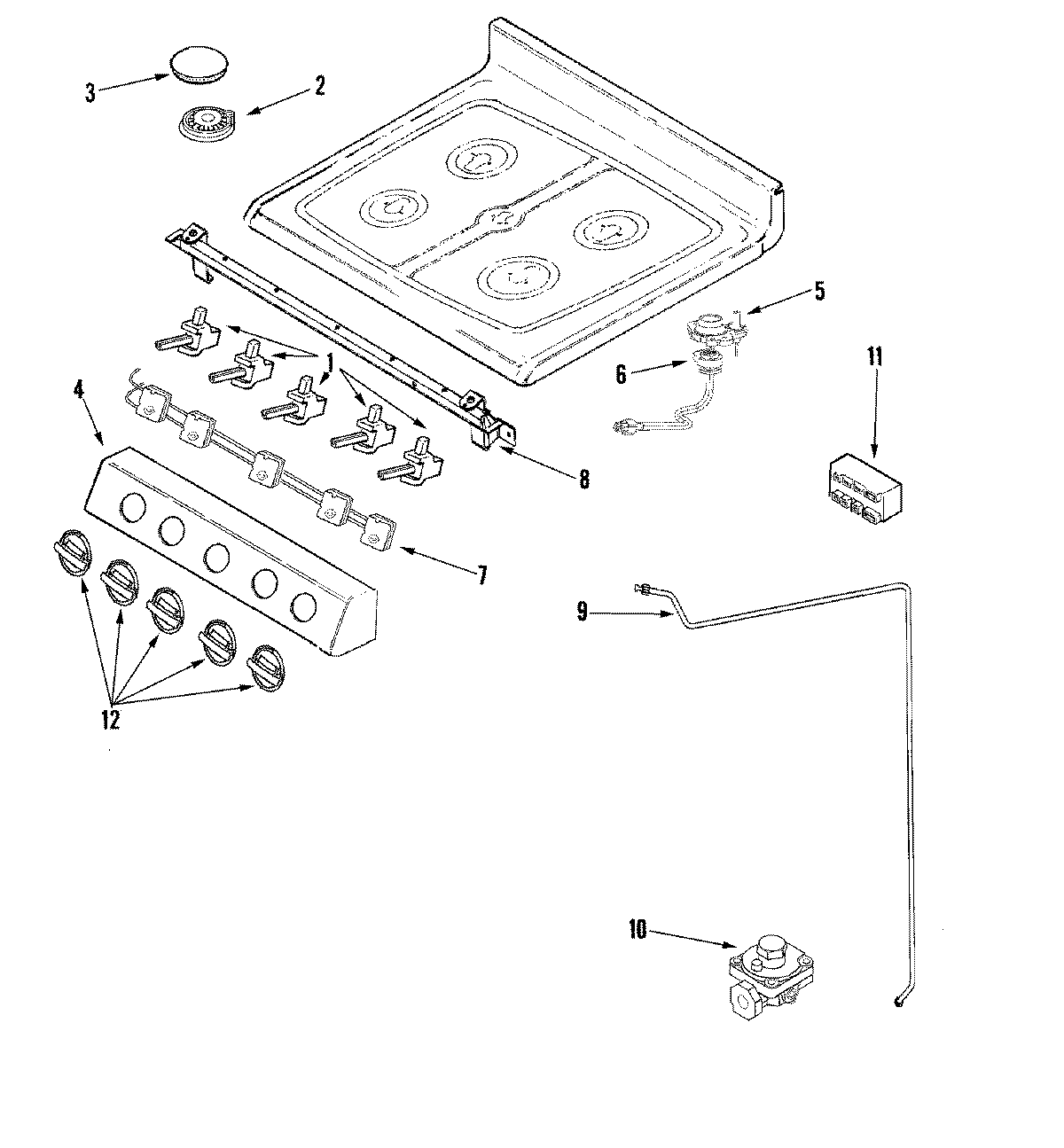

JDR8880RDS 05 – GAS CONTROLS

Products

PositionProduct
1VALVE, 16K (COPRECI)
1WP74009857 Whirlpool Screw
1VALVE, 12K (COPRECI)
1VALVE, BURNER (5K COPRECI)
2WPW10406243 Whirlpool Burner Head Auxiliary 6K
2WP400021-1 Whirlpool Screw
2WPW10406878 Whirlpool Burner Base (16K)
2WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
3WP3191898 Whirlpool Surface Burner Cap Black
3WP74007925 Whirlpool Burner Cap
3WPW10154101 Whirlpool Burner Cap
4PANEL, MANIFOLD (STL)
474008761 Whirlpool Spacer Snap-In
4W11693756 Whirlpool Screw Assembly
5WP74009958 Whirlpool Spark Electrode Assembly
6ORIFICE HOLDER/TUBE ASY (LF)
6W10154209 Whirlpool Orifice Holder
6WP74009099 Whirlpool Orifice Holder
6MAY 7527P100-60
6ORIFICE HOLDER/TUBE ASY (CTR)
7WP74010753 Whirlpool Harness Assembly
8MAY 74008815
9MAY 7506P519-60
10MAY 74005560
103801F691-51 Whirlpool Bracket
1174009098 Whirlpool Spark Module
11SCREW
12WP74009147 Whirlpool Control Knob
