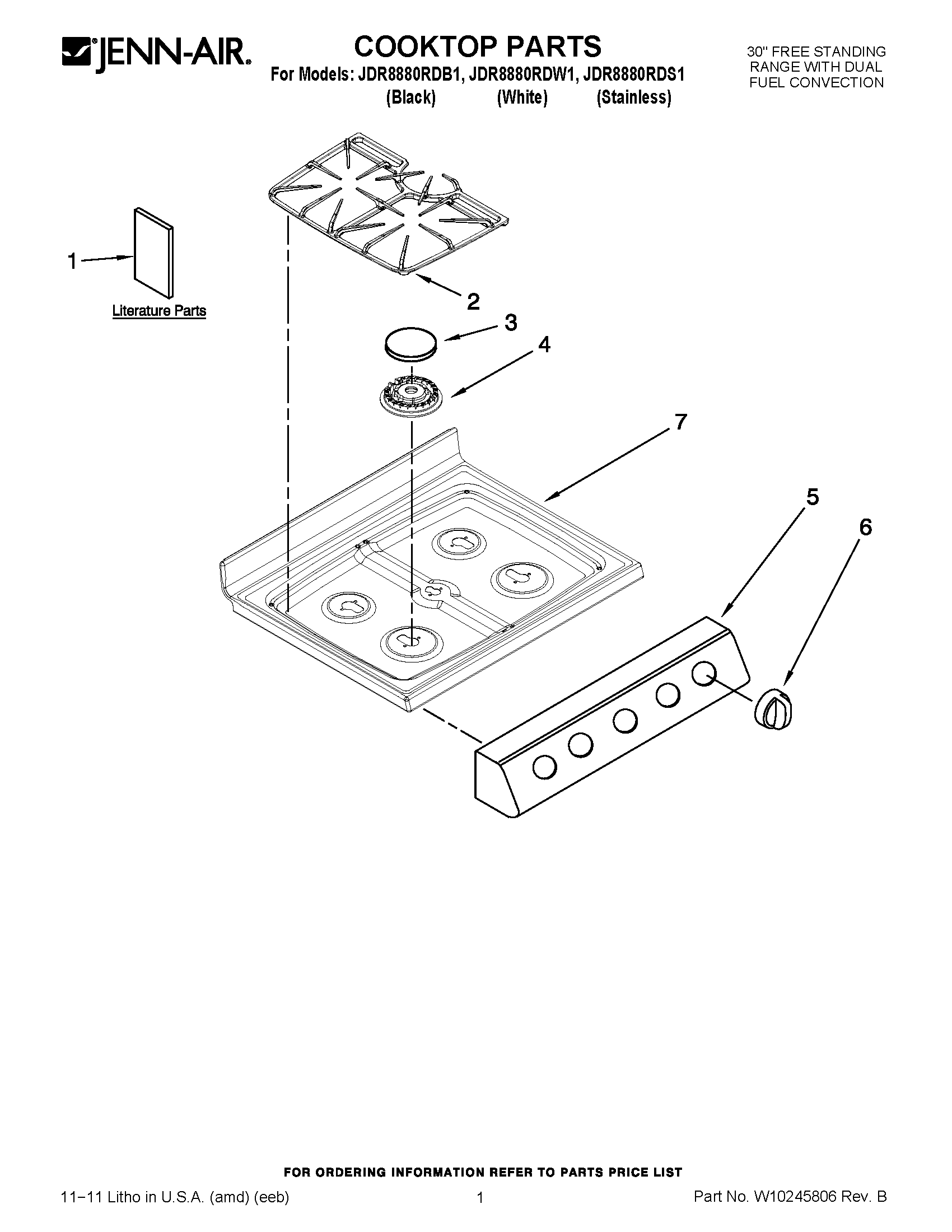

JDR8880RDS1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1Wiring Diagram
1MAY 8101P729-60
2GRATE, BURNER (2) (GRAY)
2GRATE, BURNER (2) (BLACK)
3CAP, BURNER RIGHT FRONT (GRAY)
3CAP, BURNER (LF)(RR) (GRAY)
3CAP, BURNER LF,RR (BLACK)
3CAP, BURNER (GREY, CTR)
3Cap, Burner (Grey)
3CAP, BURNER (LF & RR)
3CAP, BURNER (CTR)
3Cap, Burner (Black)
4HEAD, BURNER (RF)
4HEAD, BURNER (LR/RR/LF)
4BURNER (LF,RR)
4HEAD, BURNER CTR.
5MAY 2616F328-81
5MAY 2616F328-09
5MAY 2616N343-50
6KNOB, CONTROL (5) (BRUSHED CHROME)
7MAY 2001F287-81
7MAY 2001F287-09
