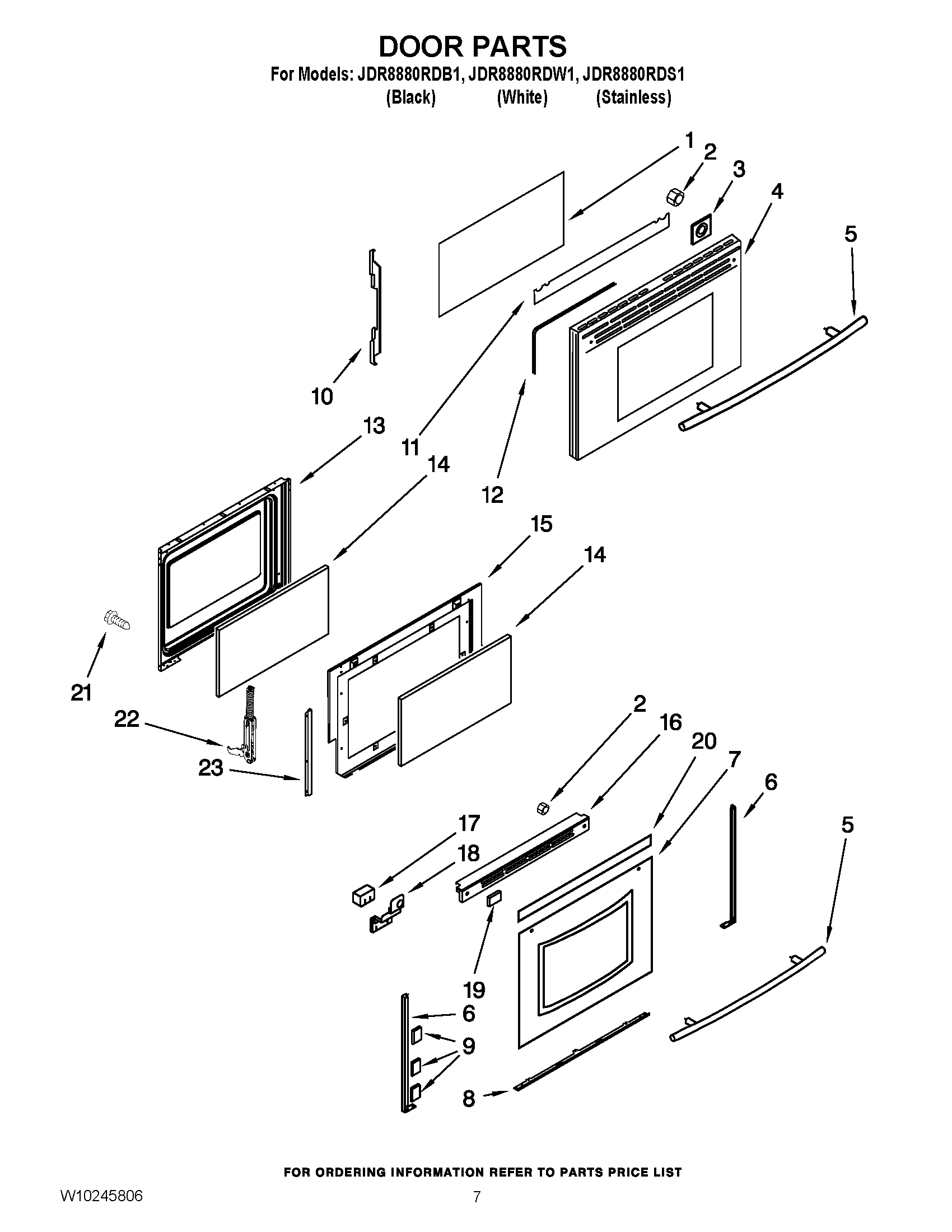

JDR8880RDS1 06 – DOOR PARTSadmin2025-04-26T09:44:41+00:00JDR8880RDS1 06 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 7002P246-60 |
| 2 | MAY 7103P176-60 |
| 3 | MAY 3823F017-45 |
| 4 | PANEL, DOOR (STL) |
| 5 | HANDLE, DOOR (WHITE) |
| 6 | MAY 3608F126-71 |
| 6 | MAY 3608F126-70 |
| 7 | GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS) |
| 7 | MAY 7902P784-60 |
| 8 | MAY 3608F092-70 |
| 8 | MAY 3608F092-71 |
| 9 | MAY W10208307 |
| 9 | Tape, Double Sided (White) |
| 10 | MAY 3801F918-51 |
| 11 | STRAP, INSULATION |
| 12 | MAY 7201P140-60 |
| 13 | MAY 2402W297-19 |
| 14 | MAY 7902P463-60 |
| 15 | Retainer, Side |
| 16 | MAY 3608F139-70 |
| 16 | TRIM, TOP |
| 17 | INSULATION, CORNER (DOOR) |
| 18 | MAY 3801P858-45 |
| 18 | MAY 3801P857-45 |
| 19 | MAY W10208318 |
| 20 | TAPE, FOIL 3`` |
| 21 | SCREW (10-24X5/16-NI) |
| 22 | MAY 7106P124-60 |
| 23 | BRACKET, INNER GLASS |
