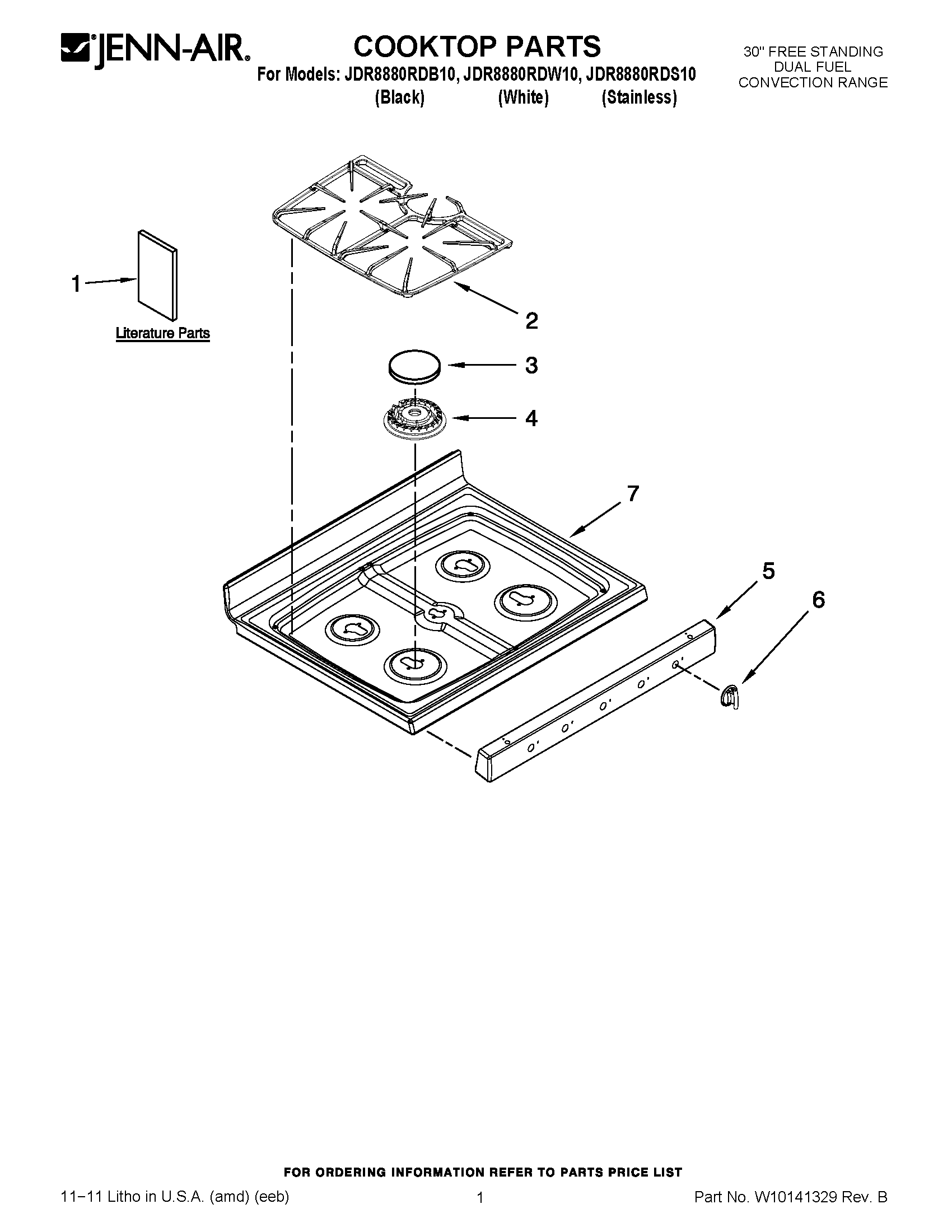

JDR8880RDS10 01 – COOKTOP PARTS

JDR8880RDS10 01 – COOKTOP PARTS

Written by

in

JDR8880RDS10 01 – COOKTOP PARTS

Products

PositionProduct
1Wiring Diagram
1MAY 8113P622-60
2MAY 74009143
2GRATE, DOUBLE (GRY-FOR WHT MOD
3WP74007925 Whirlpool Burner Cap
3CAP, BURNER (SMR-GRY)
3WP3191898 Whirlpool Surface Burner Cap Black
3WP74007420 Whirlpool Large Gray Burner Cap
3WP74007752 Whirlpool Burner Cap (Medium Gray)
3WPW10154101 Whirlpool Burner Cap
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
4WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
5PANEL, MANIFOLD (WHT)
5MAY 74009138
5PANEL, MANIFOLD (STL)
6WP74009147 Whirlpool Control Knob
7MAY 74009086
7TOP, MAIN 5 BURNER (WHT)
