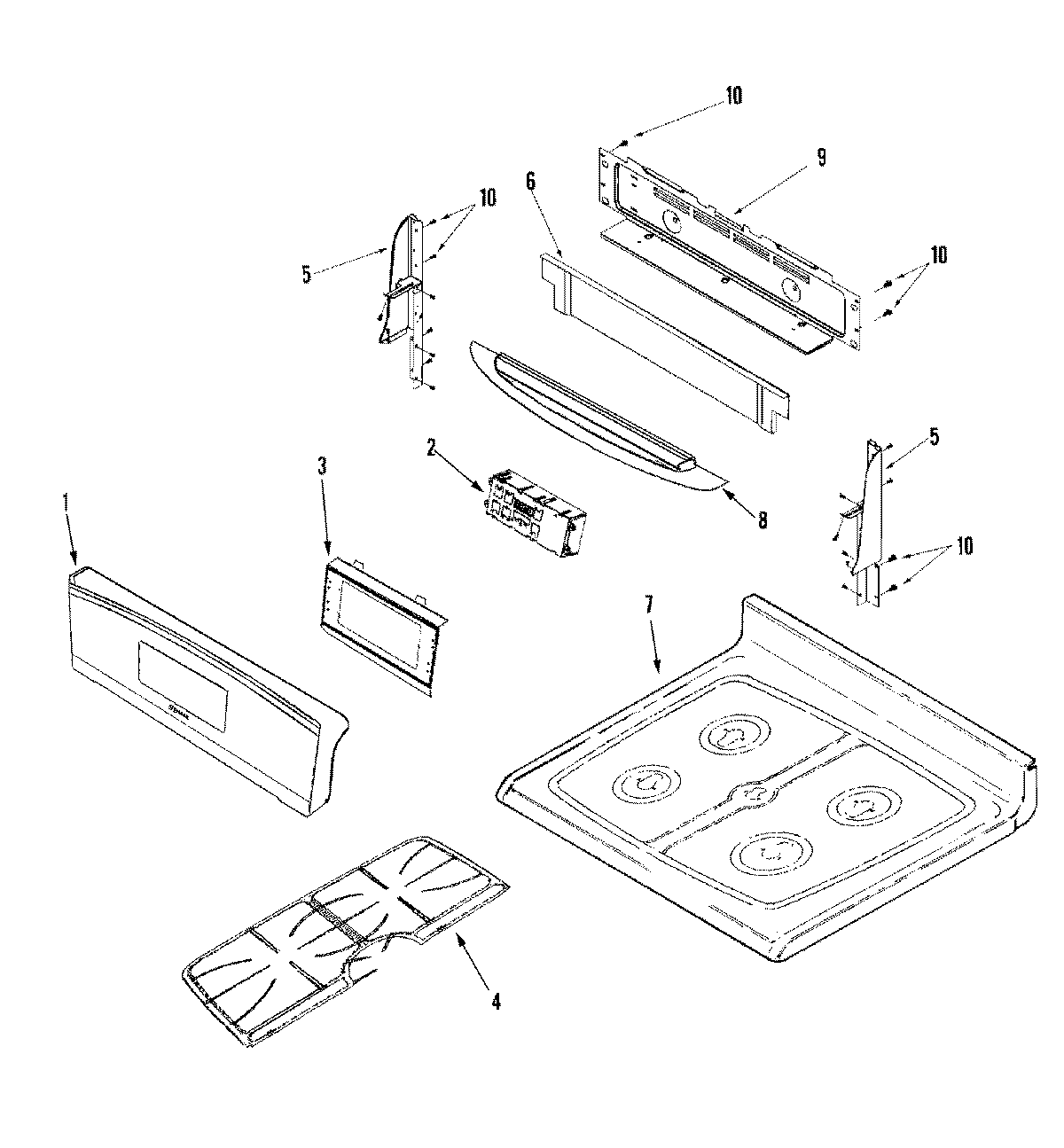

JDR8880RDW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	BKGD PANEL/SWITCH ASY (WHT)
2	MAY 8507P333-60
3	MAY 74011982
4	W10919249 Whirlpool Burner Grate Foot
4	GRATE, DOUBLE (GRY-FOR WHT MOD
4	MAY M0275597
5	End Cap (Right Black)
5	End Cap (Left Black)
6	MAY 74009444
7	TOP, MAIN 5 BURNER (WHT)
8	MAY 74009203
8	SCREW, SHOULDER
9	MAY 74010983
9	SCREW (8BX3/8-NI)
10	SCREW
