JDR8880RDW 04 – DOOR/DRAWER

JDR8880RDW 04 – DOOR/DRAWER

Written by

in

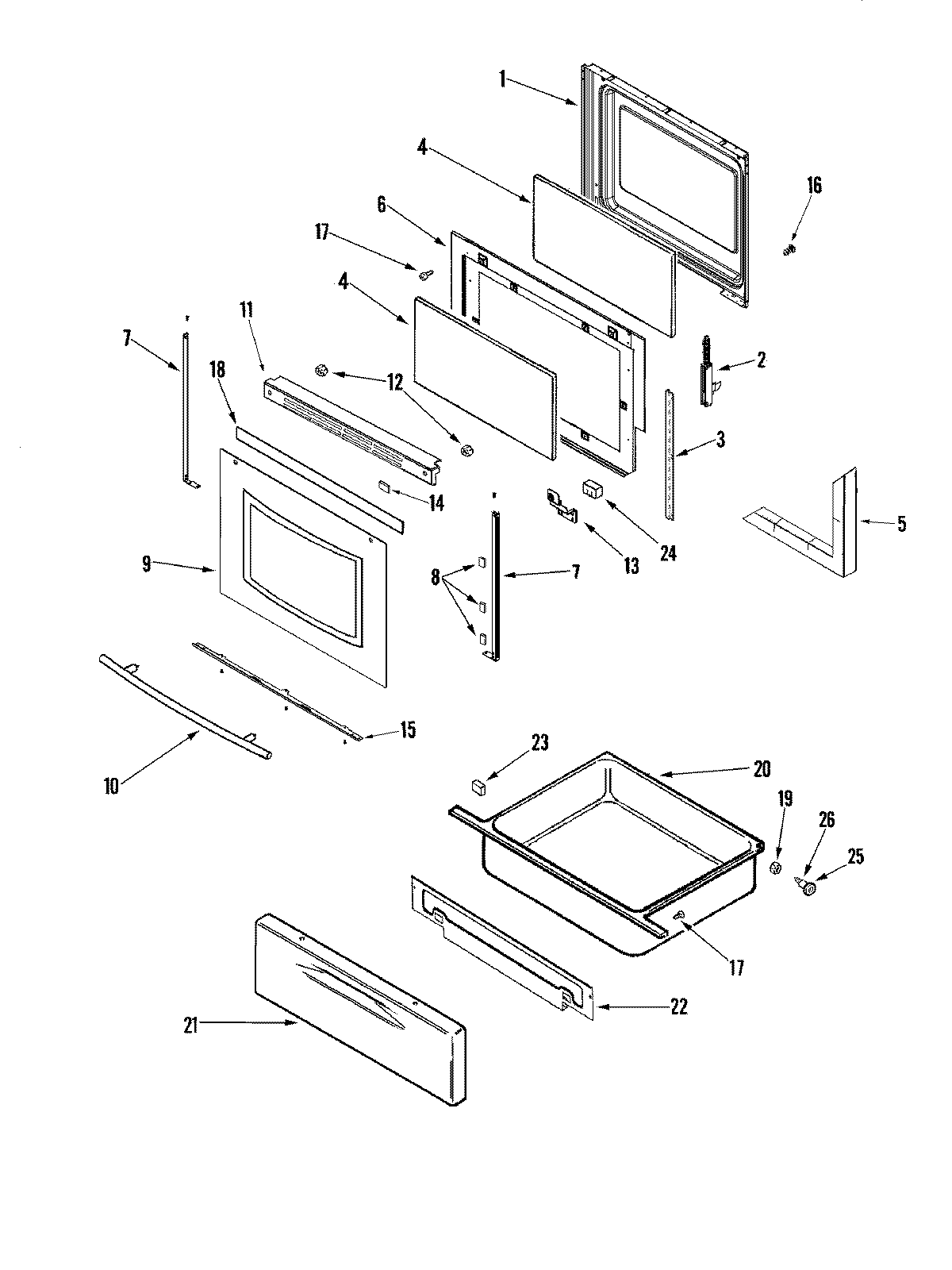

JDR8880RDW 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
33801F886-51 Whirlpool Mounting Bracket
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6Retainer, Side
7MAY 74010561
8WP74009014 Whirlpool Double Tape
9GLASS, DOOR (WHT)
10MAY 74008920
11MAY 74008747
11WP98008544 Whirlpool Screw Assembly
12WP3400029 Whirlpool Dishwasher Nut
13BRACKET, DOOR HANDLE (LT)
13BRACKET, DOOR HANDLE (RT)
14WP74004224 Whirlpool Tape
15WP3608F092-71 Whirlpool Bottom Trim
16SCREW (10-24X5/16-NI)
17SCREW
18TAPE, FOIL (3“ WIDE)
19WP488130 Whirlpool Air Conditioner Nut
20WP3405F037-80 Whirlpool Utility Drawer
21PANEL, DRAWER (WHT)
22SHIELD, DRAWER HEAT
23WP74005546 Whirlpool RU Spacer
24INSULATION, CORNER (DOOR)
25SHAFT, STORAGE DRAWER ROLLER
26WP74004078 Whirlpool Door Roller
