JDR8880RDW 05 – GAS CONTROLS
Written by
in

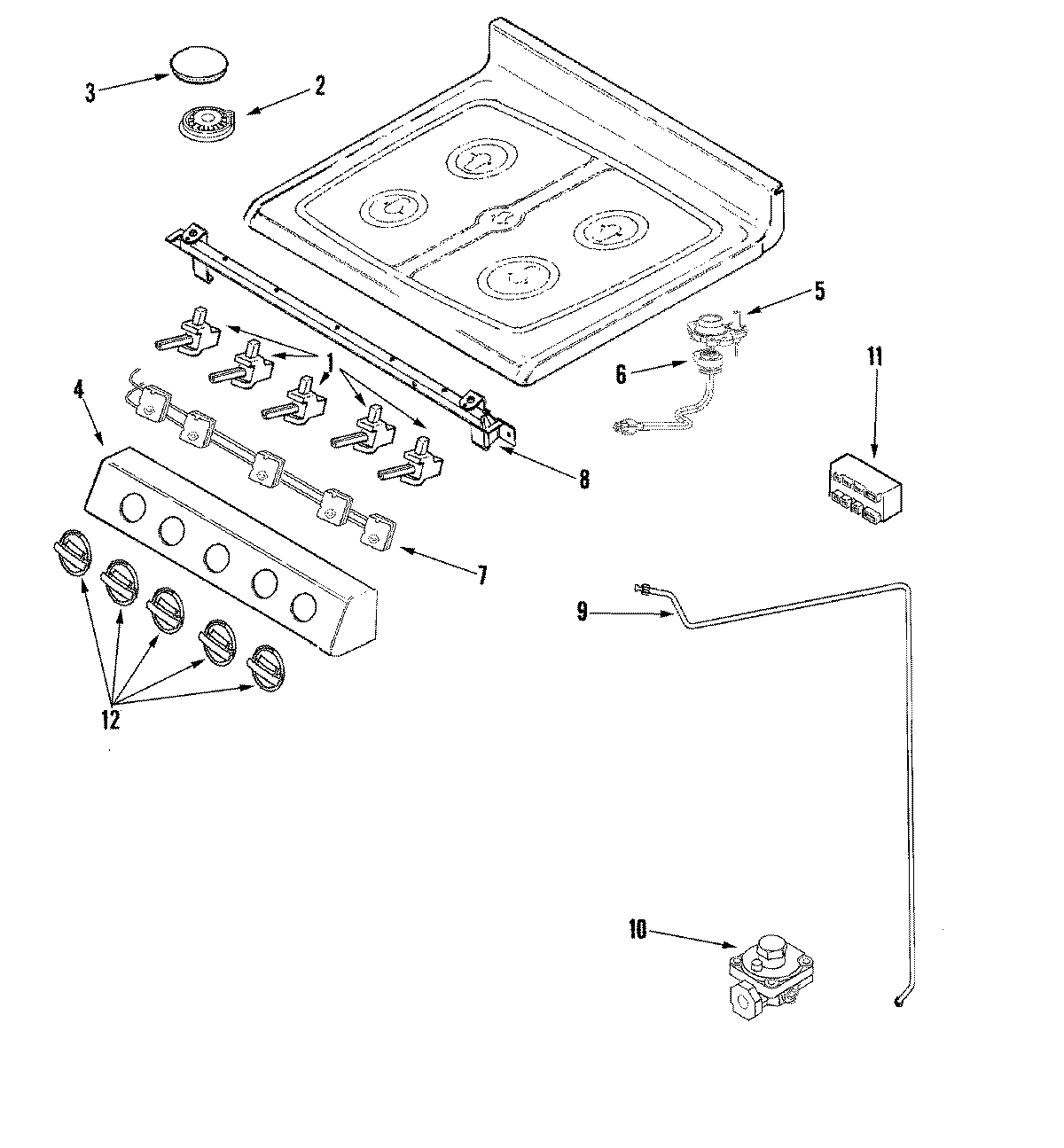

JDR8880RDW 05 – GAS CONTROLS
Products
Position
Product
1
VALVE, 12K (COPRECI)
1
VALVE, 16K (COPRECI)
1
VALVE, BURNER (5K COPRECI)
1
WP74009857 Whirlpool Screw
2
WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2
WPW10406878 Whirlpool Burner Base (16K)
2
WPW10406243 Whirlpool Burner Head Auxiliary 6K
2
WP400021-1 Whirlpool Screw
3
WP74007752 Whirlpool Burner Cap (Medium Gray)
3
WP74007420 Whirlpool Large Gray Burner Cap
3
CAP, BURNER (SMR-GRY)
4
PANEL, MANIFOLD (WHT)
4
74008761 Whirlpool Spacer Snap-In
4
W11693756 Whirlpool Screw Assembly
5
WP74009958 Whirlpool Spark Electrode Assembly
6
WP74009099 Whirlpool Orifice Holder
6
W10154209 Whirlpool Orifice Holder
6
ORIFICE HOLDER/TUBE ASY (LF)
6
MAY 7527P100-60
6
ORIFICE HOLDER/TUBE ASY (CTR)
7
WP74010753 Whirlpool Harness Assembly
8
MAY 74008815
9
MAY 7506P519-60
10
MAY 74005560
10
3801F691-51 Whirlpool Bracket
11
74009098 Whirlpool Spark Module
11
SCREW
12
WP74009147 Whirlpool Control Knob
←
