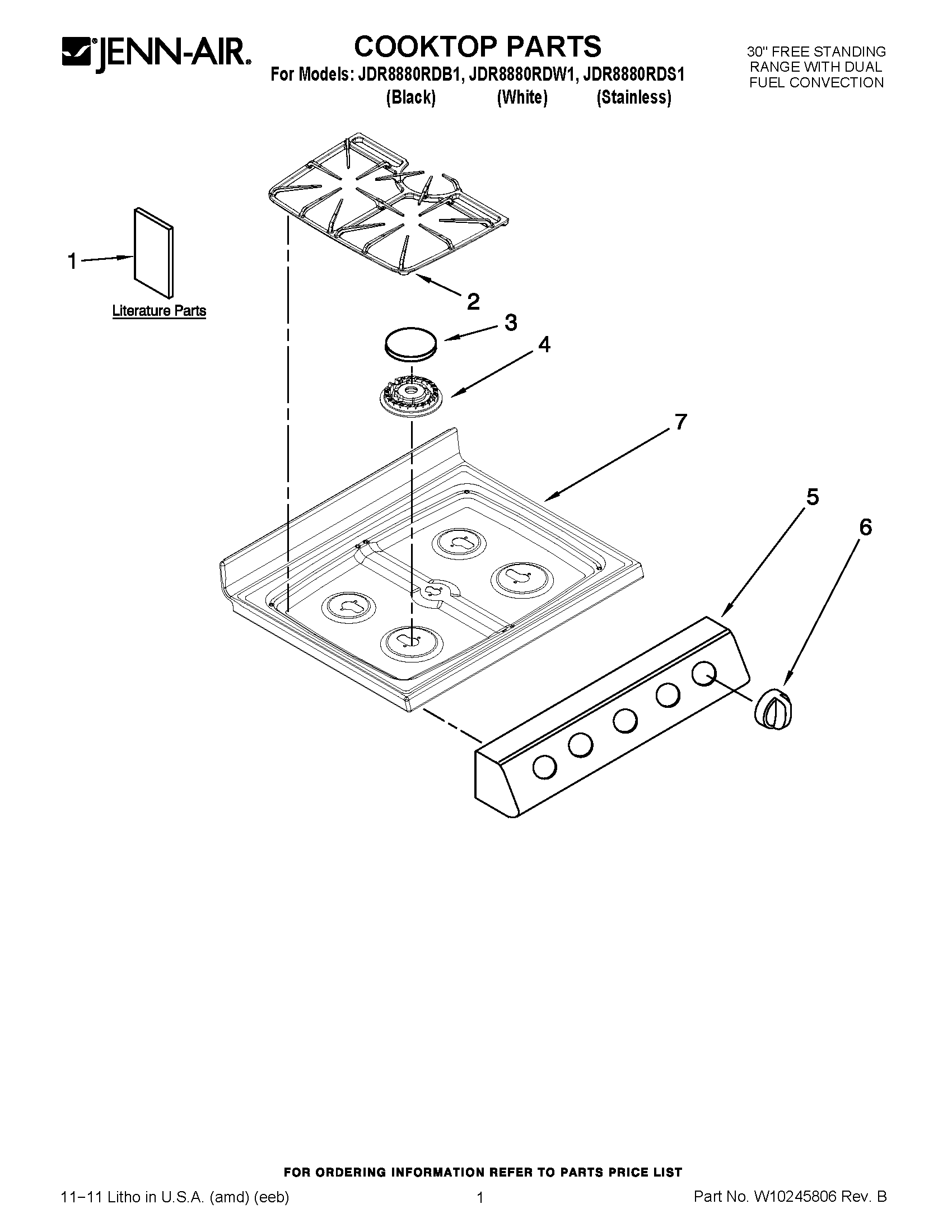

JDR8880RDW1 01 – COOKTOP PARTSadmin2025-04-26T09:45:18+00:00JDR8880RDW1 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 1 | Wiring Diagram |
| 1 | MAY 8101P729-60 |
| 2 | GRATE, BURNER (2) (GRAY) |
| 2 | GRATE, BURNER (2) (BLACK) |
| 3 | CAP, BURNER RIGHT FRONT (GRAY) |
| 3 | CAP, BURNER (LF)(RR) (GRAY) |
| 3 | CAP, BURNER LF,RR (BLACK) |
| 3 | CAP, BURNER (GREY, CTR) |
| 3 | Cap, Burner (Grey) |
| 3 | CAP, BURNER (LF & RR) |
| 3 | CAP, BURNER (CTR) |
| 3 | Cap, Burner (Black) |
| 4 | HEAD, BURNER (RF) |
| 4 | HEAD, BURNER (LR/RR/LF) |
| 4 | BURNER (LF,RR) |
| 4 | HEAD, BURNER CTR. |
| 5 | MAY 2616F328-81 |
| 5 | MAY 2616F328-09 |
| 5 | MAY 2616N343-50 |
| 6 | KNOB, CONTROL (5) (BRUSHED CHROME) |
| 7 | MAY 2001F287-81 |
| 7 | MAY 2001F287-09 |
