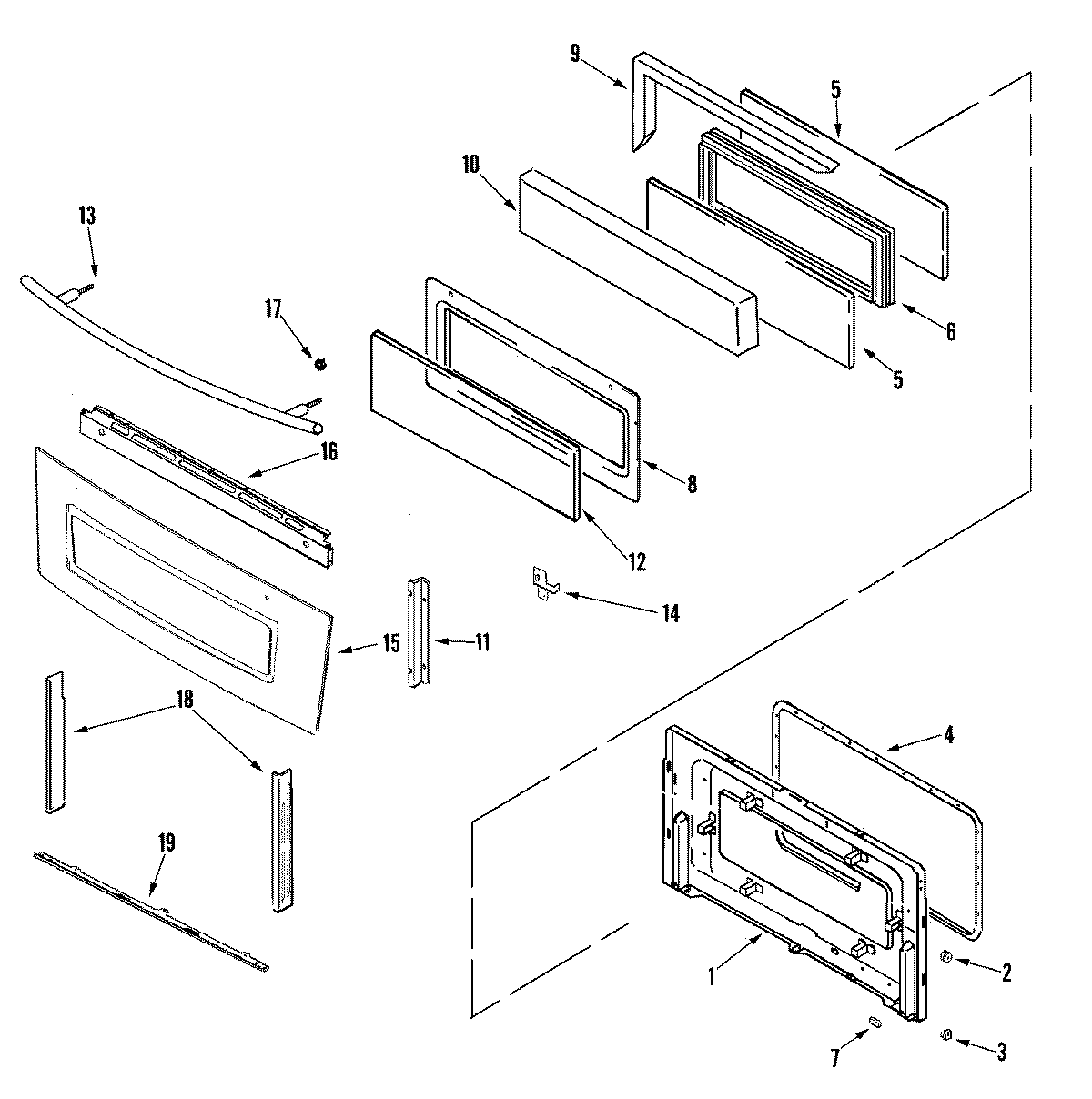

JDR8895AAB 04 – DOOR (UPPER)

JDR8895AAB 04 – DOOR (UPPER)

Written by

in

JDR8895AAB 04 – DOOR (UPPER)

Products

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4WP7201P091-60 Whirlpool Door Gasket
5MAY 74004566
6MAY 74004567
7WP74005546 Whirlpool RU Spacer
8MAY 74009976
9MAY 74004569
10INSULATION, DOOR (3 X 8.7)
11MAY 74004592
12MAY 74004571
13MAY 74008920
143801F832-45 Whirlpool Bracket
143801F831-45 Whirlpool Bracket Assembly
14SCREW (10ABX1/4P TR ZN)
15MAY 12002474
16MAY 74010185
17MAY 715634
17WP74006515 Whirlpool Washer Screw
18MAY 74009745
18WP74009025 Whirlpool Double Sided Tape
18WP98008545 Whirlpool Screw
18MAY 74009746
19SUPPORT, GLASS (BLK)
19SCREW
