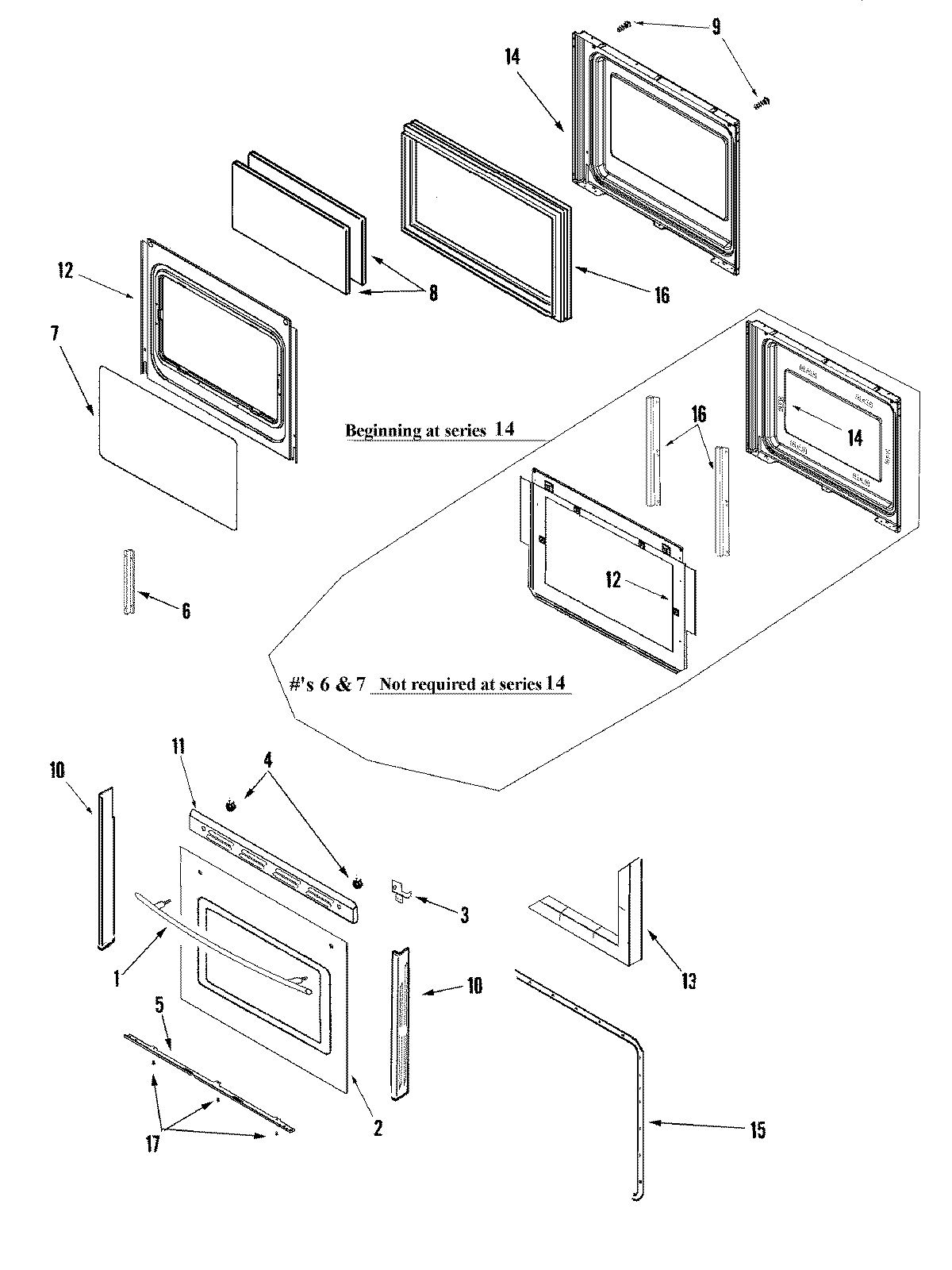

JDR8895AAW 03 – DOOR (LOWER)

Products

Position	Product
1	MAY 74008914
1	MAY 74008920
2	MAY 12002477
3	3801F831-45 Whirlpool Bracket Assembly
3	SCREW (10ABX1/4P TR ZN)
3	3801F832-45 Whirlpool Bracket
4	MAY 715634
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	GLASS, DOOR
7	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP74009014 Whirlpool Double Tape
10	WP3608F116-71 Whirlpool Door Trim
10	WP3608F117-71 Whirlpool Door Trim
11	WP98008544 Whirlpool Screw Assembly
11	TAPE, FOIL 29`` X 2``
11	MAY 74010186
12	MAY 74009502
12	3601F373-51 Whirlpool Baffle
12	MAY 7101P356-60
13	INSULATION, OVEN DOOR
14	MAY 74003642
14	NUT, SNAP (ROUND-WHT)
14	LINING, DOOR
14	NUT, SNAP (ROUND-BLK)
15	GASKT-DOOR OVEN
16	SCREW
16	FRAME, GLASS
16	SCREW, 8 X 1/2
16	3801F886-51 Whirlpool Mounting Bracket
