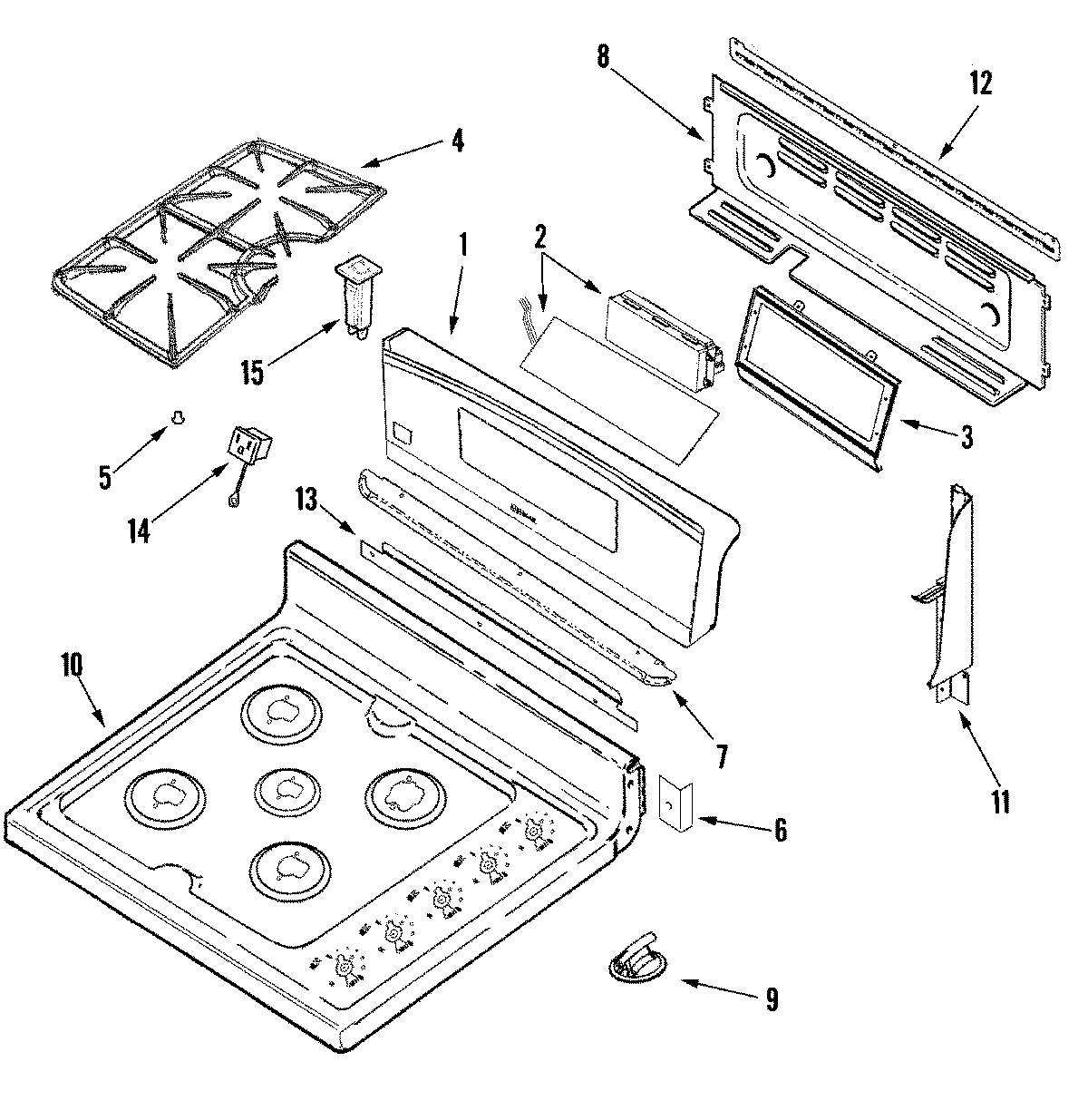

JDR8895ACB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010583
2WP5701M796-60 Whirlpool Oven Control Board
3MAY 74010217
4MAY 74010209
5W10919249 Whirlpool Burner Grate Foot
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6MAY 74010106
7MAY 74010183
774003975 Whirlpool Screw P1 (8ABX3/8-BLK)
8SCREW (8BX3/8-NI)
8MAY 74009943
8SCREW
8WP400021-1 Whirlpool Screw
9WP74010205 Whirlpool Stove Stainless Burner Control Knob
9WP74005934 Whirlpool Grommet
10MAY 74010178
11WP74003976 Whirlpool Screw
11WP98008545 Whirlpool Screw
11MAY 74010201
11MAY 74010202
12MAY 74009701
13MAY 7101P147-60
13MAY 74010215
14MAY 71003068
15MAY 71003070
