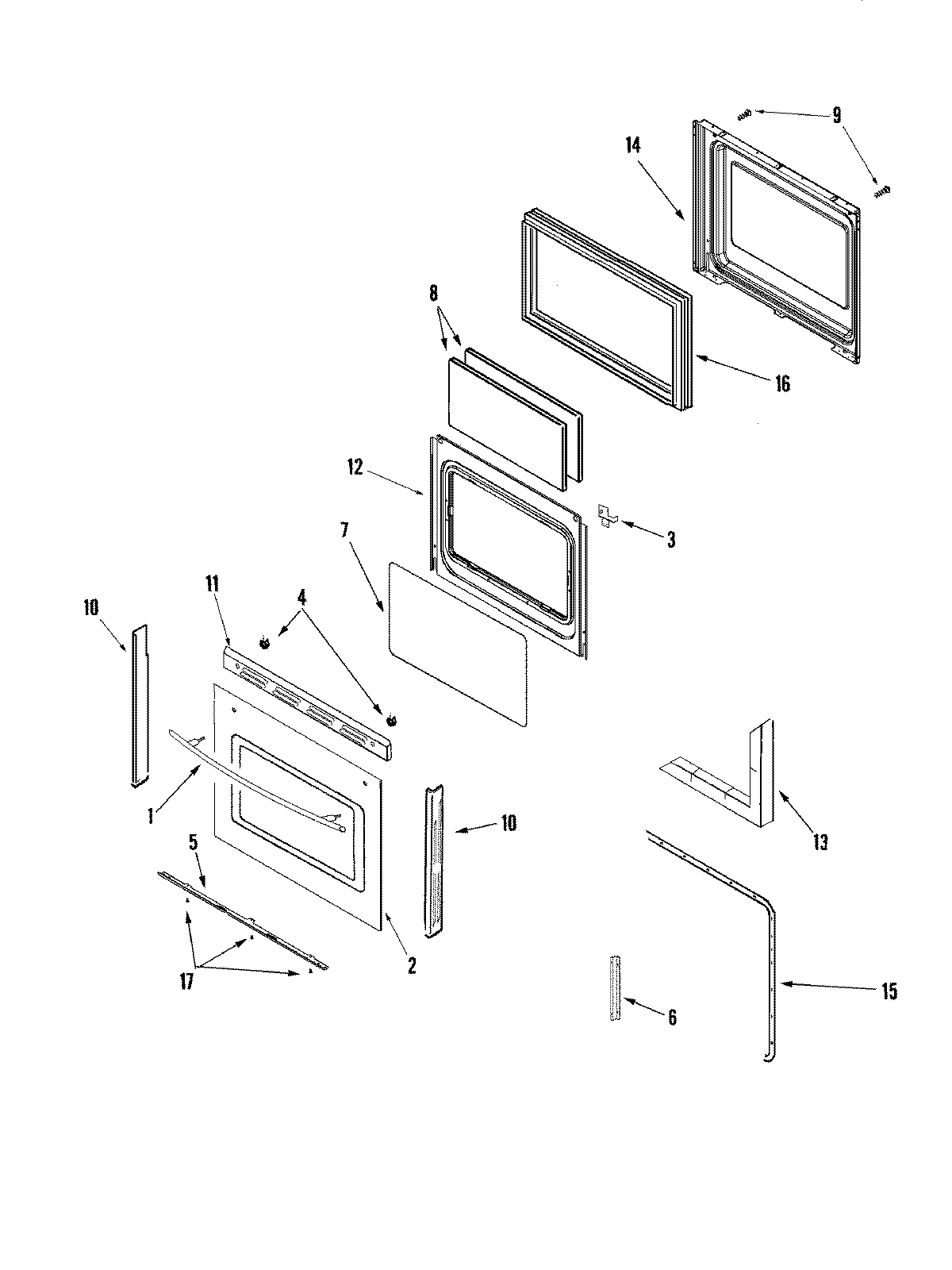

JDR8895ACB 03 – DOOR (LOWER)

JDR8895ACB 03 – DOOR (LOWER)

Written by

in

JDR8895ACB 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74008920
1MAY 74008914
2MAY 12002476
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
3SCREW (10ABX1/4P TR ZN)
4MAY 715634
5SUPPORT, GLASS (BLK)
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F117-70 Whirlpool Door Trim
10WP3608F116-70 Whirlpool Door Trim
10WP74009025 Whirlpool Double Sided Tape
11TAPE, FOIL 29“ X 2“
11MAY 74010185
11WP98008545 Whirlpool Screw
12MAY 74009502
12MAY 7101P356-60
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
14NUT, SNAP (ROUND-WHT)
14MAY 74003642
15GASKT-DOOR OVEN
163801F886-51 Whirlpool Mounting Bracket
16SCREW, 8 X 1/2
16FRAME, GLASS
16SCREW
