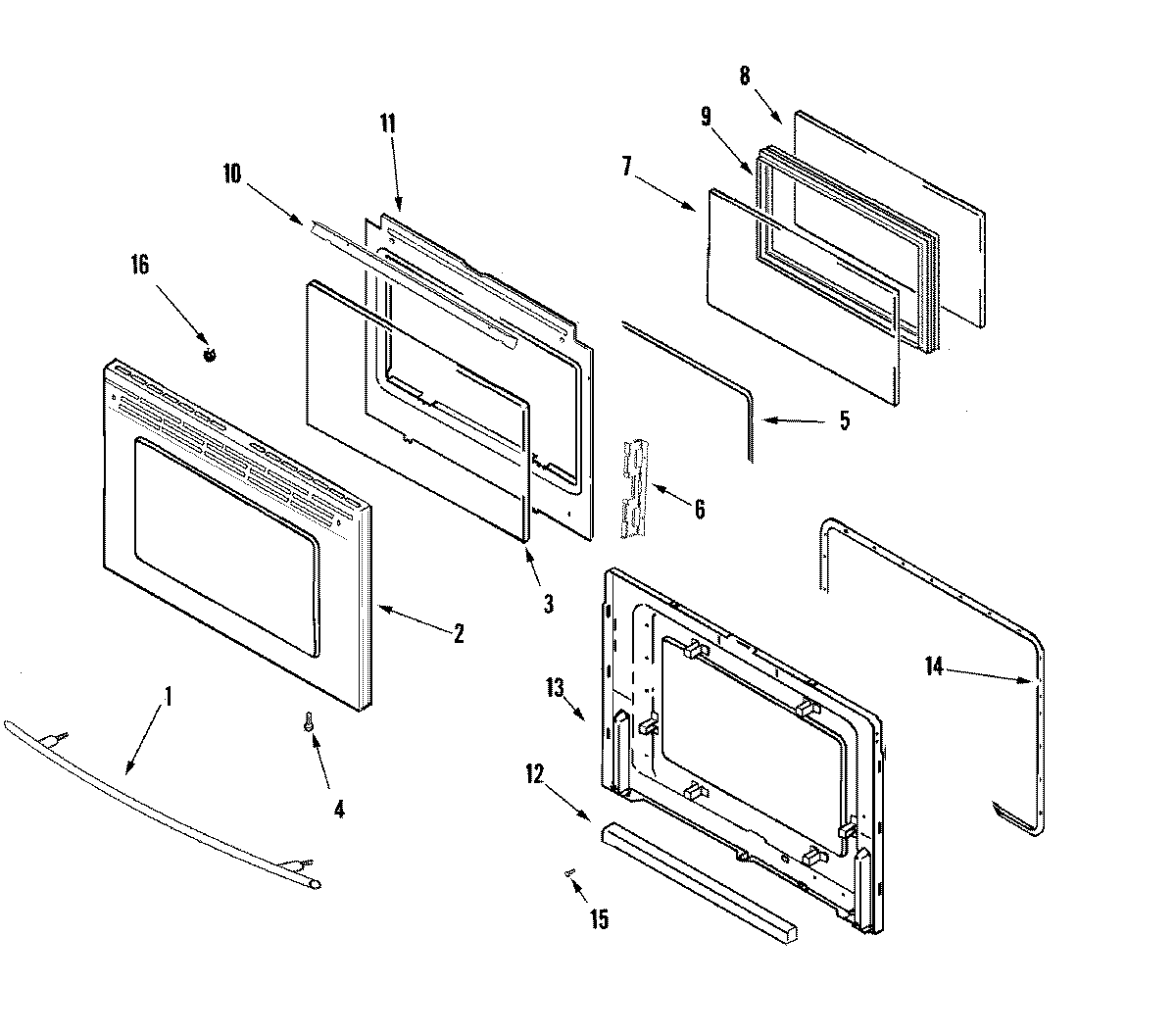

JDR8895ACS 03 – DOOR (LOWER-STL)

JDR8895ACS 03 – DOOR (LOWER-STL)

Written by

in

JDR8895ACS 03 – DOOR (LOWER-STL)

Products

PositionProduct
1MAY 74008920
1MAY 74008914
2MAY 74010197
2Insulation, Foil
3MAY 74010196
574008916 Whirlpool Window Gasket
6MAY 74010041
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
93801F886-51 Whirlpool Mounting Bracket
9SCREW, 8 X 1/2
9FRAME, GLASS
10MAY 74010040
11MAY 74009502
113601F373-51 Whirlpool Baffle
12INSULATION, OVEN DOOR
13LINING, DOOR
13MAY 74003642
13NUT, SNAP (ROUND-BLK)
14GASKT-DOOR OVEN
15SCREW
16MAY 715634
