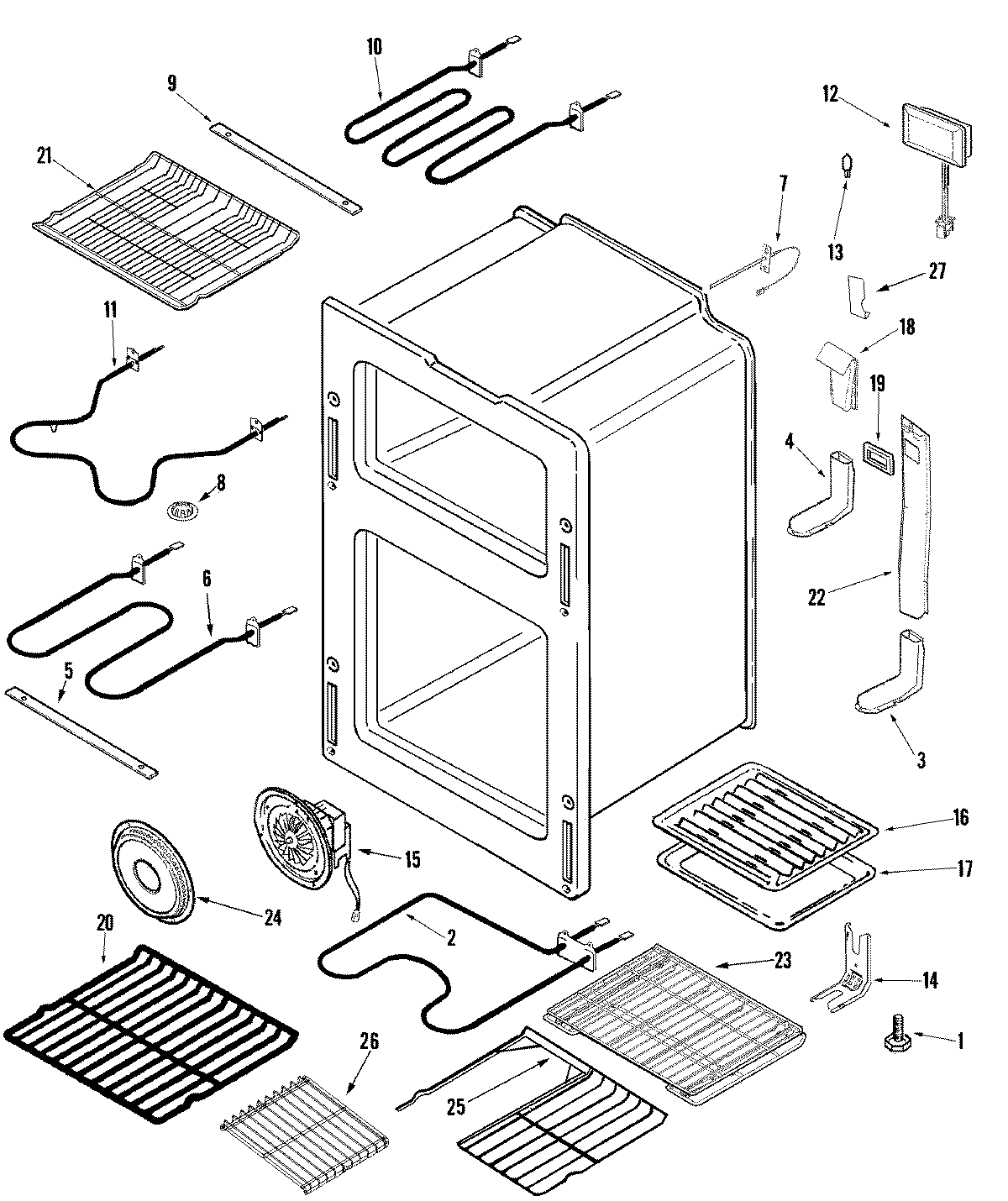

JDR8895ACS 06 – OVEN

Products

Position	Product
1	W11665456 Whirlpool Range Level Foot
2	MAY 74007932
2	WP7406P428-60 Whirlpool Oven Bake Element
3	MAY 74003394
4	MAY 74004522
5	WP400021-1 Whirlpool Screw
5	SUPPORT, BROIL ELEMENT
6	WPW10310249 Whirlpool Broil Element
7	12001656 Whirlpool Range Oven Temperature Sensor
7	MAY 74003095
8	MAY 74004517
9	MAY 3807F176-19
10	W10201551 Whirlpool Oven Broil Element
11	74004105 Whirlpool Range Upper Oven Bake Element
12	MAY 74009970
13	WP74009925 Whirlpool Halogen Light Bulb
14	WP7101P485-60 Whirlpool Anchor Tip
14	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
15	WPW10206586 Whirlpool Convection Motor
16	MAY Y3413F01619
17	MAY Y3401F02019
18	MAY 74009987
19	MAY 74004533
20	WPW10282492 Whirlpool Oven Rack
21	WPW10273816 Whirlpool Oven Rack
22	MAY 74004535
22	SCREW
23	MAY 74005218
24	COVER, CONVECT
25	WPW10273862 Whirlpool Oven Rack
26	INSERT, HALF RACK 30“
27	MAY 74010203
