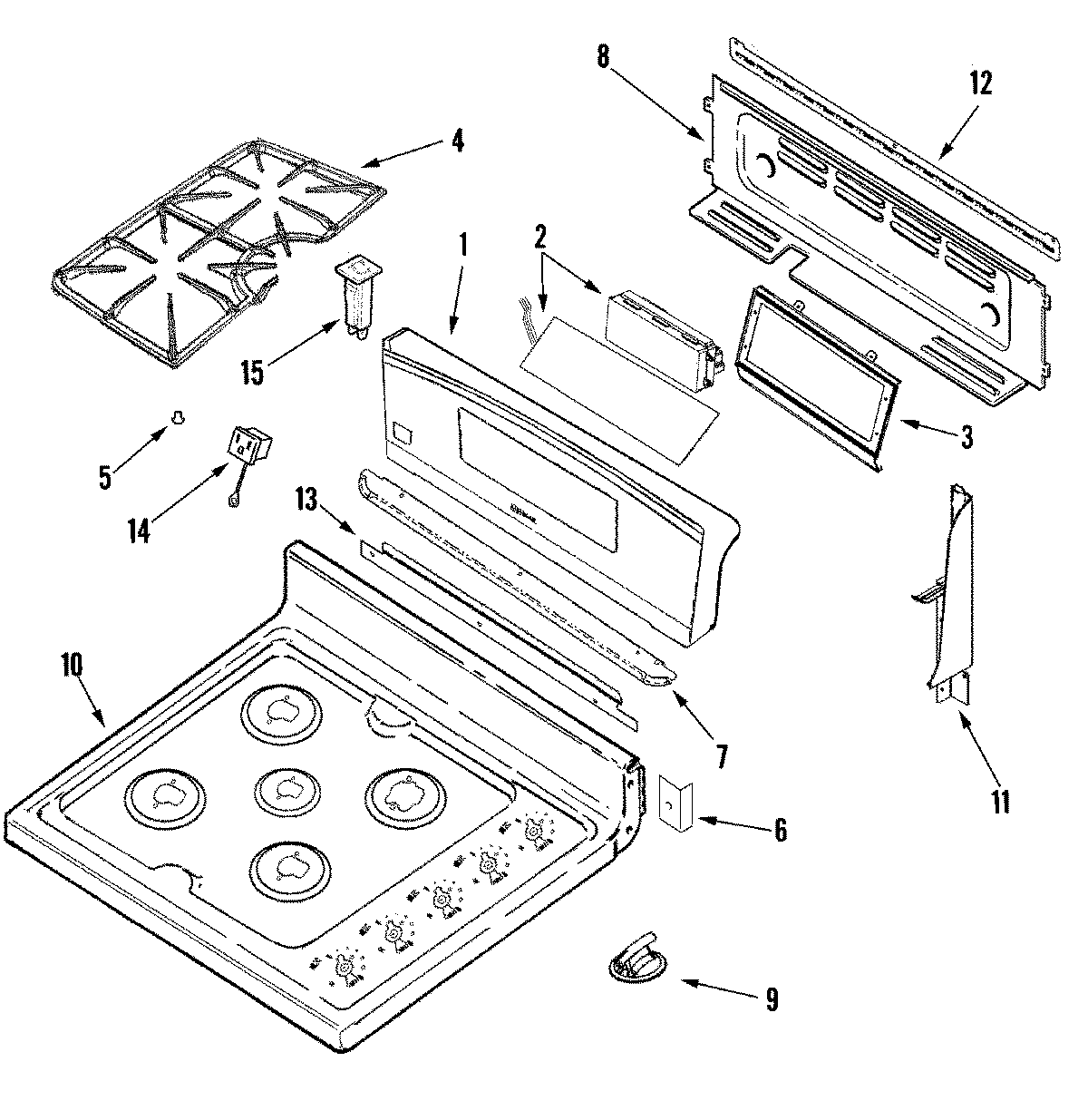

JDR8895ACW 02 – CONTROL PANEL/TOP ASSEMBLY

JDR8895ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

JDR8895ACW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010585
2WP5701M796-60 Whirlpool Oven Control Board
3MAY 74010217
4MAY 74010209
5W10919249 Whirlpool Burner Grate Foot
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6MAY 74010106
7MAY 74010184
7MAY 74007582
8SCREW (8BX3/8-NI)
8MAY 74009943
8WP400021-1 Whirlpool Screw
8SCREW
9WP74010205 Whirlpool Stove Stainless Burner Control Knob
9WP74005934 Whirlpool Grommet
10MAY 74010179
11WP74003976 Whirlpool Screw
11MAY 74010212
11MAY 74010211
11WP98008544 Whirlpool Screw Assembly
12MAY 74009701
13MAY 74010215
13MAY 7101P147-60
14MAY 71003069
15MAY 74009322
