JDR8895ACW 03 – DOOR (LOWER)

JDR8895ACW 03 – DOOR (LOWER)

Written by

in

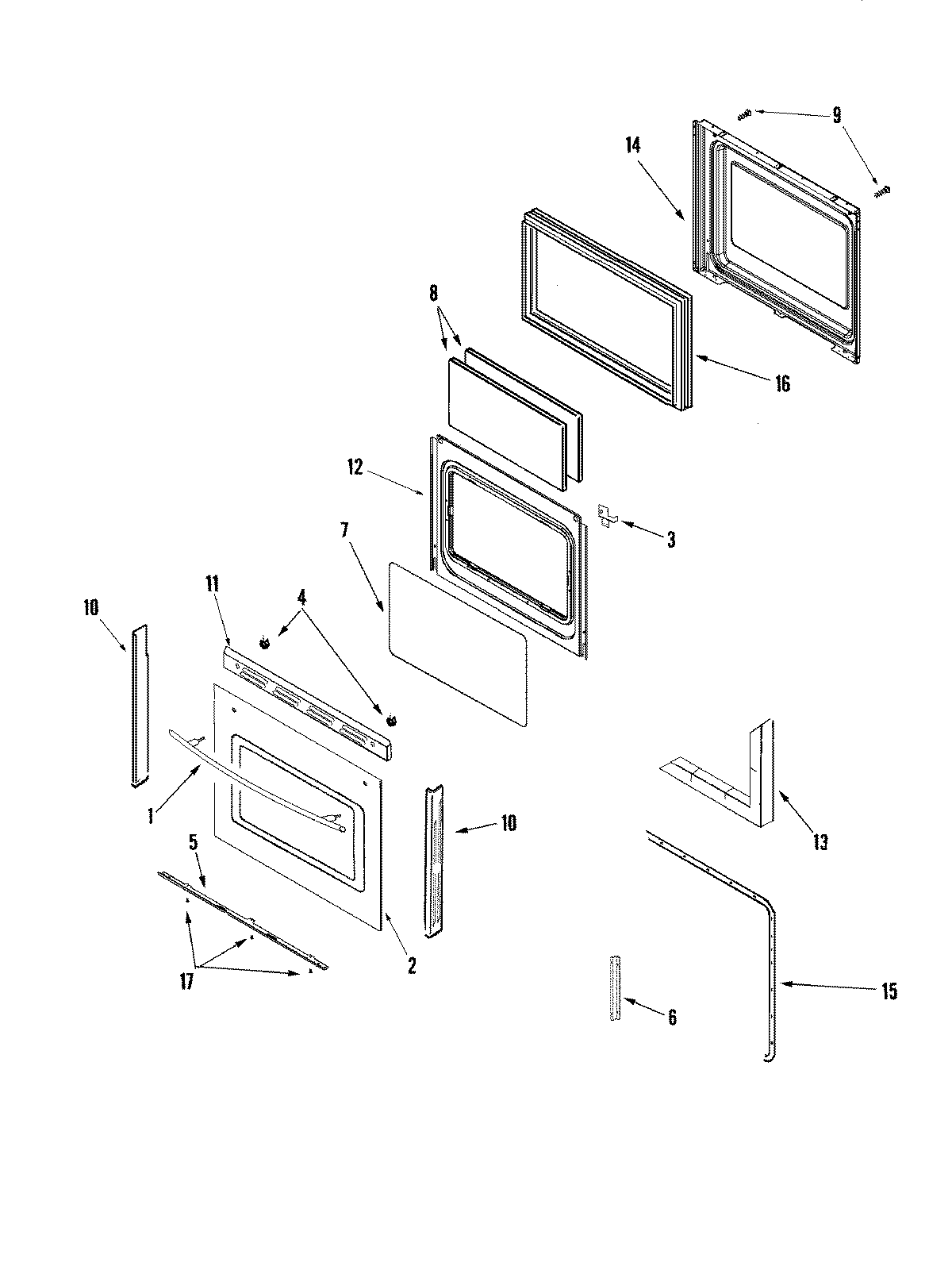

JDR8895ACW 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74008914
1MAY 74008920
2MAY 12002477
33801F831-45 Whirlpool Bracket Assembly
3SCREW (10ABX1/4P TR ZN)
33801F832-45 Whirlpool Bracket
4MAY 715634
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10WP74009014 Whirlpool Double Tape
10WP3608F116-71 Whirlpool Door Trim
10WP3608F117-71 Whirlpool Door Trim
11WP98008544 Whirlpool Screw Assembly
11TAPE, FOIL 29“ X 2“
11MAY 74010186
12MAY 74009502
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
13INSULATION, OVEN DOOR
14MAY 74003642
14NUT, SNAP (ROUND-WHT)
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16SCREW
16FRAME, GLASS
16SCREW, 8 X 1/2
163801F886-51 Whirlpool Mounting Bracket
