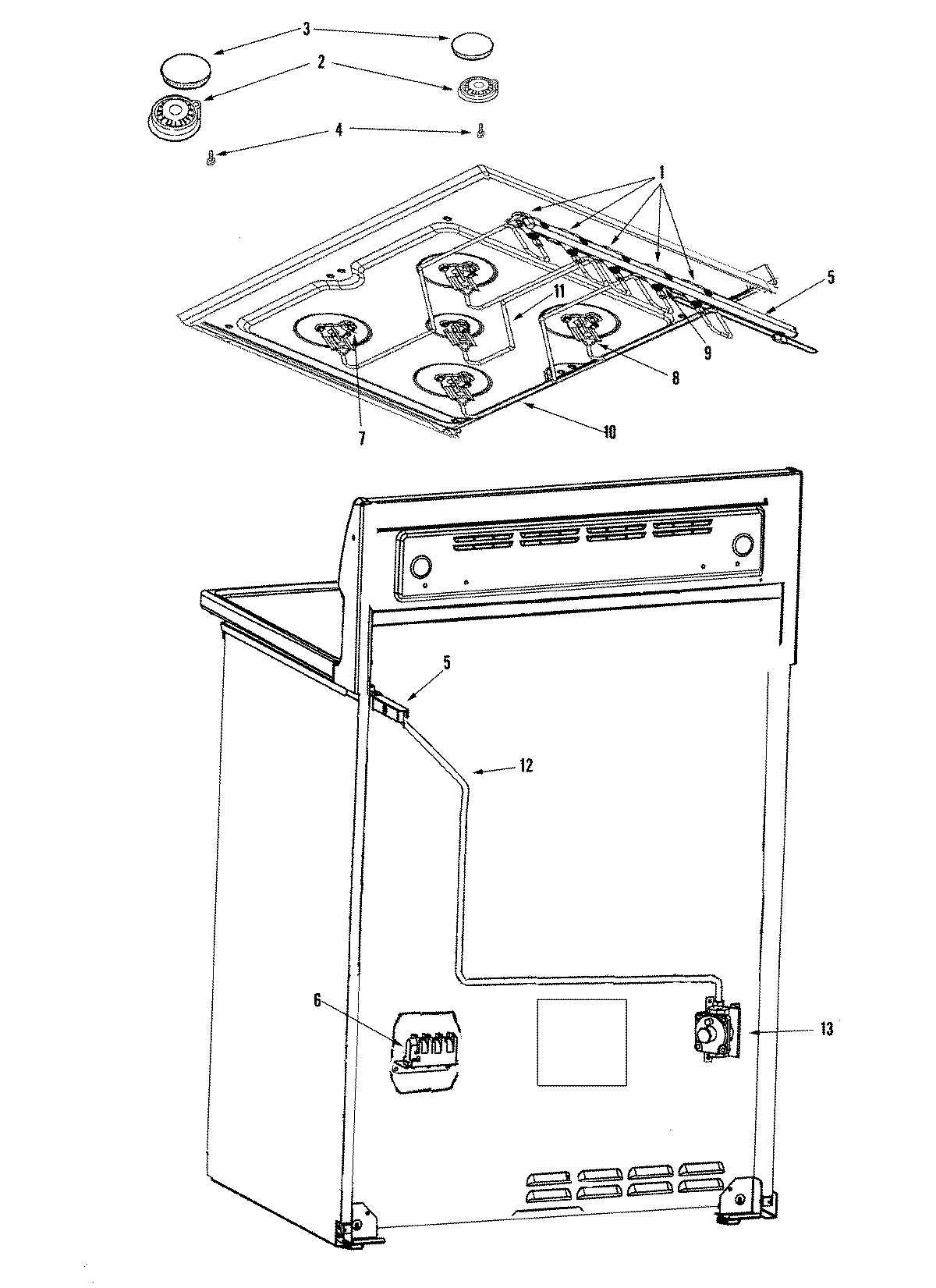

JDR8895ACW 05 – GAS CONTROLS

Products

Position	Product
1	MAY 12002269
1	MAY 12002268
1	12002270 Whirlpool Valve Kit and Screw 16K
2	WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
2	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
2	WPW10406878 Whirlpool Burner Base (16K)
2	WPW10406243 Whirlpool Burner Head Auxiliary 6K
3	WP8284669 Whirlpool Burner Cap
3	MAY 74010189
3	CAP, BURNER (EX-LRG/BLK)
3	Cap, Burner (12.5K RF, LR)
4	WP400021-1 Whirlpool Screw
5	MAY 74009906
6	SCREW
6	74009098 Whirlpool Spark Module
7	WP8523793 Whirlpool Oven Surface Igniter
8	WP7527P028-60 Whirlpool Dishwasher Orifice Holder
8	WP74007961 Whirlpool Holder
8	WP7527P023-60 Whirlpool Orifice Holder
8	WP7527P021-60 Whirlpool Orifice Holder
9	12002792 Whirlpool Oven Cooktop Igniter Switch with Shield Assembly
9	MAY 74010105
10	MAY 74009240
11	MAY 74010097
11	Tubing, (Center)
12	MAY 74010206
13	MAY 74007387
