JDR8895BAS13 02 – CONTROL PANEL PARTS – Aparts

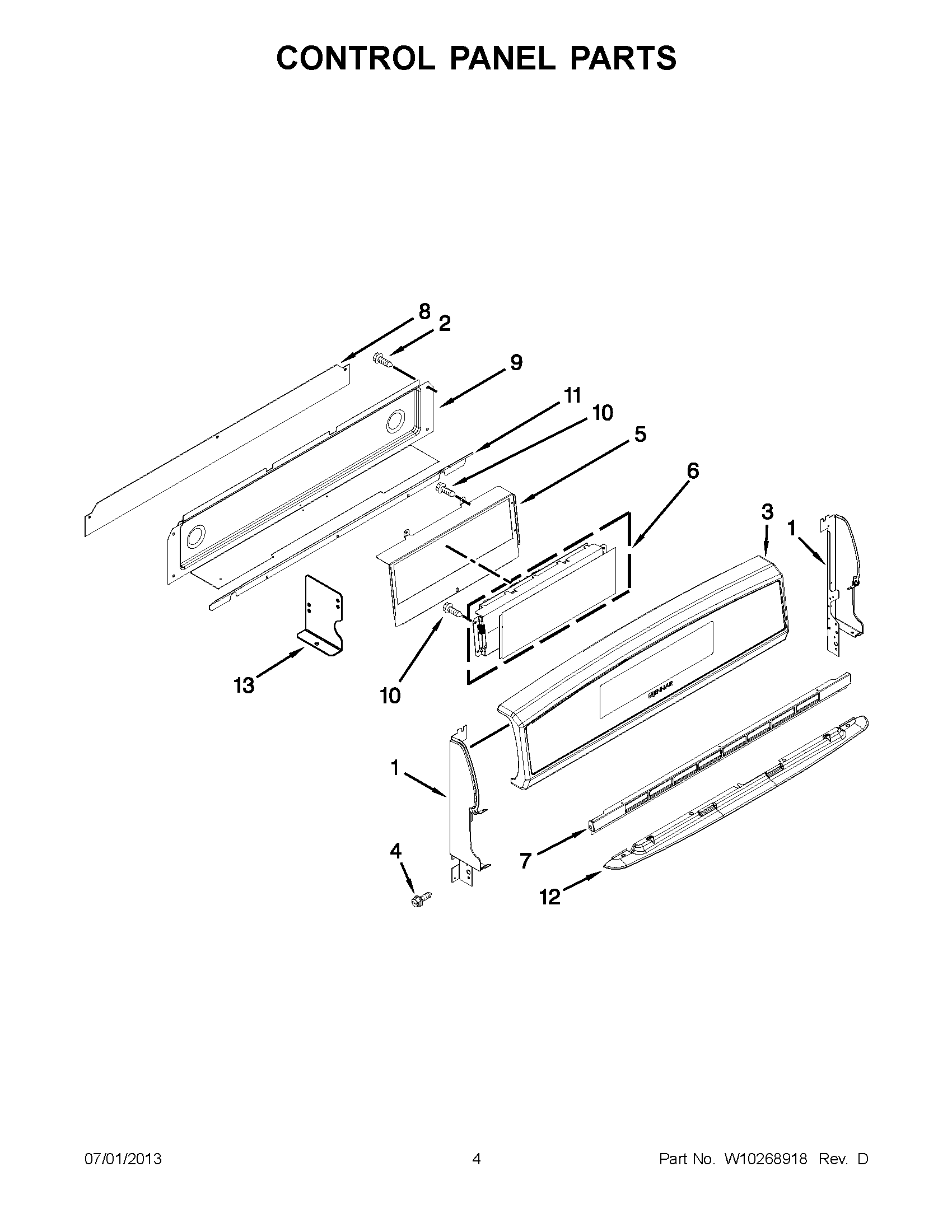

JDR8895BAS13 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 3807F733-70
1	MAY 3807F734-70
2	MAY 7101P434-60
3	Panel, Control (Incl. Overlay)
3	MAY 2602N183-09
3	MAY 2602N183-81
4	Screw (2) (Black)
5	MAY 3801F926-51
6	CONTROL ASSY. (INCL. MEMBRANE)
7	MAY 3608F124-09
8	MAY 3604F387-51
9	MAY 4005F804-51
10	MAY 7101P500-60
11	MAY 3604F438-51
12	MAY 3604F393-09
13	BRACKET, VENT EXT.
