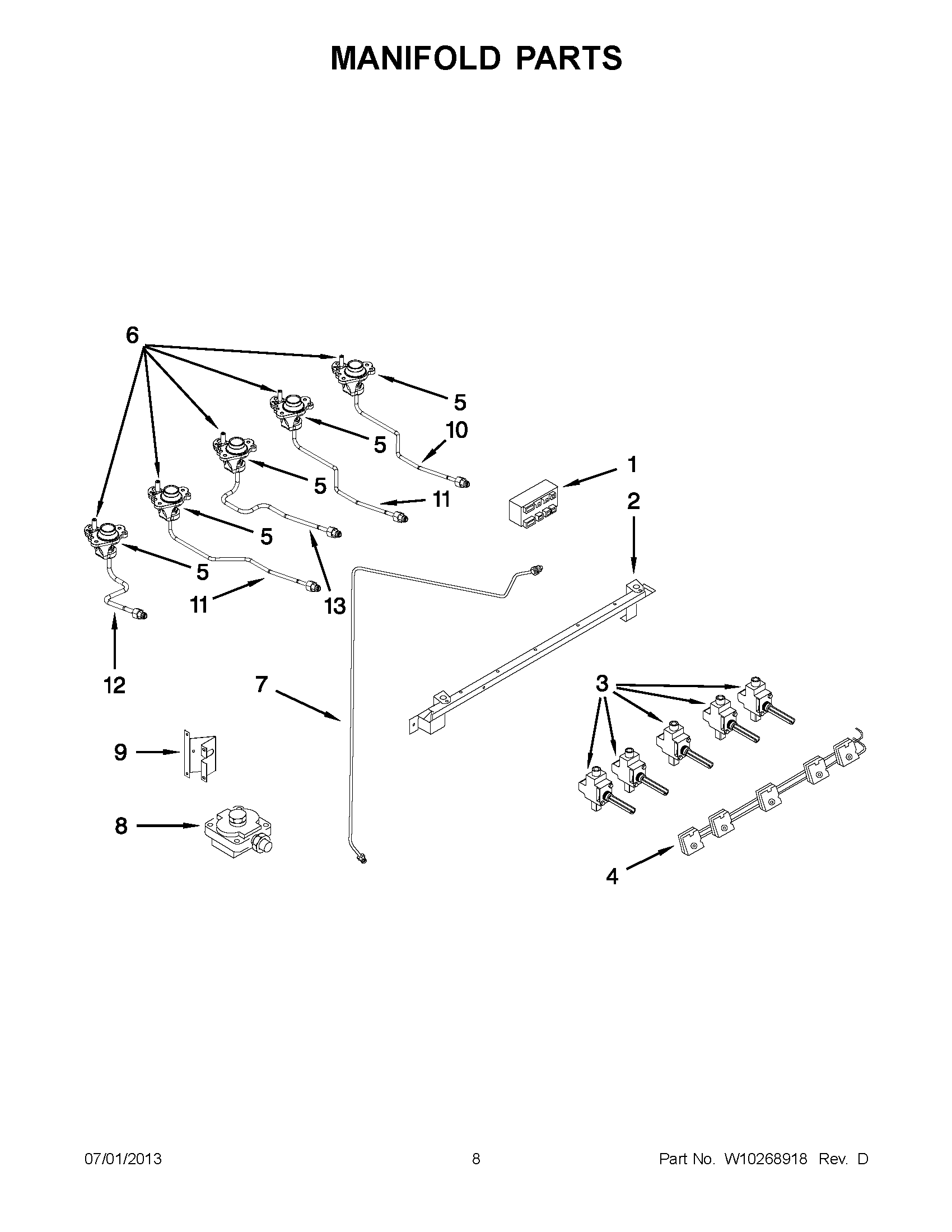

JDR8895BAS13 04 – MANIFOLD PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATOR, ORIFICE IGNITOR
NI	KIT, LP GAS CONVERSION ORIFICE
1	MAY 7431P053-60
2	MAY 7513P531-60
3	VALVE ((LF))
3	VALVE (LR/RR/RF)
3	VALVE (CENTER 5K (1))
4	HARNESS, SWITCH/COMPLETE ASSY
5	HOLDER, ORIFICE (LR/RR/RF)
5	HOLDER, ORIFICE ((LF))
5	HOLDER, ORIFICE ((RR))
5	ORIFICE HOLDER (12K) (LEFT FRONT)
6	Ignitor, Top Burner (4)
7	MAY 7506P424-60
8	MAY 7510P089-60
9	MAY 3801F691-51
10	Tubing (RF)
11	Tubing (LR & LF)
12	TUBING, TOP BURNER
13	TUBING (CENTER)
