JDR8895BAS13 07 – LOWER DOOR PARTS – Aparts

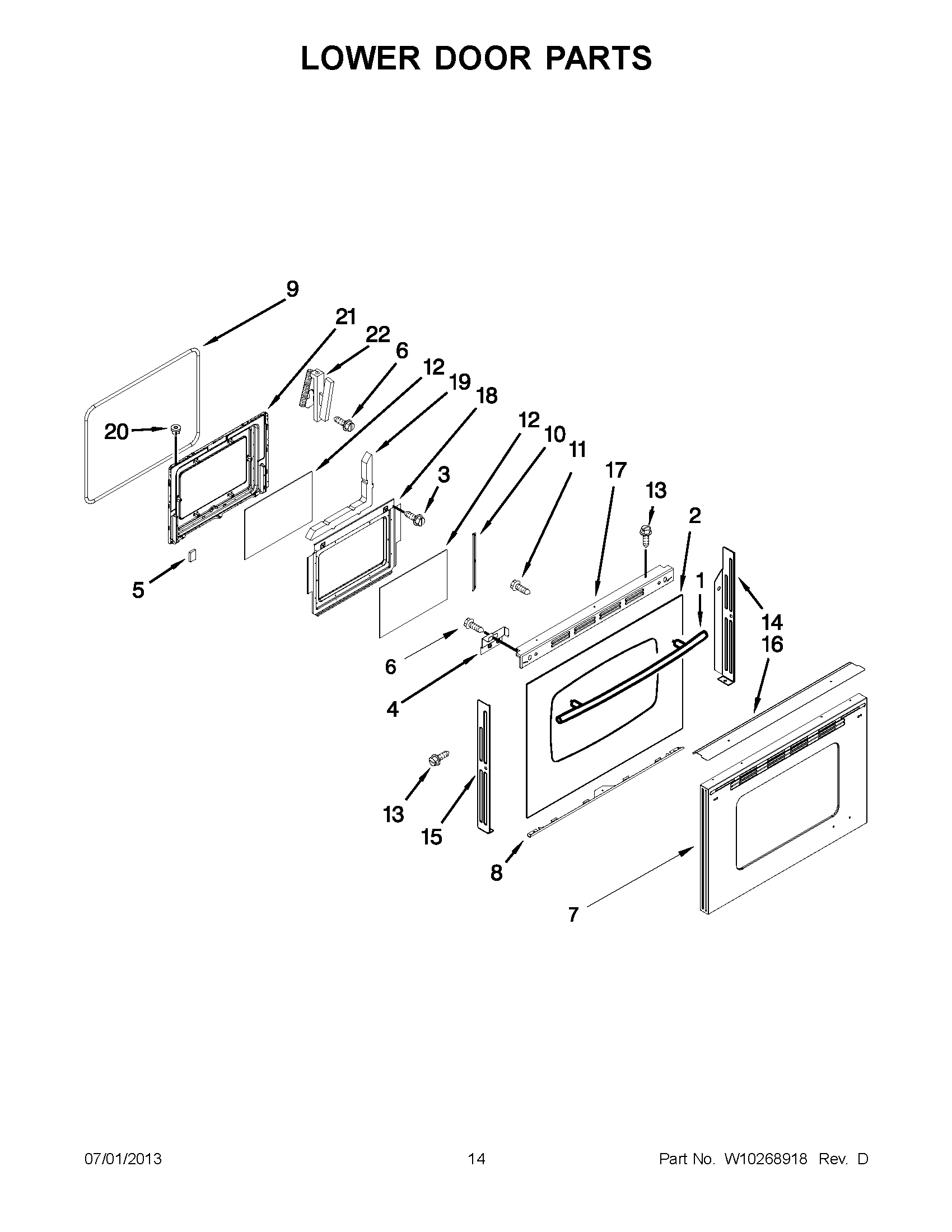

JDR8895BAS13 07 – LOWER DOOR PARTS

Products

Position	Product
1	HANDLE, DOOR (WHITE)
2	MAY 7902P802-60
2	MAY 7902P742-60
3	MAY 7101P388-60
4	MAY 3801F832-45
4	MAY 3801F831-45
5	MAY 8010P130-60
6	SCREW (10ABX1/4P TR ZN)
7	Panel, Door
8	MAY 3807F708-70
8	MAY 3807F708-71
9	MAY W10162384
10	BRACKET, INNER GLASS
11	MAY 7101P376-60
12	Glass, Inner
13	Screw (2) (Black)
14	MAY 3608F116-70
14	MAY 3608F116-71
15	MAY 3608F117-71
15	MAY 3608F117-70
16	MAY 3604F441-51
17	MAY 3608F142-70
17	MAY 3608F142-71
18	MAY 3601F373-51
19	MAY 7002P246-60
20	MAY 7103P141-60
20	NUT, SNAP (ROUND-WHT)
21	MAY 2402W312-19
22	MAY 7106P141-60
