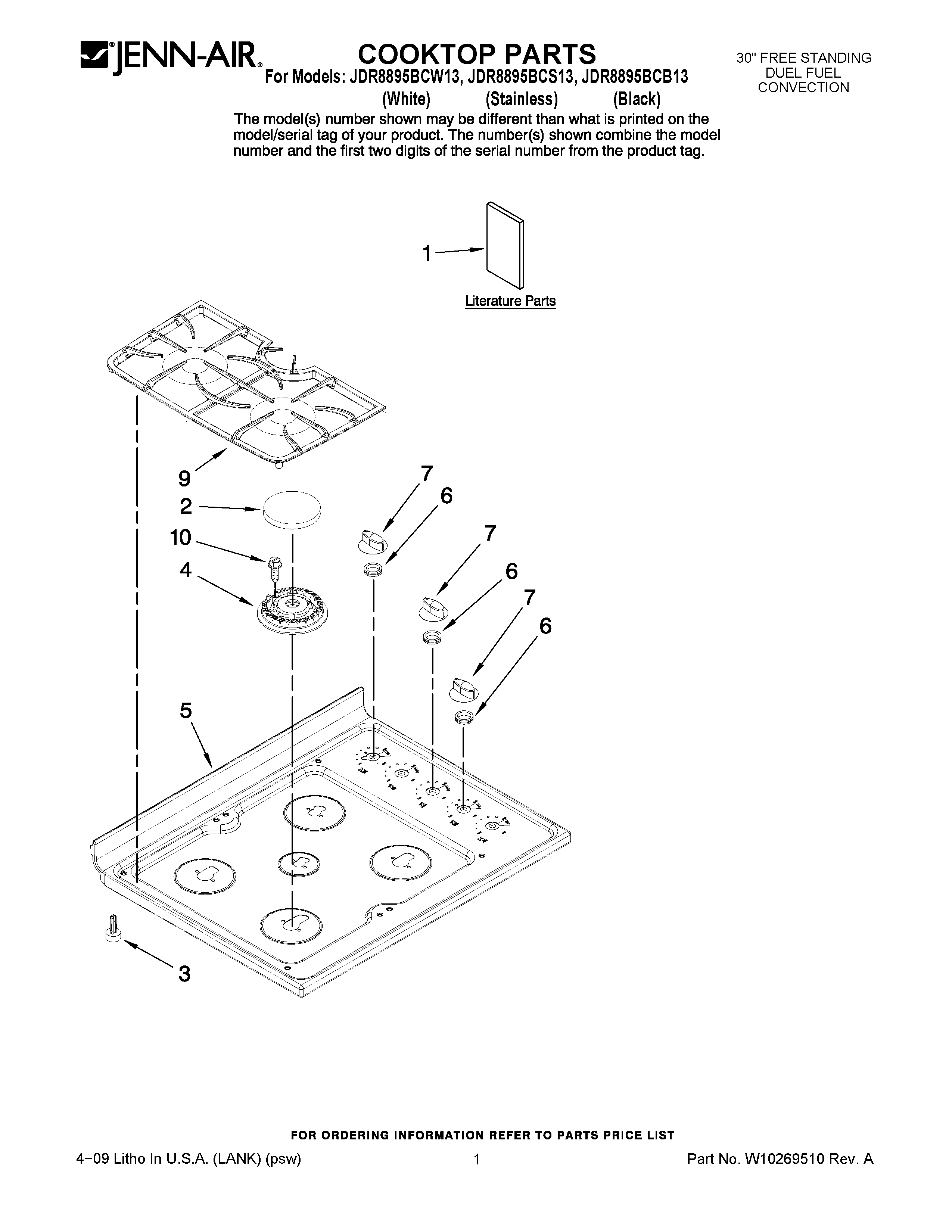

JDR8895BCW13 01 – COOKTOP PARTS

JDR8895BCW13 01 – COOKTOP PARTS

Written by

in

JDR8895BCW13 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10162495
1MAY W10162493
2CAP, BURNER (BLACK (LR/RF))
2CAP, BURNER (RF)
2CAP, BURNER (LR)
2CAP, BURNER (RR & LF)
3GLIDE, MAIN TOP
4HEAD, BURNER (RF)
4HEAD, BURNER (LR/RR/LF)
4HEAD, BURNER CTR.
4BURNER (LF,RR)
5MAY W10174900
5MAY W10174901
6GROMMET, KNOB (4)
7MAY W10183665
9GRATE, BURNER (INCL. BUMPERS)
10WP3368921 Whirlpool Screw
