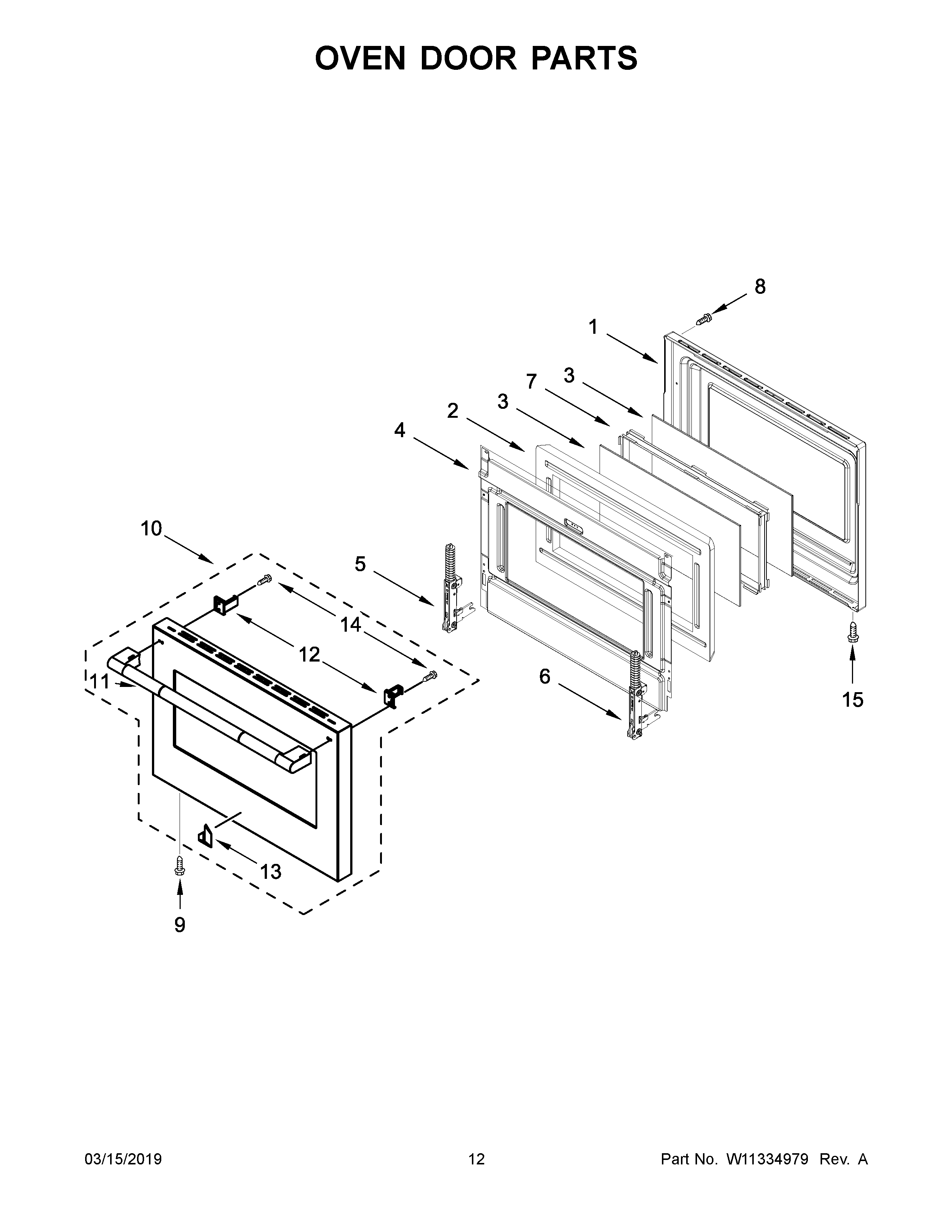

JDRP430HL00 07 – OVEN DOOR PARTS

JDRP430HL00 07 – OVEN DOOR PARTS

Written by

in

JDRP430HL00 07 – OVEN DOOR PARTS

Products

PositionProduct
1LINER, DOOR
2MAY W10321285
3GLASS, INNER
4RETAINER, GLASS
5HINGE, DOOR (LEFT)
6HINGE, DOOR (RIGHT)
7FRAME, GLASS
8MAY W10292297
9SCREW
10MAY W10799308
11HANDLE, DOOR
12BRACKET, HANDLE
13BADGE (STAINLESS)
14SCREW, HANDLE
15MAY W10607120
