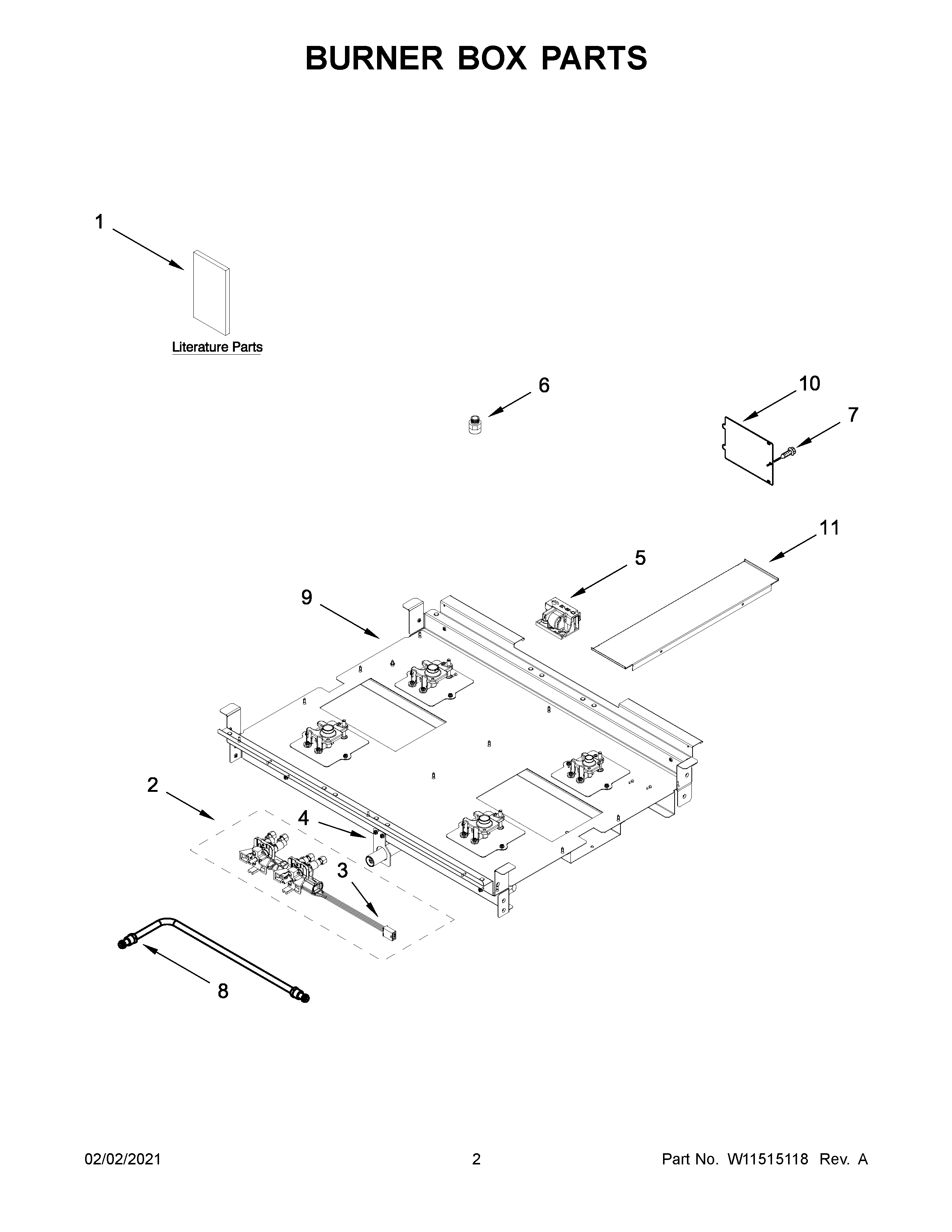

JDRP430HL01 02 – BURNER BOX PARTS

JDRP430HL01 02 – BURNER BOX PARTS

Written by

in

JDRP430HL01 02 – BURNER BOX PARTS

Products

PositionProduct
NIHARNESS, MAIN (30")
NIWP9759877 Whirlpool Retainer
NIW11317791 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NICORD, POWER
NIW11428599 Whirlpool Conversion Kit
NICABINET (NOT A SERVICEABLE PART)
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NI4450800 Whirlpool Oven Screw
1GUIDE, USE AND CARE
1BINSTRUCTIONS, INSTALLATION
1CGUIDE, INTERNET CONNECTIVITY
1FSHEET, TECH
1AGUIDE, QUICK START
1EDIAGRAM, WIRING (OVEN)
1DDIAGRAM, WIRING (COOKTOP)
2W11320025 Whirlpool Manifold
2AW11320019 Whirlpool Manifold
3W11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
64453116 Whirlpool Oven Adapter
7SCREW
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
10W10115843 Whirlpool Access Cover
11FILLER, COOKTOP
