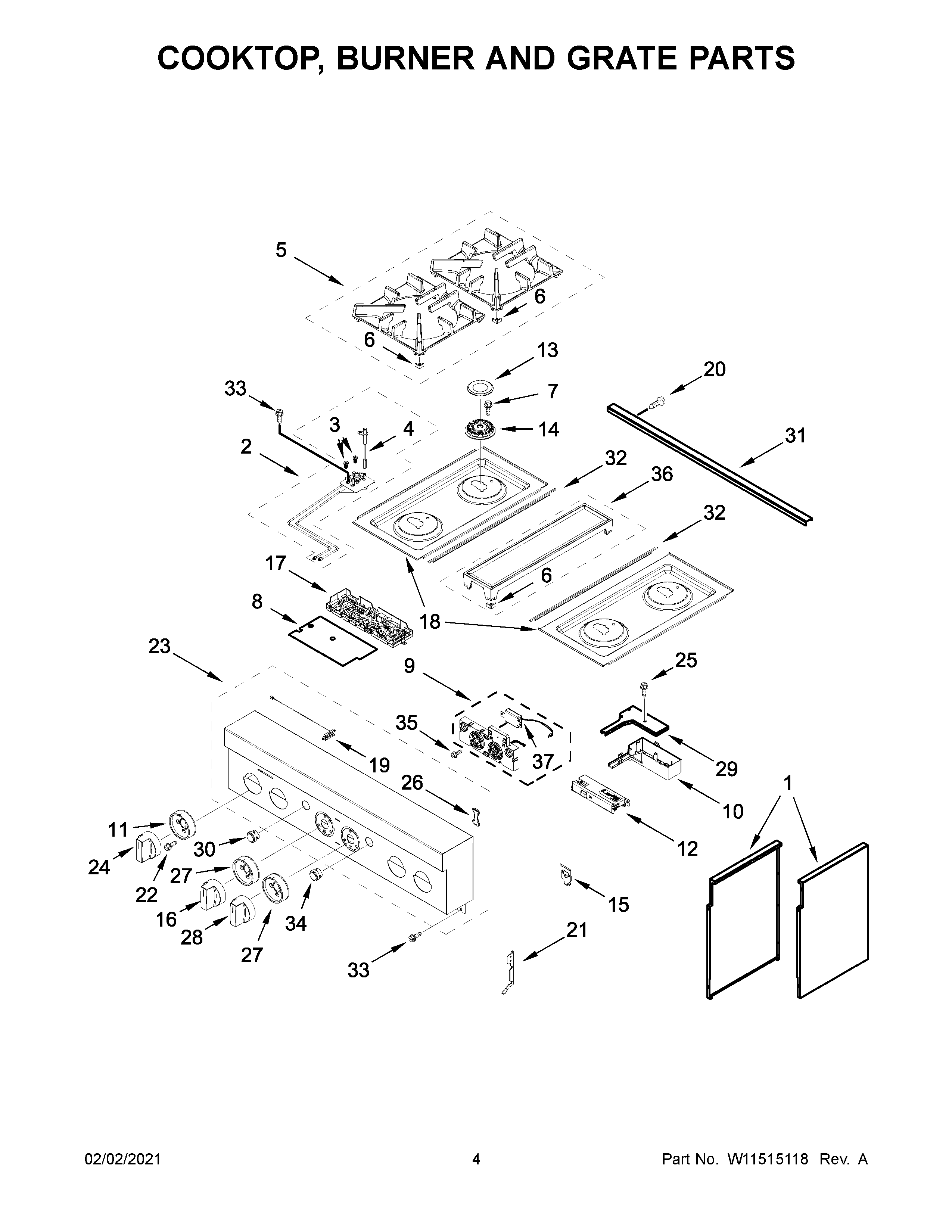

JDRP430HL01 03 – COOKTOP, BURNER AND GRATE PARTS

JDRP430HL01 03 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JDRP430HL01 03 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1W11333179 Whirlpool Side Assembly
1AW11333303 Whirlpool Side Complete Assembly
2BW11333307 Whirlpool Orifice Holder
2W11333305 Whirlpool Holder Orifice
2AW11333306 Whirlpool Orifice Holder Assembly
2CW11333309 Whirlpool Orifice Holder
3CW11661909 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
3DW10892429 Whirlpool Orifice Spud
4AW11238756 Whirlpool Surface Igniter
4W11573760 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492271-includeCORE Whirlpool W11492271 Refrigerator Electronic Control Board + Core
10COVER, WIFI OUTER
11BEZEL-KNOB
12W11234290 Whirlpool Electronic Control Board
13W11328971 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11596839 Whirlpool Knob
17W11335270-includeCORE Whirlpool W11335270 Washer Electronic Control Board + Core
18W11316696 Whirlpool Cooktop
18AW11334155 Whirlpool Cooktop
19W11318855 Whirlpool Antenna
20SCREW
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W11509770 Whirlpool Screw
23W11289589 Whirlpool Control Panel
24W11574368 Whirlpool Knob
25WPL 7101P62460
26WPL W10896369
27W11317499 Whirlpool Knob Bezel
28W11574369 Whirlpool Range Knob
29WPL W11205794
30W11318857 Whirlpool Push Button
31WPL W11156414
32W10271524 Whirlpool Trim Top
33SCREW
34W11319196 Whirlpool Push Button
35WP3400814 Whirlpool Screw
36WPL W11291175
37W11123146 Whirlpool Speaker
