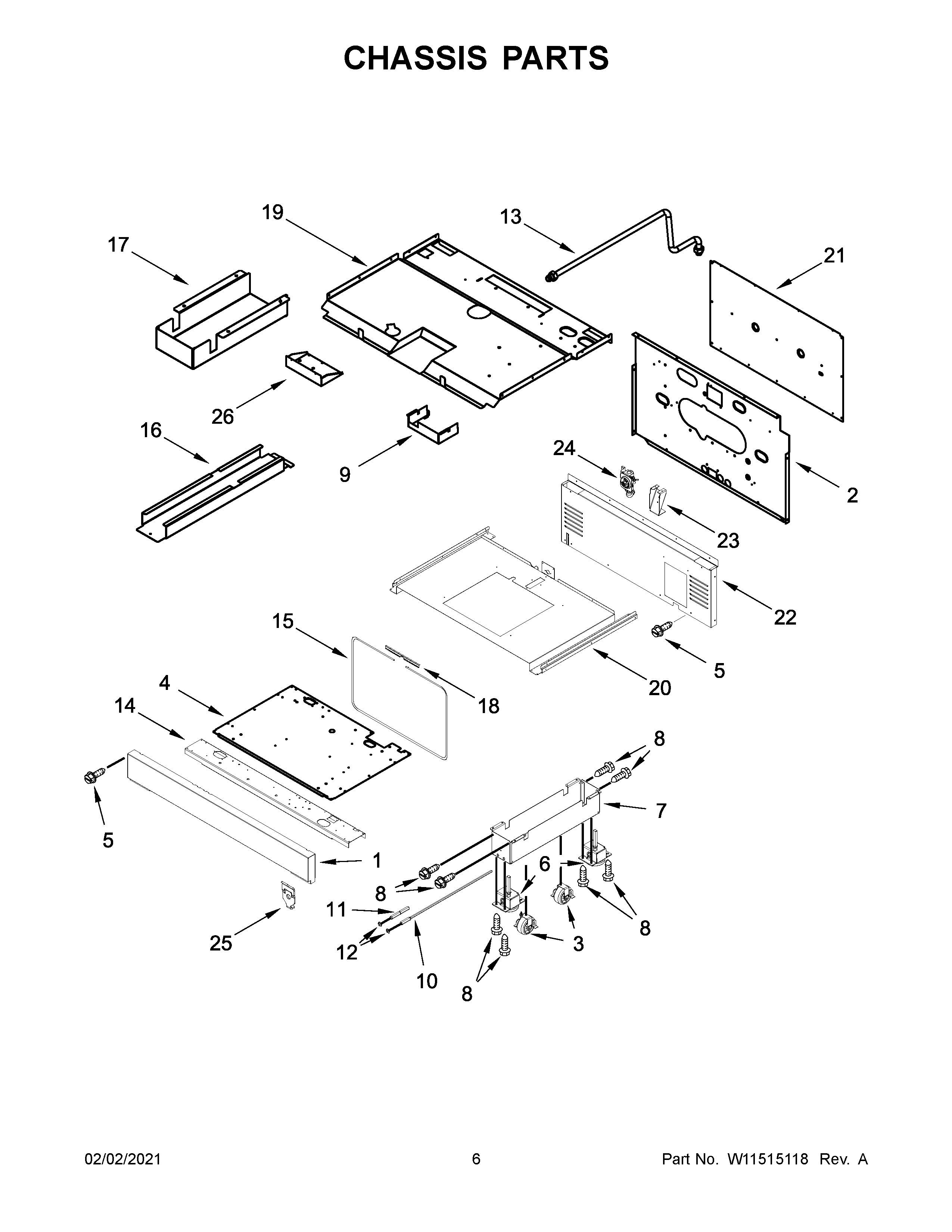

JDRP430HL01 04 – CHASSIS PARTSadmin2025-04-26T11:48:49+00:00JDRP430HL01 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | W11335272 Whirlpool Cover Plate |
| 2 | BACK, CHASSIS |
| 3 | WPW10138054 Whirlpool Refrigerator Cabinet Roller |
| 4 | DUCT, BOTTOM (30 IN) |
| 5 | SCREW |
| 6 | W10859931 Whirlpool Foot Level |
| 7 | W10908710 Whirlpool Mounting Bracket |
| 8 | WP4449743 Whirlpool Screw |
| 9 | CABINET, APPLIANCE MANAGER |
| 10 | W10115869 Whirlpool Shaft |
| 11 | W10115793 Whirlpool Shaft |
| 12 | 489504 Whirlpool Oven Ring |
| 13 | W11320154 Whirlpool Range Gas Tubing |
| 14 | SUPPORT, CHANNEL |
| 15 | W11675844 Whirlpool Oven Gasket |
| 16 | W11050145 Whirlpool HVAC Air Duct |
| 17 | CHANNEL, WIRE |
| 18 | W11362015 Whirlpool Retainer |
| 19 | TOP, CHASSIS |
| 20 | CHASSIS, BOTTOM |
| 21 | PANEL, BACK TOP |
| 22 | PANEL, BACK BOTTOM |
| 23 | W11320155 Whirlpool Mounting Bracket |
| 24 | W11106948 Whirlpool Pressure Regulator |
| 25 | W11318207 Whirlpool Clip Assembly |
| 26 | DRAWER, APPLIANCE MANAGER |
