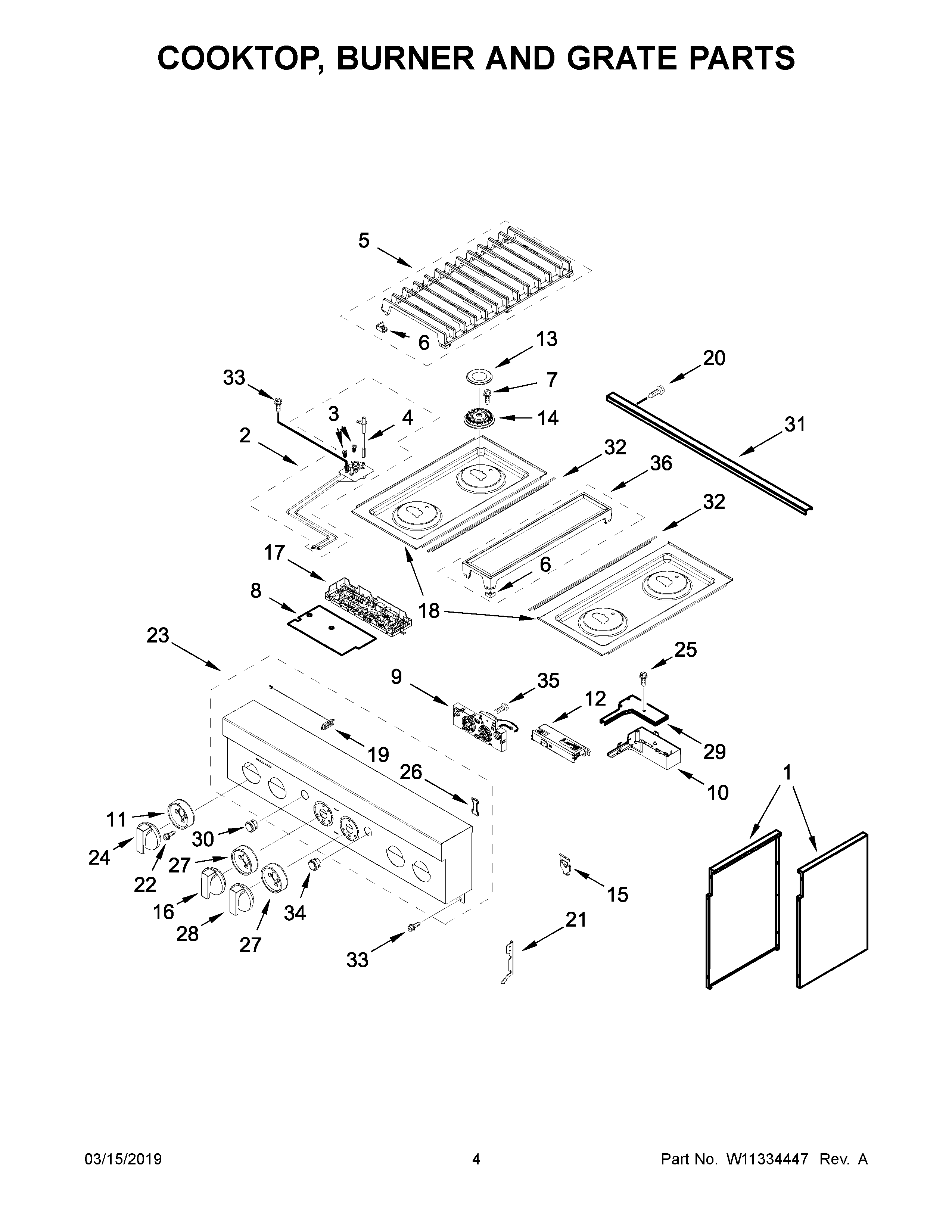

JDRP430HM00 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1A	MAY W11106880
1	MAY W11106881
2	MAY W10892793
2A	MAY W10892494
2B	MAY W10892475
2C	MAY W10892730
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	SCREW
8	BARRIER, APPLIANCE MANAGER
9	MAY W11292567
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	KNOB, OVEN MODE (STAINLESS)
17	MAY W11100264
18	PANEL, COOKTOP (BLACK) (LEFT)
18A	PANEL, COOKTOP (BLACK) (RIGHT)
19	ANTENNA, WIFI
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY W10919387
23	MAY W11253776
24	KNOB, BURNER (STAINLESS)
25	SCREW
26	ASSEMBLY, LIGHT PIPE
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	BUTTON ASSEMBLY, OVEN LIGHT
31	MAY W11156414
32	TRIM, T-STRIP
33	MAY 7101P426- 60
34	BUTTON ASSEMBLY, OVEN START
35	SCREW
36	MAY W11172800
