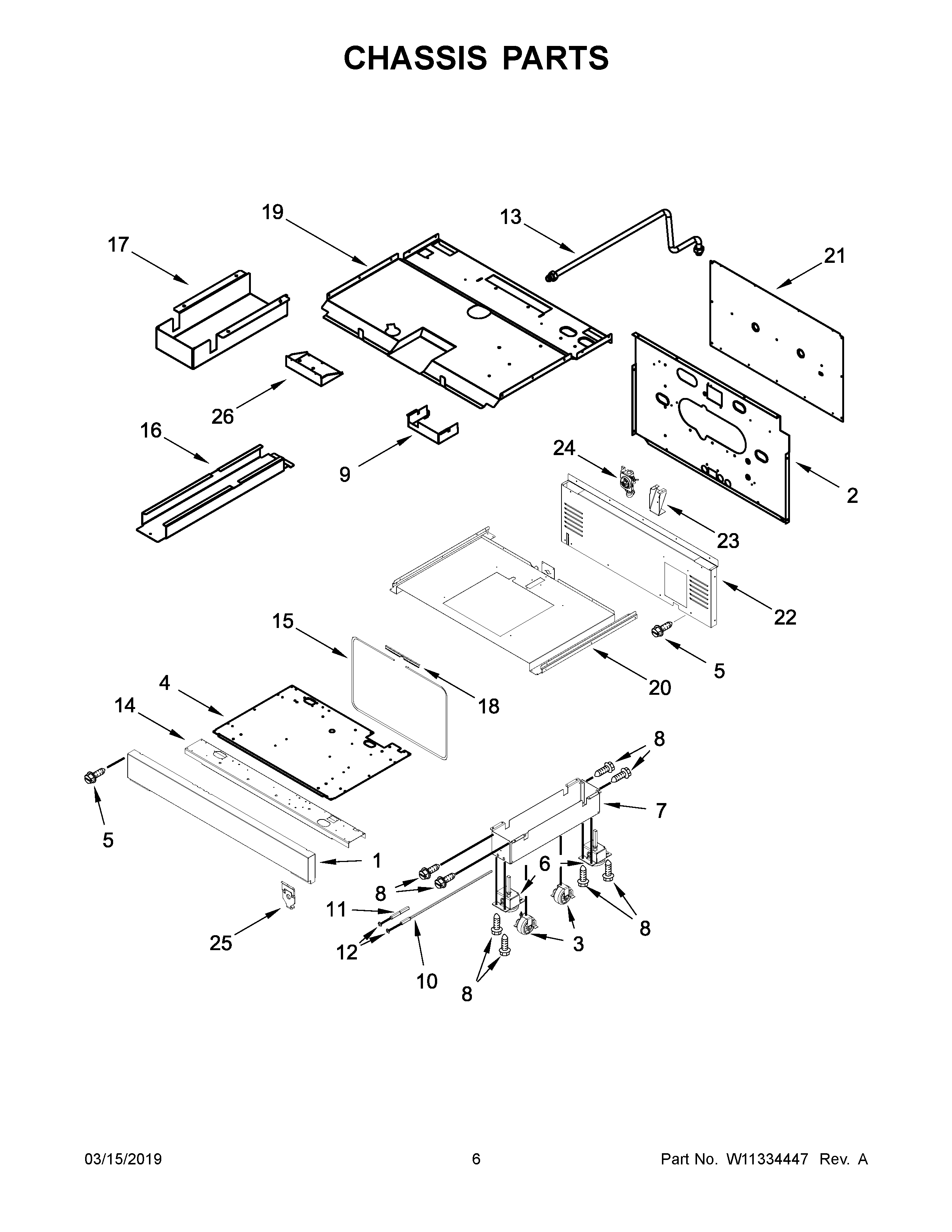

JDRP430HM00 04 – CHASSIS PARTS

JDRP430HM00 04 – CHASSIS PARTS

Written by

in

JDRP430HM00 04 – CHASSIS PARTS

Products

Position	Product
1	MAY W10883795
2	MAY W11105911
3	MAY W10138054
4	MAY W11109583
5	MAY 7101P426- 60
6	FOOT
7	BASE, LEVELING LEG
8	MAY 4449743
9	CABINET, APPLIANCE MANAGER
10	MAY W10115869
11	MAY W10115793
12	RING
13	TUBE, PRESSURE REGULATOR
14	MAY W11087491
15	GASKET, OVEN (30")
16	DUCT-CHASSIS, REAR
17	CHANNEL, WIRE
18	MAY W10216520
19	MAY W11037137
20	MAY W11040802
21	MAY W11103334
22	MAY W11034134
23	BRACKET, PRESSURE REGULATOR
24	REGULATOR, PRESSURE
25	SPRING CLIP, RANGE
26	DRAWER, APPLIANCE MANAGER
