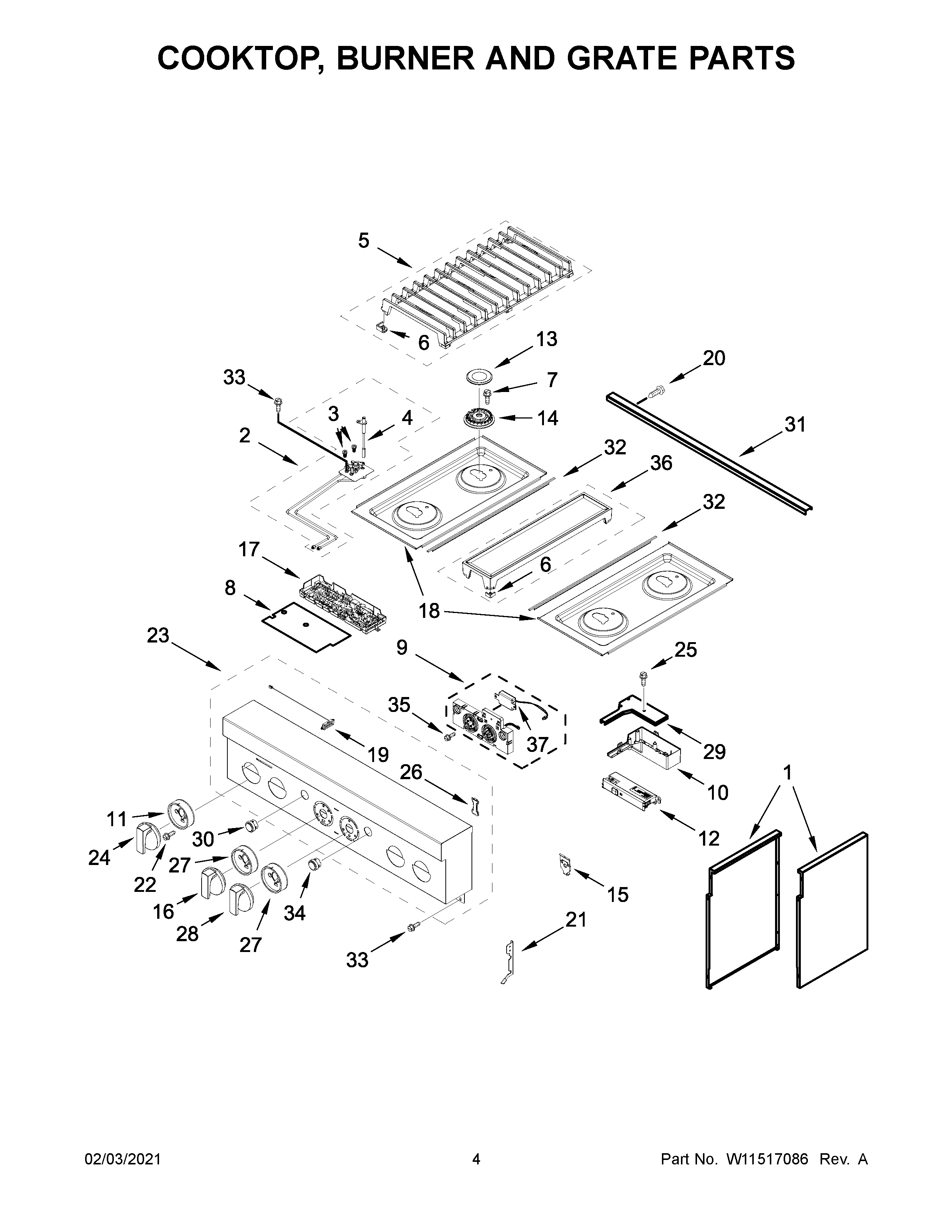

JDRP430HM01 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	W11333179 Whirlpool Side Assembly
1A	W11333303 Whirlpool Side Complete Assembly
2B	W11333307 Whirlpool Orifice Holder
2	W11333305 Whirlpool Holder Orifice
2A	W11333306 Whirlpool Orifice Holder Assembly
2C	W11333309 Whirlpool Orifice Holder
3C	W11661909 Whirlpool Range Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3A	W10892418 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
3D	W10892429 Whirlpool Orifice Spud
4	W11573760 Whirlpool Surface Igniter
4A	W11238756 Whirlpool Surface Igniter
5A	W11516462 Whirlpool Burner Grate
5	W11516449 Whirlpool Grate Burner
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492271-includeCORE Whirlpool W11492271 Refrigerator Electronic Control Board + Core
10	COVER, WIFI OUTER
11	W11317889 Whirlpool Knob Bezel
12	W11234290 Whirlpool Electronic Control Board
13	W11328971 Whirlpool Burner Cap
14A	W11319673 Whirlpool Burner Head
14	W11319683 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11317886 Whirlpool Knob
17	W11335270-includeCORE Whirlpool W11335270 Washer Electronic Control Board + Core
18	W11316700 Whirlpool Cooktop
18A	PANEL, COOKTOP (BLACK (RIGHT))
19	W11318855 Whirlpool Antenna
20	SCREW
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	W11509770 Whirlpool Screw
23	W11289589 Whirlpool Control Panel
24	W11317537 Whirlpool Knob
25	WPL 7101P62460
26	WPL W10896369
27	W11317892 Whirlpool Bezel Knob
28	W11317539 Whirlpool Knob
29	WPL W11205794
30	W11318857 Whirlpool Push Button
31	WPL W11156414
32	W10271524 Whirlpool Trim Top
33	SCREW
34	W11319196 Whirlpool Push Button
35	WP3400814 Whirlpool Screw
36	W11516488 Whirlpool Burner Grate Assembly
37	W11123146 Whirlpool Speaker
