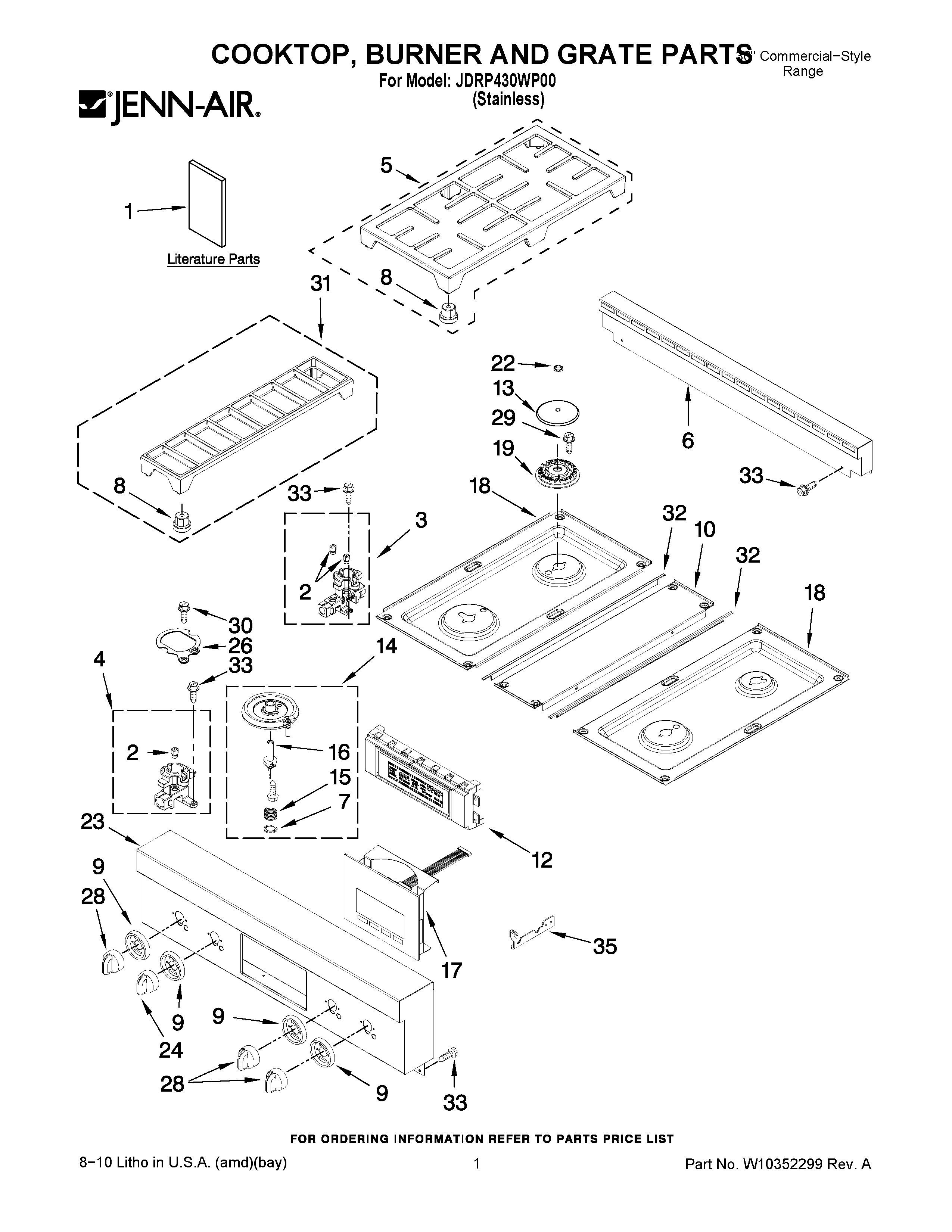

JDRP430WP00 01 – COOKTOP, BURNER AND GRATE PARTS

JDRP430WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JDRP430WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10145393
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10295367
1MAY W10294839
1MAY W10294843
2ORIFICE (CR)
2ORIFICE (L)
2ORIFICE (LF)
2ORIFICE (LR & RF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (LR & RF)
4ORIFICE HOLDER (RR)
5MAY W10276551
6MAY W10269218
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10MAY W10189105
12MAY W10344181
13CAP, BURNER (RR)
13CAP, BURNER (LF)
13CAP, BURNER (LR & RF)
14BASE, BURNER (LF)
14BASE, BURNER (LF)
14BASE, BURNER (LR & RF)
15SPRING, ELECTRODE (RR)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (CR)
16ELECTRODE (LF)
16ELECTRODE (LR & RF)
17ASSEMBLY, POWER SUPPLY
18MAY W10189104
18MAY W10282192
19BURNER HEAD (LR & RF)
19BURNER HEAD (LF)
19BURNER HEAD (RR)
22MAY W10115953
23MAY W10295784
24KNOB, CONTROL LF
26MAY 8286930
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30MAY 3196160
31MAY W10276495
32TRIM, T-STRIP
33SCREW (8BX3/8-NI)
35BRACKET,CONSOLE (RIGHT)
35BRACKET,CONSOLE (LEFT)
