JDRP430WP00 03 – OVEN PARTS

JDRP430WP00 03 – OVEN PARTS

Written by

in

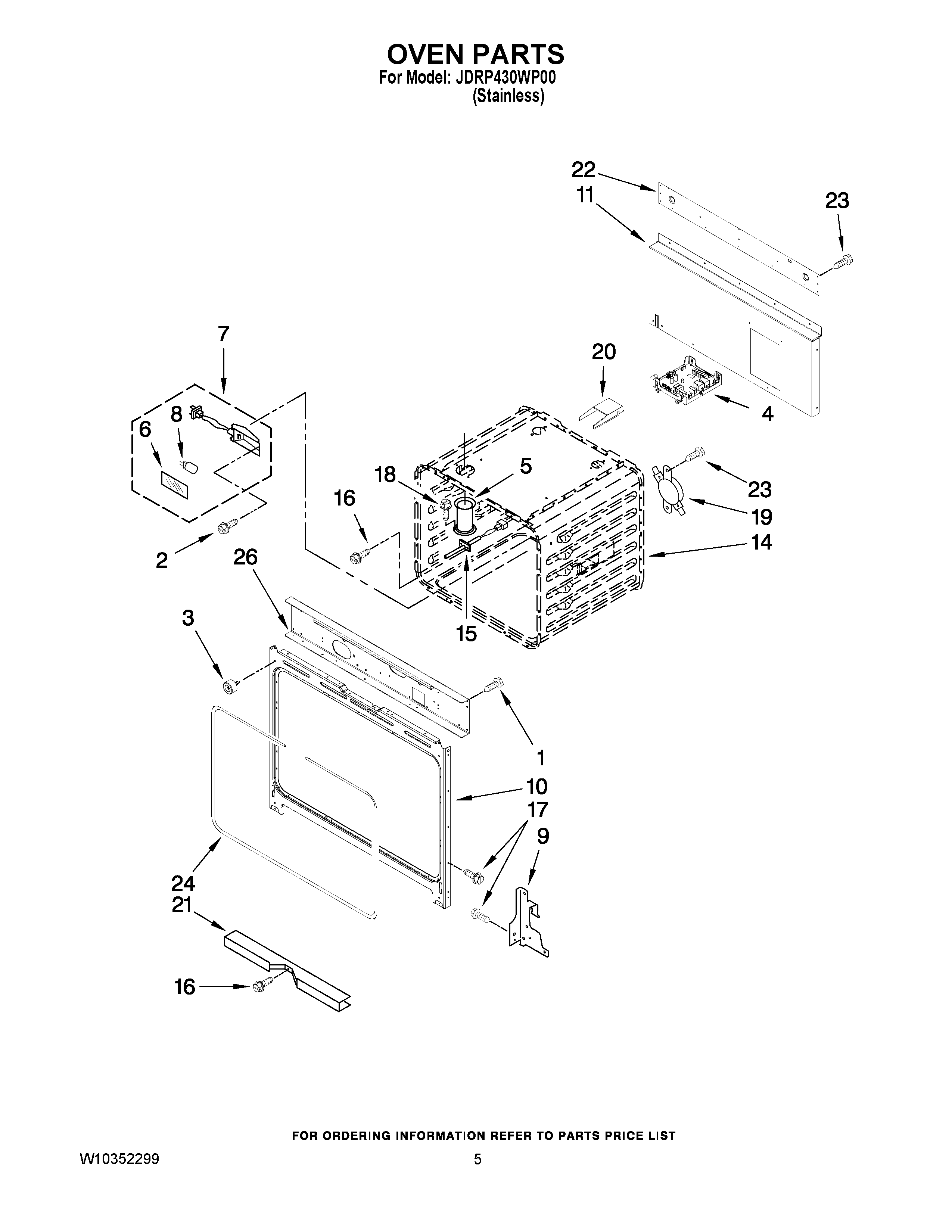

JDRP430WP00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP, 30“
NI	INSULATION, BACK, 30“
1	MAY 4449743
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10146048
5	MAY W10288061
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455606
9	MAY 4455605
10	MAY W10160866
11	MAY W10145392
14	LINER (NOT A SERVICEABLE PART)
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
20	DRAWER
21	MAY W10157511
22	PANEL, BACK TOP
23	MAY 7101P426- 60
24	MAY W10160890
26	MAY W10145377
