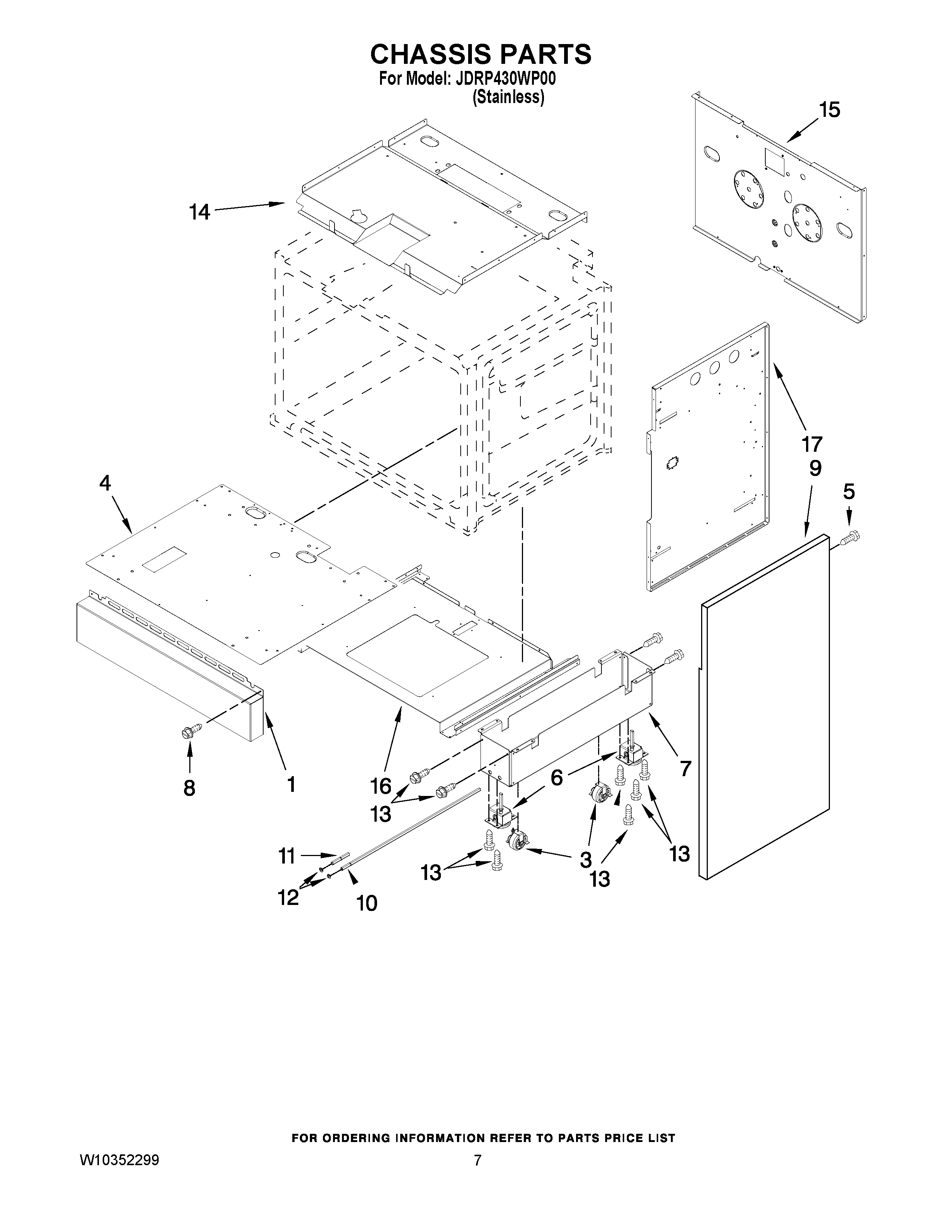

JDRP430WP00 04 – CHASSIS PARTS

Products

Position	Product
1	MAY W10145765
3	MAY W10138054
4	MAY W10145380
6	FOOT
7	BASE, LEVELING
8	Screw
9	SIDE PANEL (LEFT)
9	SIDE PANEL (RIGHT)
10	MAY W10115869
11	MAY W10115793
12	RING
13	MAY 4449743
14	CHASSIS, TOP
15	CHASSIS, BACK
16	BOTTOM, CHASSIS
17	SIDE, CHASSIS (RIGHT)
17	SIDE, CHASSIS (LEFT)
