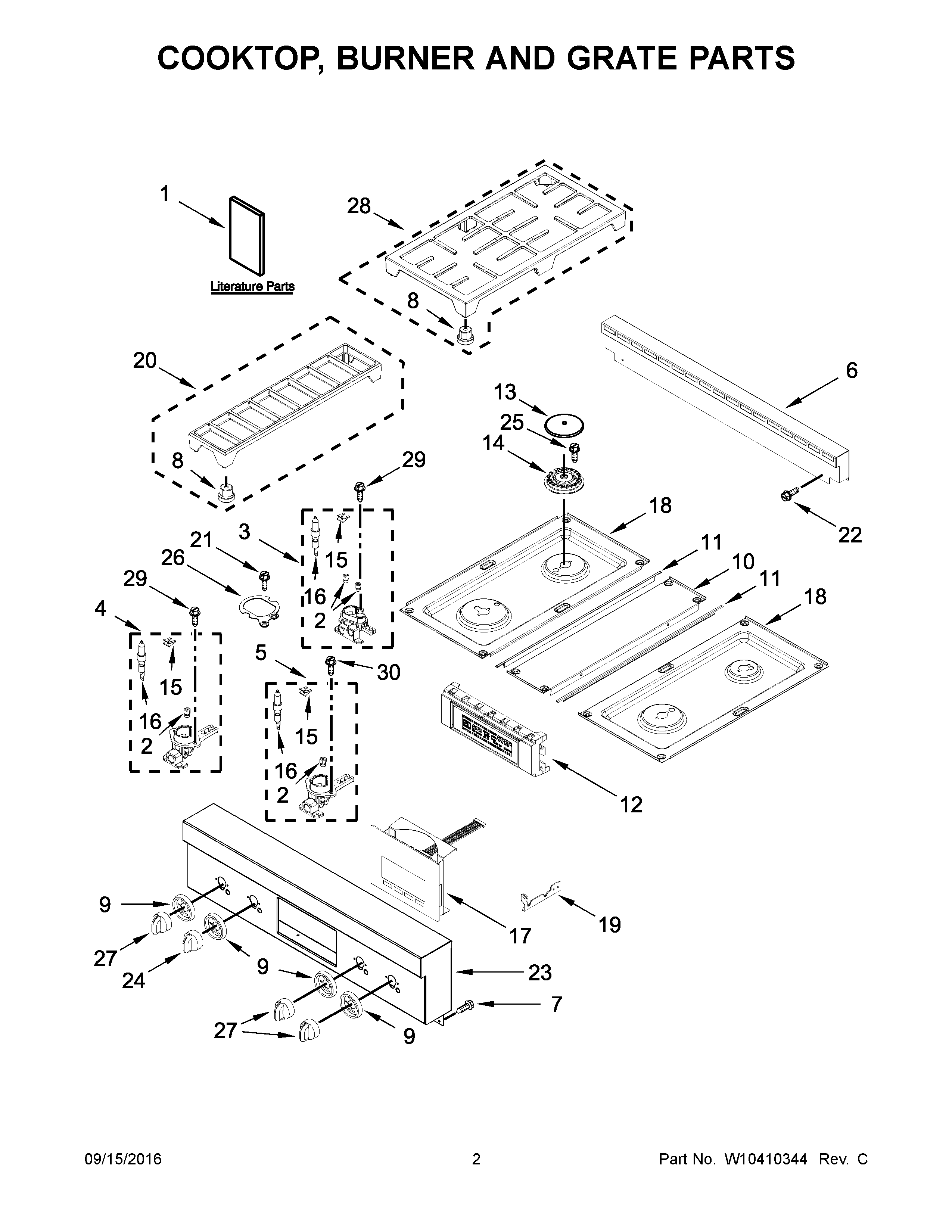

JDRP430WP01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY W10116142
NI	MAY W10830809
NI	MAY W10766100
NI	MAY W10363279
NI	MAY W10368807
NI	MAY W10340850
NI	HARNESS, DOOR LOCK
NI	MAY 4450800
NI	MAY W10183556
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10344051
NI	BRACKET, ANTI-TIP
NI	GROMMET, FLEX
NI	SCREW, ANTI-TIP KIT
NI	Clip, Wire
NI	CLIP, HARNESS
NI	MAY 9759877
NI	MAY W10145988
1A	SHEET, TECH (FRENCH)
1B	MAY W10837387
1C	MAY W10821685
1D	TIPS, SAFE COOKING (ENGLISH)
1E	TIPS, SAFE COOKING (FRENCH)
1	SHEET, TECH (ENGLISH)
2C	ORIFICE (CR)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2A	ORIFICE (LF-LOW)
2	ORIFICE (LF-HIGH)
3	ORIFICE HOLDER (DUAL-LF)
4	MAY W10364556
5	ORIFICE HOLDER (RR)
6	MAY W10269218
7	MAY 3400099
8	PAD, GRATE
9	MAY W10276494
10	MAY W10189105
11	TRIM, T-STRIP
12	ASSEMBLY, KEYPAD
13	MAY W10256034
13B	MAY W10364463
13A	MAY W10256032
14B	BURNER HEAD (RR)
14A	BURNER, HEAD (LR,RF)
14	SPREADER, FLAME (20K) (LEFT FRONT AND RIGHT FRONT)
15A	SPRING, ELECTRODE (RR)
15	MAY W10256046
16A	ELECTRODE (CR)
16	ELECTRODE (LR, RF & RR)
17	ASSEMBLY, POWER SUPPLY
18A	MAY W10352968
18	MAY W10352969
19A	BRACKET,CONSOLE (RIGHT)
19	BRACKET,CONSOLE (LEFT)
20	MAY W10276495
21	MAY 3196160
22	SCREW (8BX3/8-NI)
23	PANEL, CONTROL
24	KNOB, CONTROL LF
25	SCREW
26	MAY 8286930
27	KNOB, CONTROL (LR, RF) LR, RF
28	MAY W10276551
29	SCREW (ALL BUT CENTER REAR)
30	MAY 8286921
