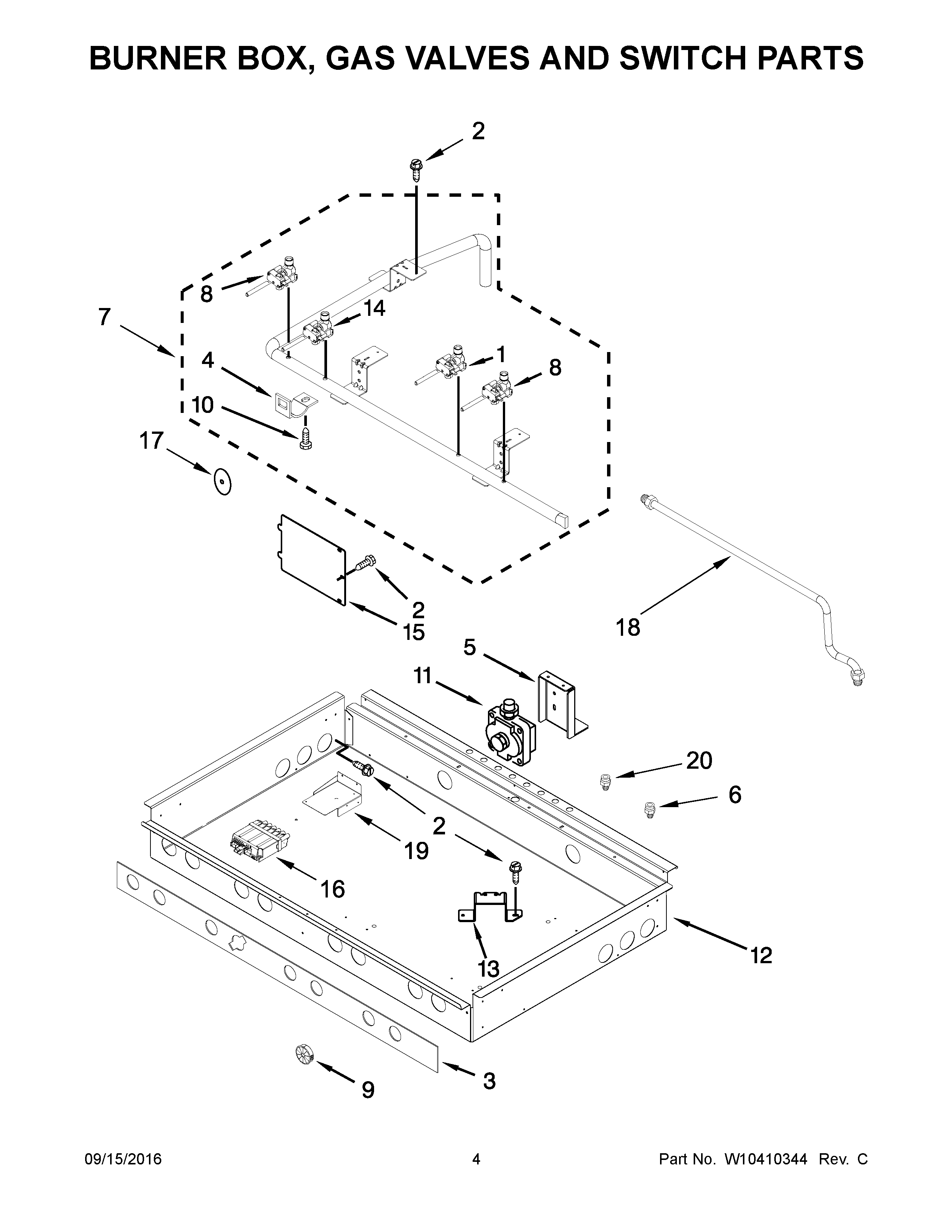

JDRP430WP01 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NITUBING, GAS (LR)
NITUBING, GAS (LF-LEFT)
NIMAY W10368335
NITUBING, GAS (LF-RIGHT)
NIMAY W10276501
1VALVE, GAS (LF)
2MAY 7101P426- 60
3MAY W10276534
4BRACKET, VALVE
5MAY W10115850
6ADAPTER, FEMALE
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR, PRESSURE
12MAY W10371508
13BRACKET, BURNER
14VALVE, SIMMER
15MAY W10115843
16MODULE, SPARK
17MAY W10189177
18TUBE, PRESSURE REGULATOR
19BRACKET, SPARK MODULE
20ADAPTER, MALE
