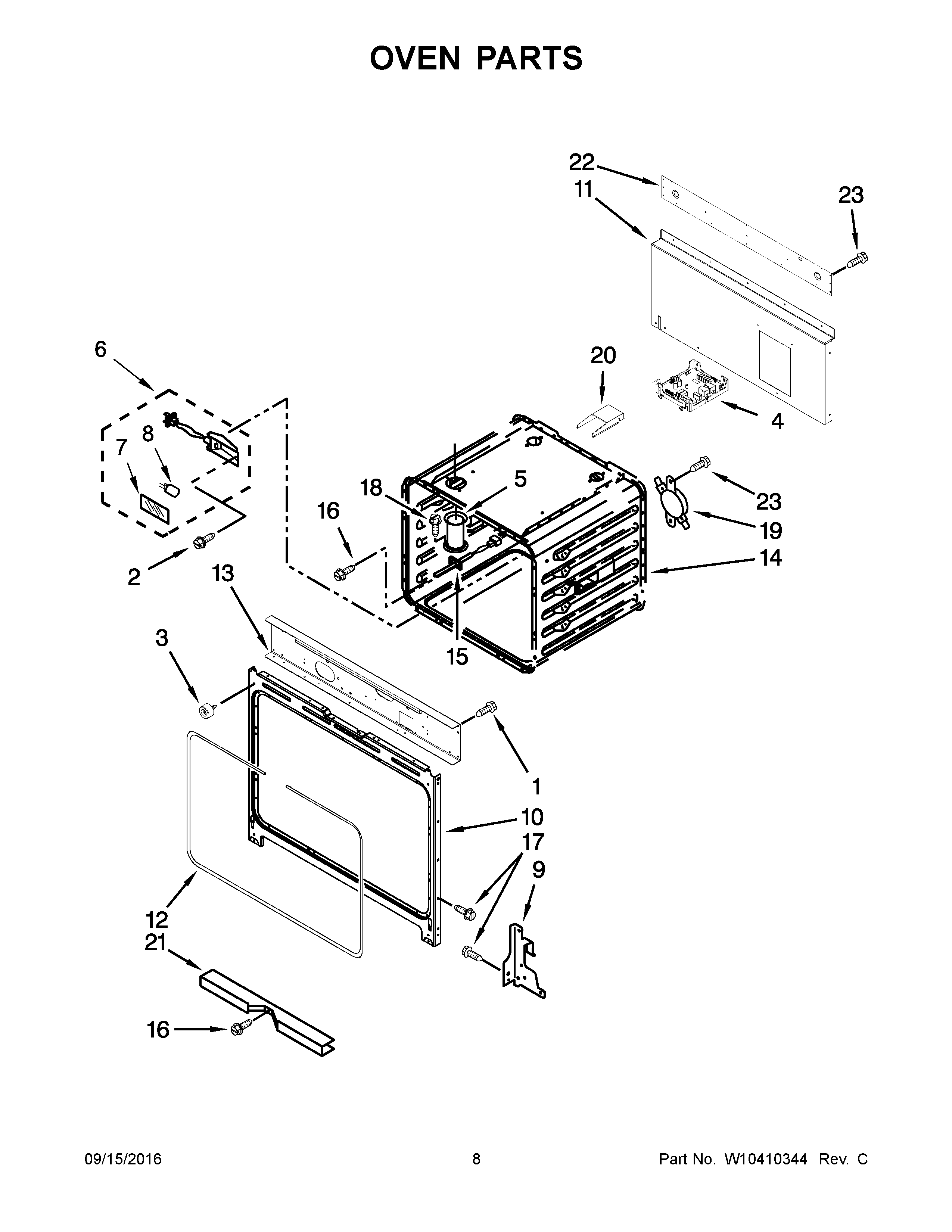

JDRP430WP01 05 – OVEN PARTS

JDRP430WP01 05 – OVEN PARTS

Written by

in

JDRP430WP01 05 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP, 30“
NI	INSULATION, BACK, 30“
1	MAY W10292297
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MANAGER, APPLIANCE (GOC)
5	MAY W10288061
6	OVEN LIGHT ASSY
7	LENS
8	BULB, OVEN
9A	MAY 4455606
9	MAY 4455605
10	MAY W10115831
11	MAY W10145392
12	GASKET, OVEN (30")
13	MAY W10145377
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
20	DRAWER
21	MAY W10157511
22	PANEL, BACK TOP
23	MAY 7101P426- 60
