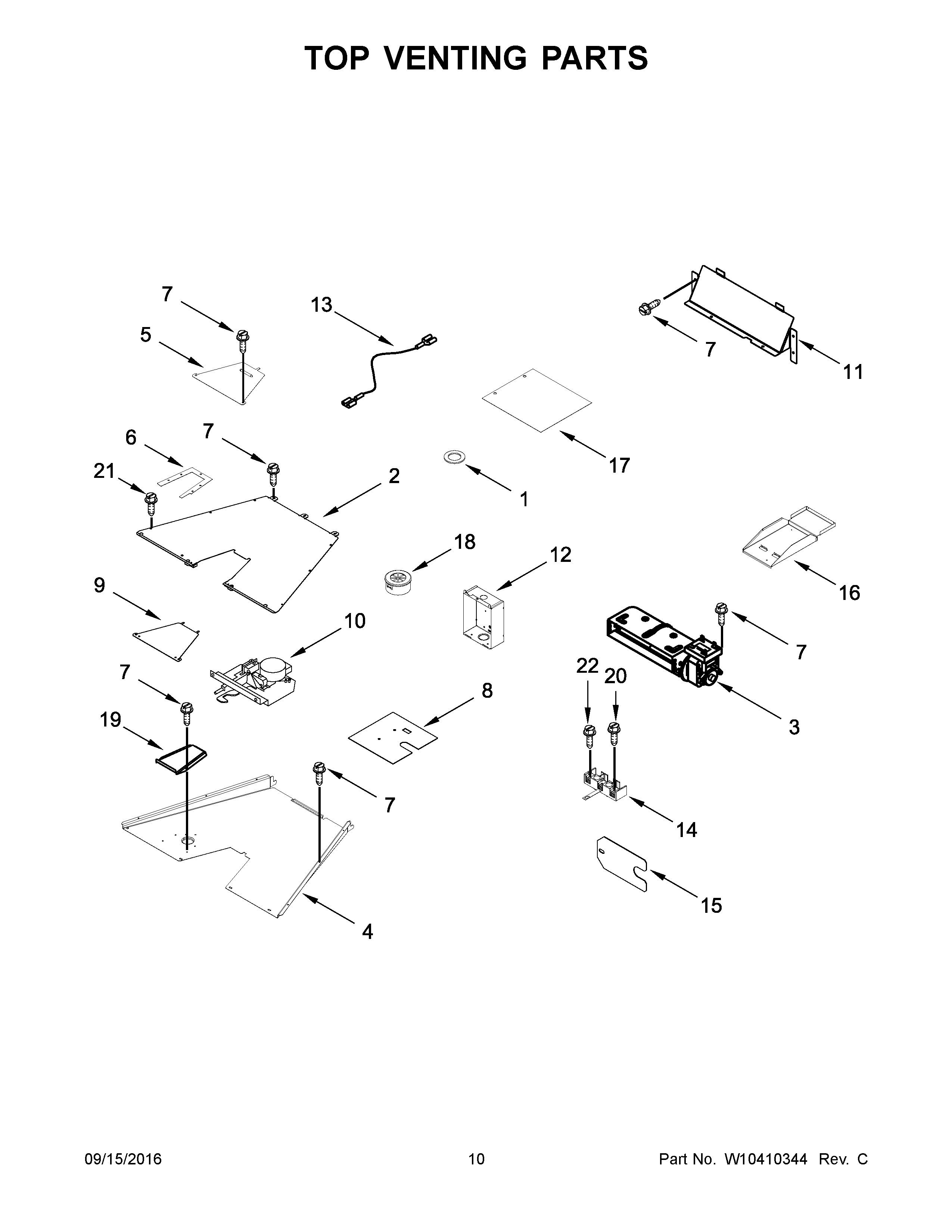

JDRP430WP01 06 – TOP VENTING PARTS

Products

Position	Product
1	MAY W10270396
2	MAY W10160896
3	BLOWER
4	MAY W10246078
5	PLATE, LATCH
6	MAY W10270397
7	MAY 7101P426- 60
8	INSULATOR, TERMINAL BOX
9	MAY W10160858
10	LATCH, MOTORIZED
11	MAY W10160844
12	BOX, TERMINAL
13	ELECTRODE, WIRE
14	Block, Terminal
15	MAY W10145382
16	SUPPORT, CONTROL
17	SEAL
18	BUSHING, SNAP SPLIT
19	SLOPE, EXHAUST VENT (30")
20	SCREW
21	SCREW
22	SCREW, GROUNDING
