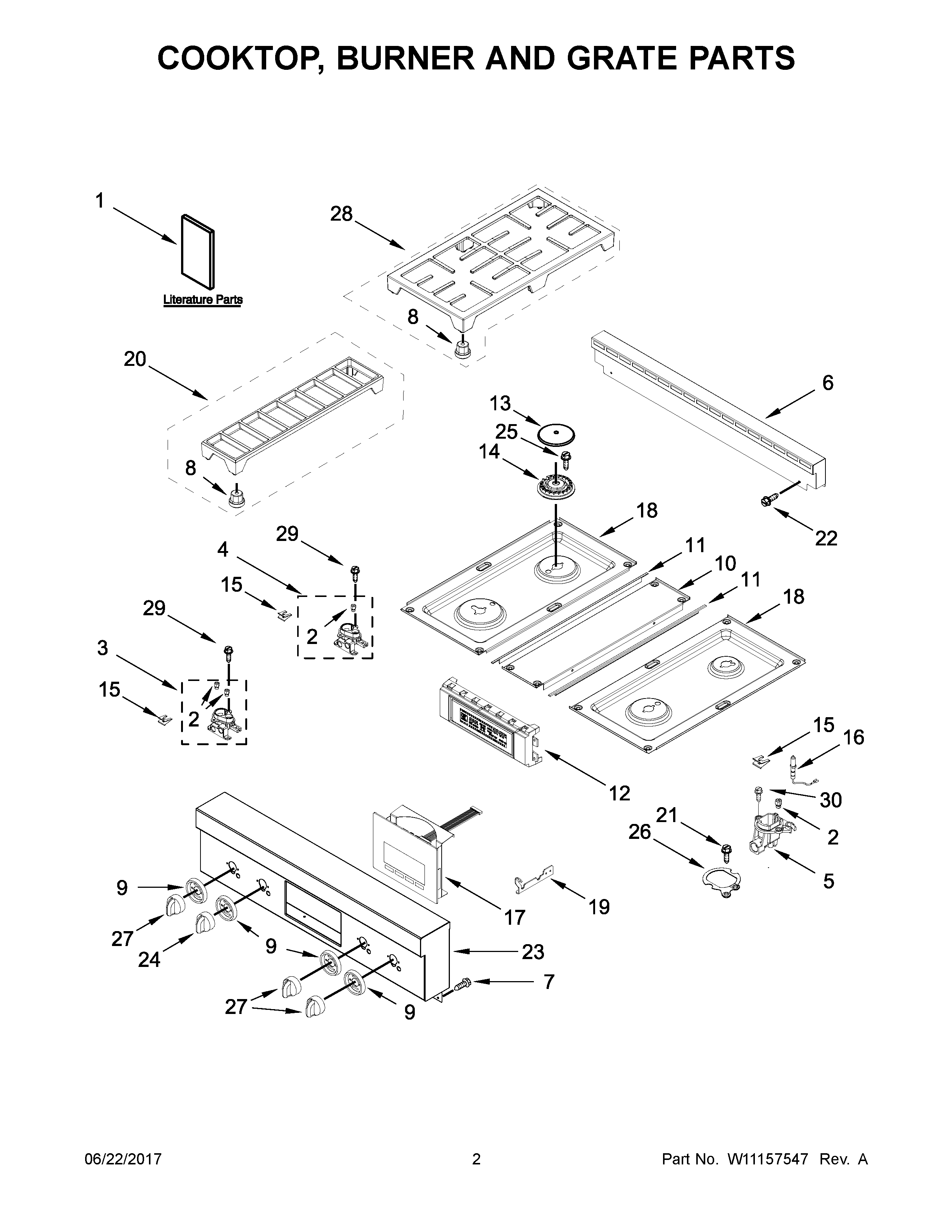

JDRP430WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIMAY W10766100
NIMAY W10624586
NIMAY W10368807
NIMAY 4450800
NIMAY W10830809
NIMAY W10344051
NIBRACKET, ANTI-TIP
NIGROMMET, FLEX
NIMAY W10145988
NIMAY W10116142
NIMAY W10340850
NIMAY 9759877
NIMAY W10183556
NICLIP, HARNESS
NIHARNESS, DOOR LOCK
NISCREW, ANTI-TIP KIT
NIClip, Wire
NILINER (NOT A SERVICEABLE PART)
NIMAY W10763500
1BGUIDE, USE & CARE
1DTIPS, SAFE COOKING (ENGLISH)
1CINSTRUCTIONS, INSTALLATION
1SHEET, TECH (ENGLISH)
1ETIPS, SAFE COOKING (FRENCH)
1ASHEET, TECH (FRENCH)
2AORIFICE (LF-LOW)
2BORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2CORIFICE (CR)
2ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
3ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5MAY W10883622
6MAY W10269218
7MAY 3400099
8BUMPER, GRATE
9MAY W10276494
10MAY W10189105
11TRIM, T-STRIP
12ASSEMBLY, KEYPAD
13MAY W10256034
13AMAY W10256032
13BMAY W10364463
14ABURNER, HEAD (LR,RF)
14MAY W10879806
14BBURNER HEAD (RR)
15SPRING, ELECTRODE
15ASPRING, ELECTRODE (RR)
16ELECTRODE, WIRE
17ASSEMBLY, POWER SUPPLY
18MAY W10352969
18AMAY W10352968
19ABRACKET,CONSOLE (RIGHT)
19BRACKET,CONSOLE (LEFT)
20MAY W10276495
21MAY 3196160
22SCREW (8BX3/8-NI)
23PANEL, CONTROL
24KNOB, CONTROL LF
25SCREW
26MAY 8286930
27KNOB, CONTROL (LR, RF) LR, RF
28MAY W10276551
29SCREW (ALL BUT CENTER REAR)
30MAY 8286921
