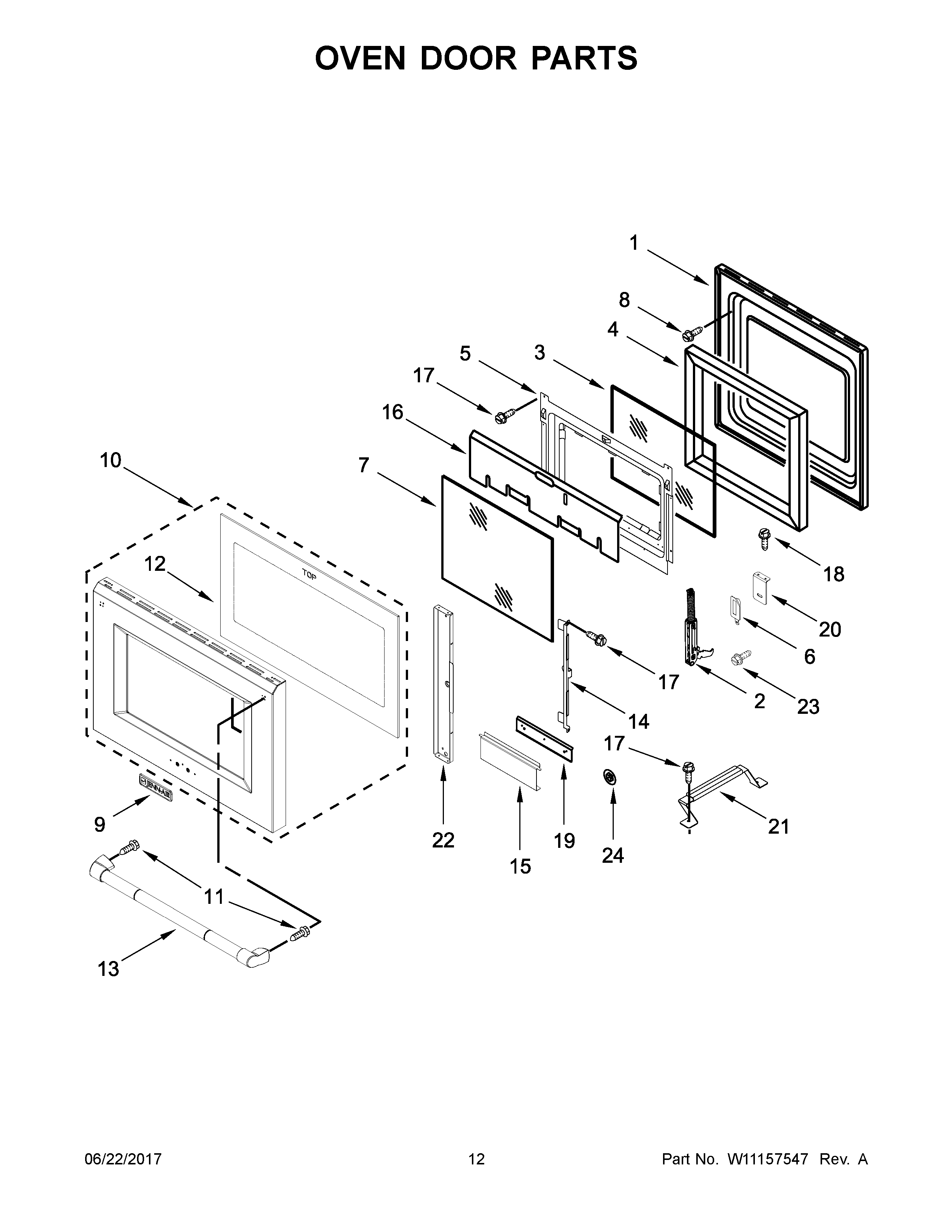

JDRP430WP02 07 – OVEN DOOR PARTS

Products

Position	Product
1	MAY 9759413
2A	HINGE, DOOR (RIGHT)
2	HINGE, DOOR (LEFT)
3	MAY 4449259
4	MAY 4451722
5	MAY 4457132
6	MAY W10115876
6A	MAY W10115877
7	MAY 9759225
8	MAY W10292297
9	MAY W10159578
10	MAY W10145759
11	SCREW, HANDLE
12	MAY W10145850
13	MAY 7701P475-60
14	MAY 9759229
15	BRACKET, CENTER OUTER GLASS
16	SHIELD, HEAT TOP
17	Screw
18	MAY 7101P426- 60
19	SHIELD, HEAT BOTTOM
20	MAY W10115715
21	MAY 9759230
22	BRACKET, SIDE
23	MAY 4449743
24	MAY 3400968
