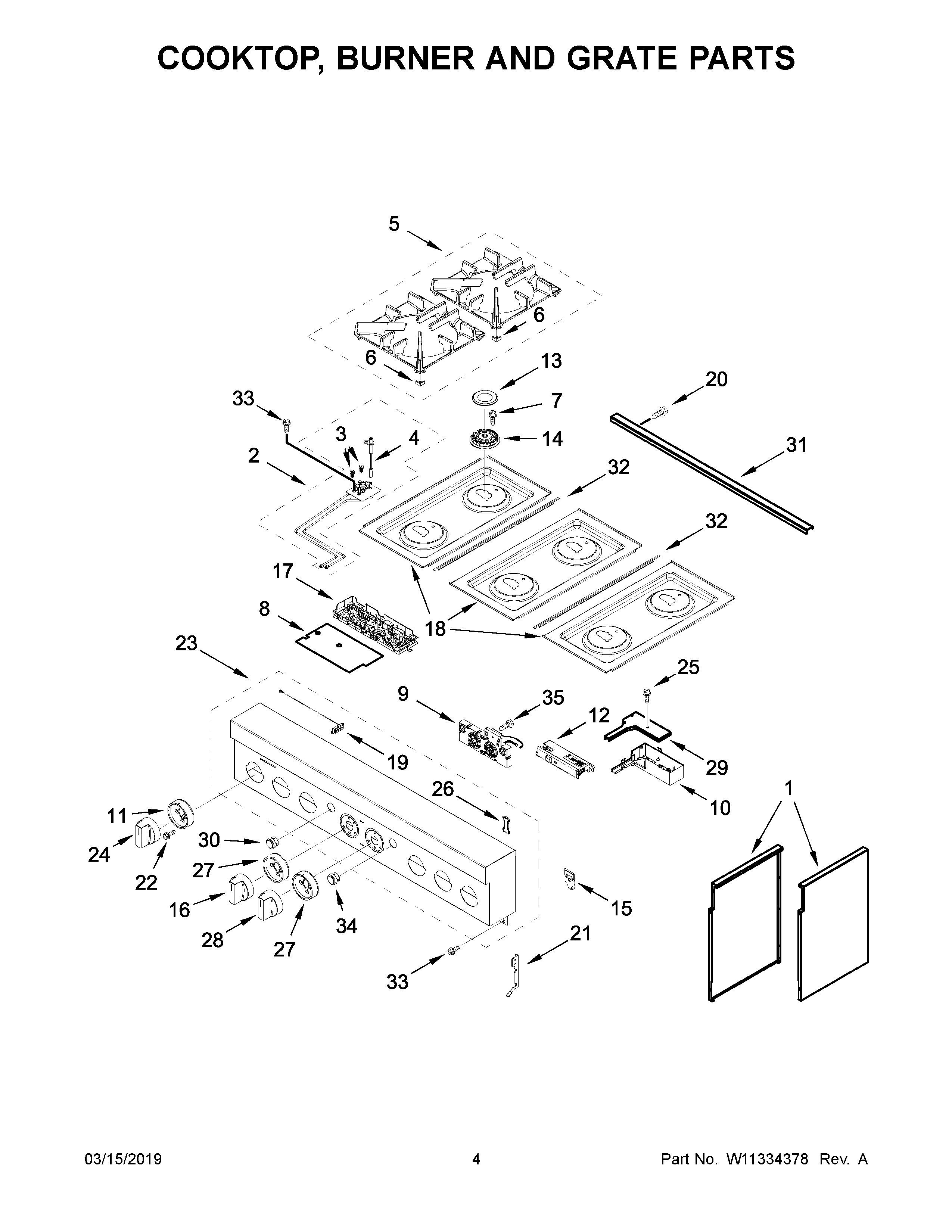

JDRP436HL00 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2A	MAY W10892494
2	MAY W10892793
2E	ASSEMBLY, ORIFICEHOLDER (RIGHT REAR)
2B	MAY W10892501
2C	ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
2D	ASSEMBLY, ORIFICEHOLDER (RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4B	IGNITER (RIGHT REAR)
4A	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	BARRIER, APPLIANCE MANAGER
9	MAY W11292566
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 6))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	KNOB, OVEN MODE (STAINLESS)
17	MAY W11100267
18A	PANEL, COOKTOP (BLACK (RIGHT CENTER))
18B	MAY W10804373
18	PANEL, COOKTOP (BLACK (LEFT))
19	ANTENNA, WIFI
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY W10919387
23	MAY W11253775
24	KNOB, BURNER (STAINLESS)
25	SCREW
26	ASSEMBLY, LIGHT PIPE
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	BUTTON ASSEMBLY, OVEN LIGHT
31	MAY W11156416
32	TRIM, T-STRIP
33	MAY 7101P426- 60
34	BUTTON ASSEMBLY, OVEN START
35	SCREW
