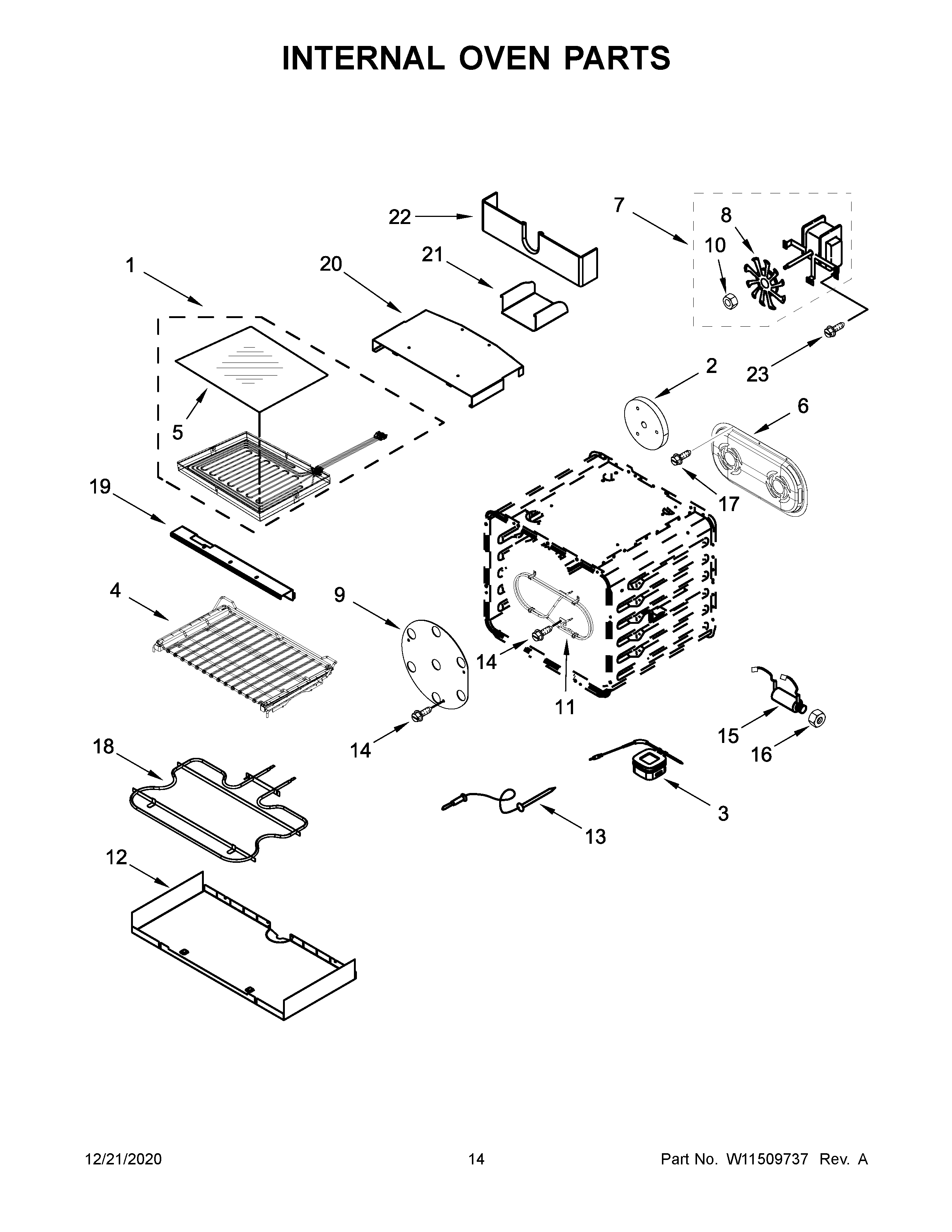

JDRP436HL01 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11210530 Whirlpool Broil Element
2	W11688507 Whirlpool Insulation
3	W11318341 Whirlpool Meat Probe
4	W11545292 Whirlpool Oven Rack
5	GLASS, BROIL ELEMENT
6	W11232487 Whirlpool Convection Baffle
7	W11685616 Whirlpool Fan Motor
8	W11320150 Whirlpool Convection Fan
9	W10261523 Whirlpool Plate
10	W10794042 Whirlpool Nut
11	W10116434 Whirlpool Element
12	W11106922 Whirlpool Dishwasher Bake Tray
13	WP9755542 Whirlpool Oven Meat Probe
14	WP4449154 Whirlpool Screw
15	8186589 Whirlpool Jack Probe
16	W11231343 Whirlpool Lock Nut
17	SCREW
18	W10860270 Whirlpool Bake Element Assembly
19	BRACKET, BROIL FRONT
20	BRACKET, BROIL TOP
21	COVER, BROIL TERMINAL
22	COVER PLATE, TERMINAL HOLE
23	W10850807 Whirlpool Screw
