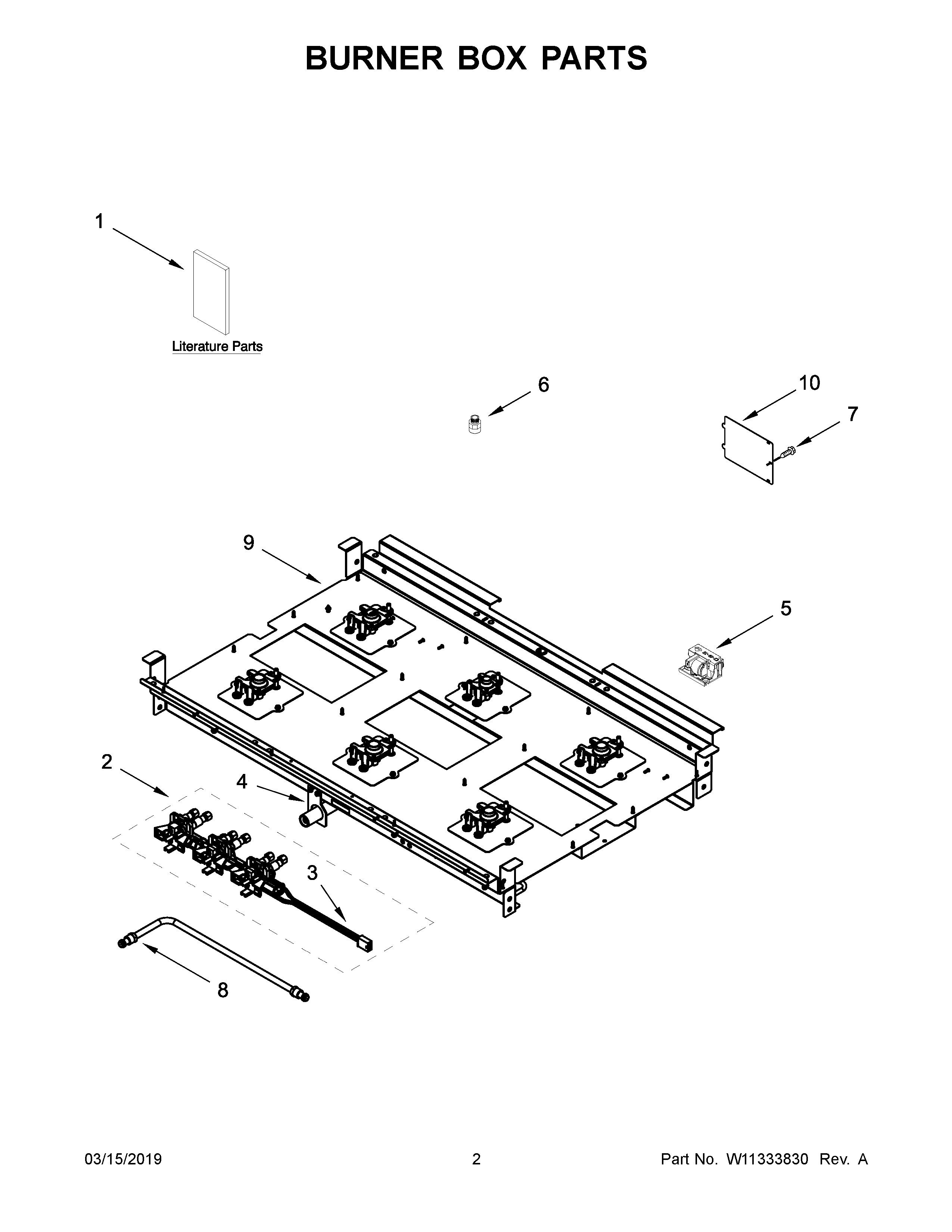

JDRP436HM00 02 – BURNER BOX PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	MAY W11200320
NI	CORD, POWER
NI	MAY W11200332
NI	HARNESS, WIFI
NI	MAY W11200325
NI	HARNESS, DOOR LOCK
NI	KIT, LP CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
NI	BUSHING, SNAP SPLIT
NI	MAY 9759877
NI	MAY 4450800
NI	BRACKET, ANTI-TIP
1E	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
1D	MAY W11202363
1C	MAY W11266585
1B	GUIDE, INTERNET CONNECTIVITY
2	MAY W10893052
2A	MAY W10893059
3	SWITCH, HARNESS (GRILL, RIGHT FRONT, RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	ADAPTER, MALE
7	MAY 7101P426- 60
8A	MAY W10892417
8	MAY W10892370
10	MAY W10115843
