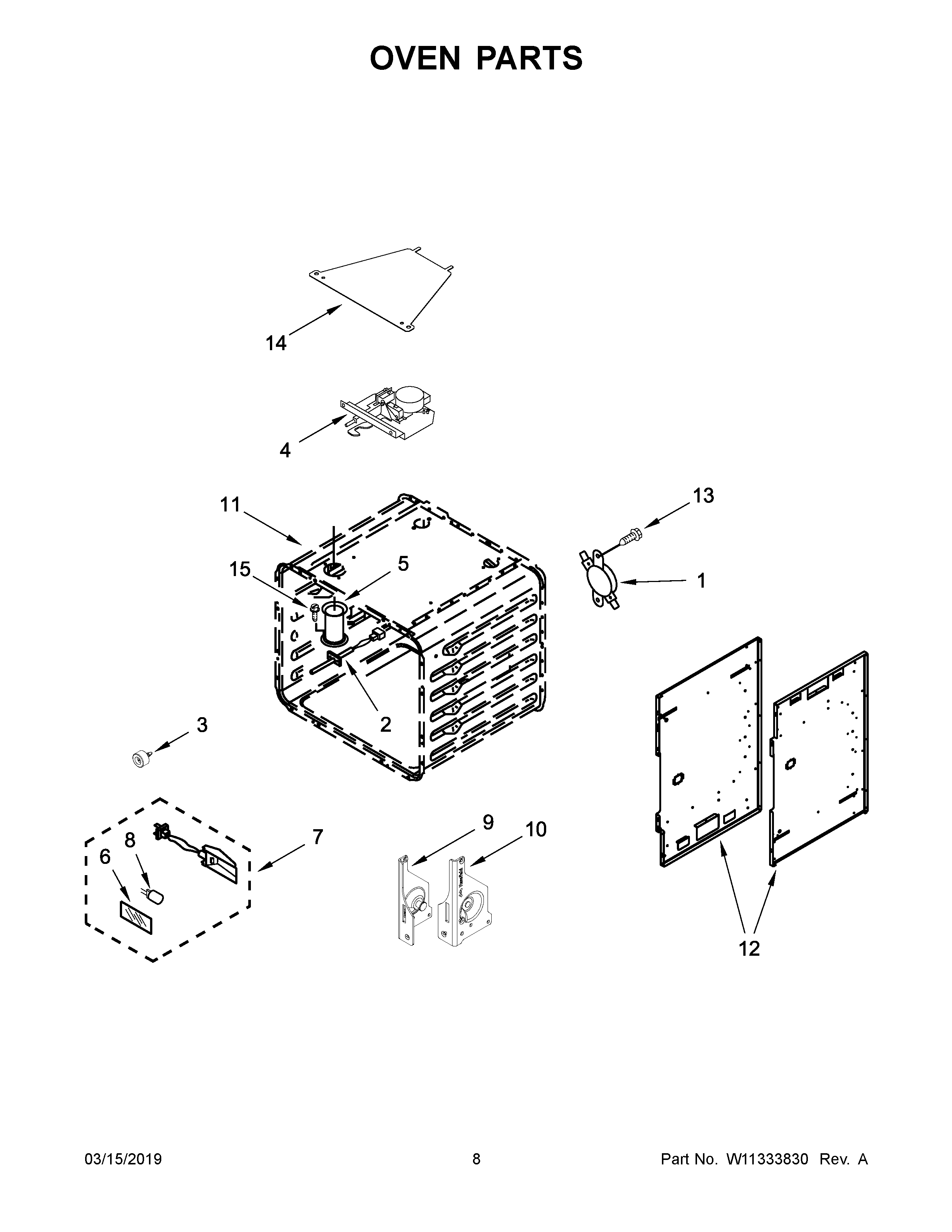

JDRP436HM00 05 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282811
NI	MAY W10282815
NI	MAY 3400968
1	THERMOSTAT
2	MAY W10622170
3	ASSEMBLY, BUMPER
4	LATCH, MOTORIZED
5	TUBE, VENT
6	LENS
7	ASSEMBLY, OVEN LIGHT
8	BULB, OVEN
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12	CHASSIS, SIDE (LEFT)
12A	CHASSIS, SIDE (RIGHT)
13	MAY 7101P426- 60
14	MAY W10160858
15	Screw
