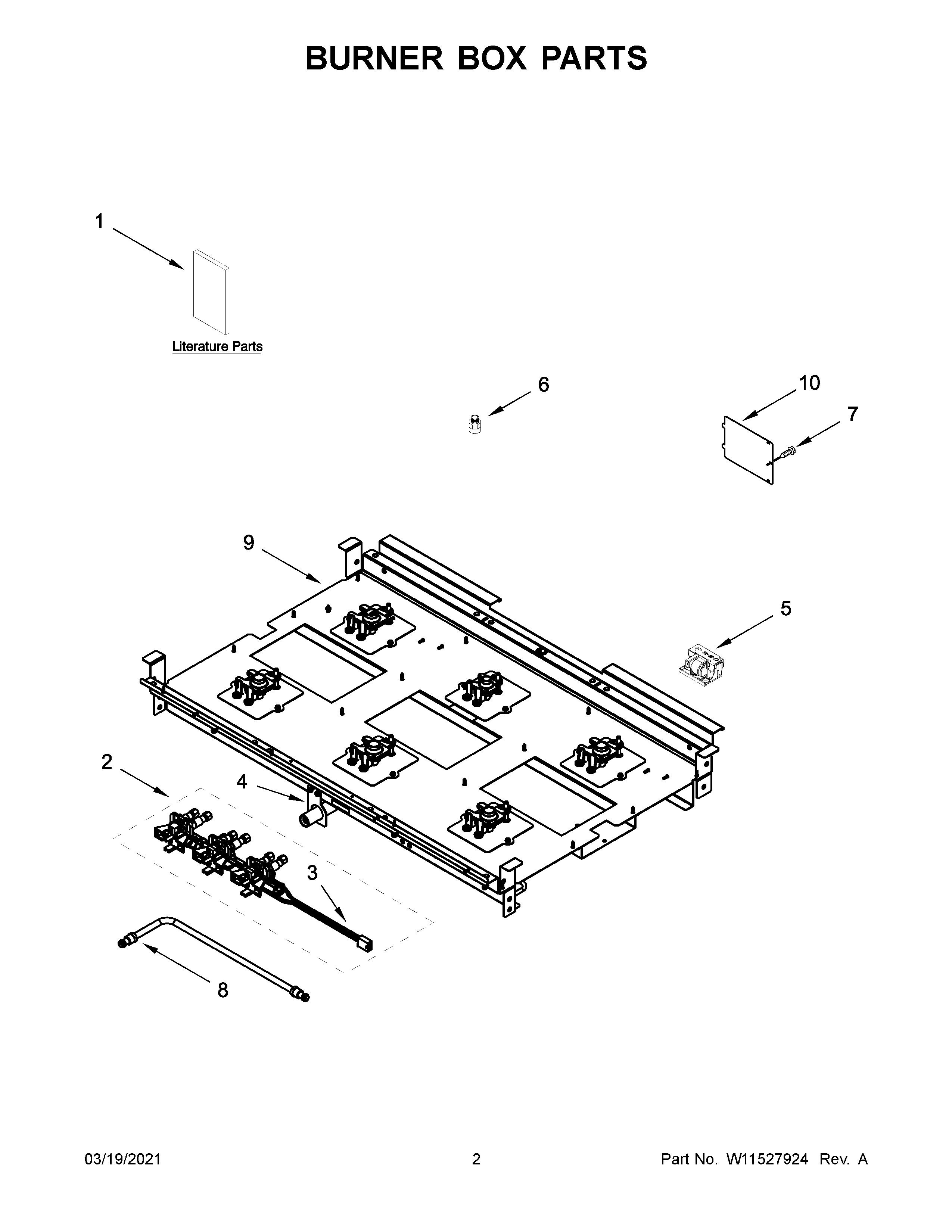

JDRP436HM01 02 – BURNER BOX PARTS

JDRP436HM01 02 – BURNER BOX PARTS

Written by

in

JDRP436HM01 02 – BURNER BOX PARTS

Products

PositionProduct
NIHARNESS, MAIN (36 IN)
NICORD, POWER
NIWP9759877 Whirlpool Retainer
NIHARNESS, COOKTOP
NIW11317791 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW11169708 Whirlpool Screw
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
NIW11428599 Whirlpool Conversion Kit
NIW11544575 Whirlpool Anti-Tip Bracket
NISCREW, ANTI-TIP KIT
1AINSTRUCTIONS, INSTALLATION
1FSHEET, TECH
1DDIAGRAM, WIRING (COOKTOP)
1GUIDE, USE AND CARE
1EDIAGRAM, WIRING (OVEN)
1CGUIDE, INTERNET CONNECTIVITY
1BGUIDE, QUICK START
2AW11334710 Whirlpool Manifold
2W11334707 Whirlpool Manifold Assembly
3W11328263 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
64453116 Whirlpool Oven Adapter
7SCREW
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
10W10115843 Whirlpool Access Cover
