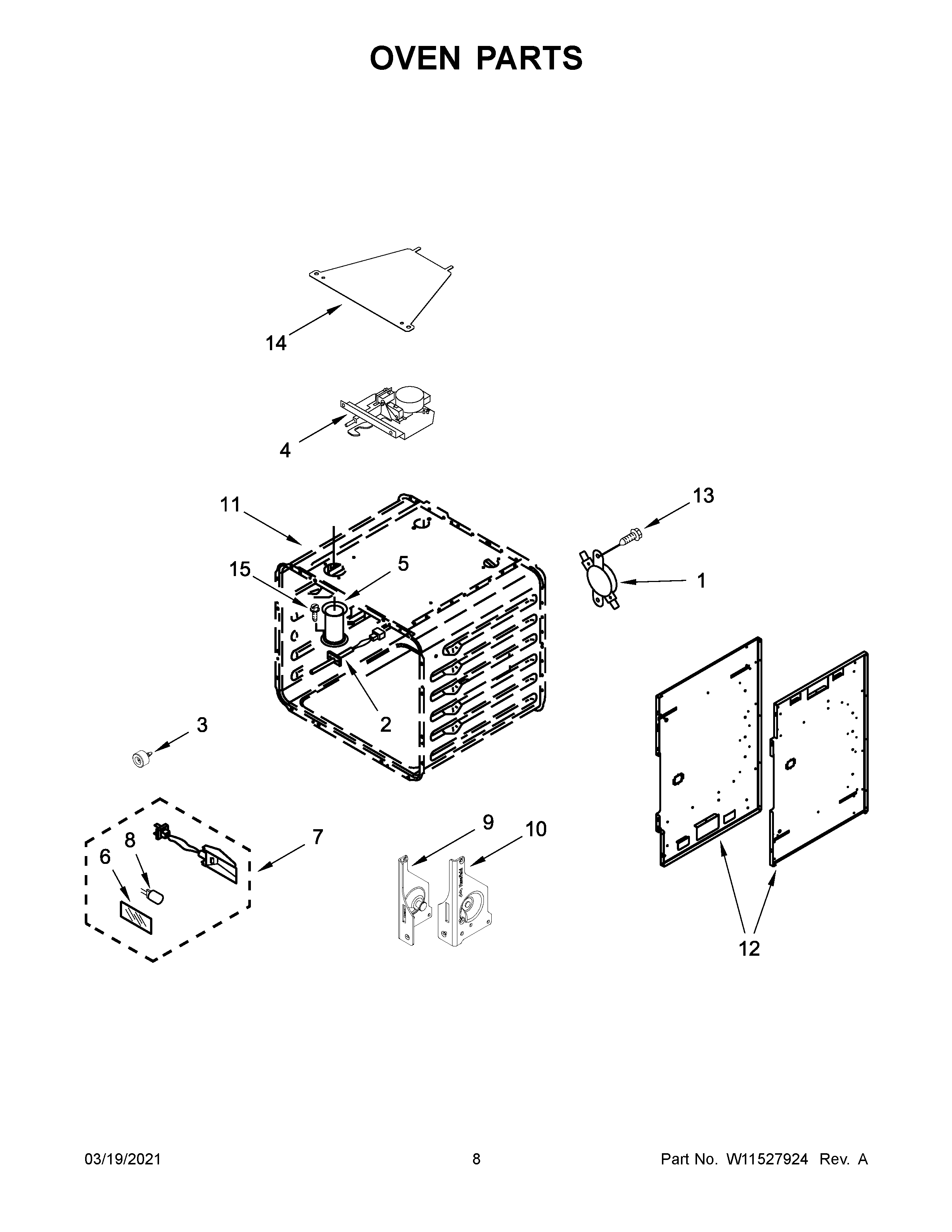

JDRP436HM01 05 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	WP3400968 Whirlpool Nut
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11688743 Whirlpool Insulation
1	WP4449751 Whirlpool Range Oven Thermostat Fix
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W10169756 Whirlpool Light Lens
7	W11233684 Whirlpool Oven Light Assembly
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
12A	CHASSIS, SIDE (RIGHT)
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	SCREW
