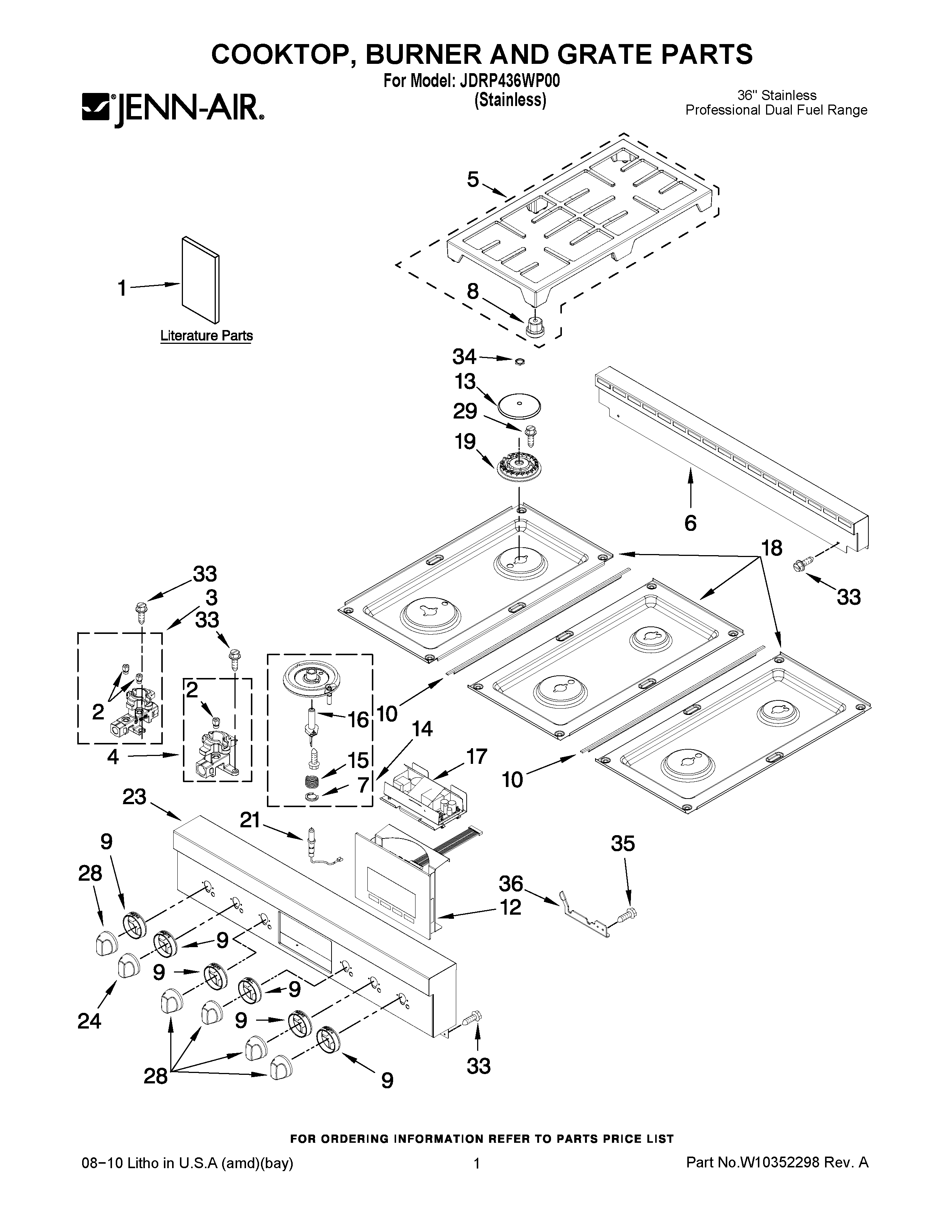

JDRP436WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTR, INSTALLER
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10295367
1MAY W10294843
1MAY W10294839
1MAY W10145393
2ORIFICE (L)
2ORIFICE (LF)
2ORIFICE (CR)
2ORIFICE (LR & RF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (LR & RF)
4ORIFICE HOLDER (RR)
5MAY W10276551
6MAY W10269217
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10TRIM, T-STRIP
12MAY W10344181
13CAP, BURNER (LR & RF)
13CAP, BURNER (LF)
13CAP, BURNER (RR)
14BASE, BURNER (LF)
14BASE, BURNER (LR & RF)
15SPRING, ELECTRODE (LF, LR & RF)
15SPRING, ELECTRODE (RR)
16ELECTRODE (CR)
16ELECTRODE (LR & RF)
16ELECTRODE (LF)
17ASSEMBLY, POWER SUPPLY
18MAY W10189104
18MAY W10189101
18COOKTOP (CENTER)
19BURNER HEAD (RR)
19BURNER HEAD (LF)
19BURNER HEAD (LR & RF)
21ELECTRODE, WIRE
23MAY W10295785
24KNOB, CONTROL LF
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
33SCREW (8BX3/8-NI)
34MAY W10115953
35MAY 7101P500-60
36BRACKET,CONSOLE (RIGHT)
36BRACKET,CONSOLE (LEFT)
