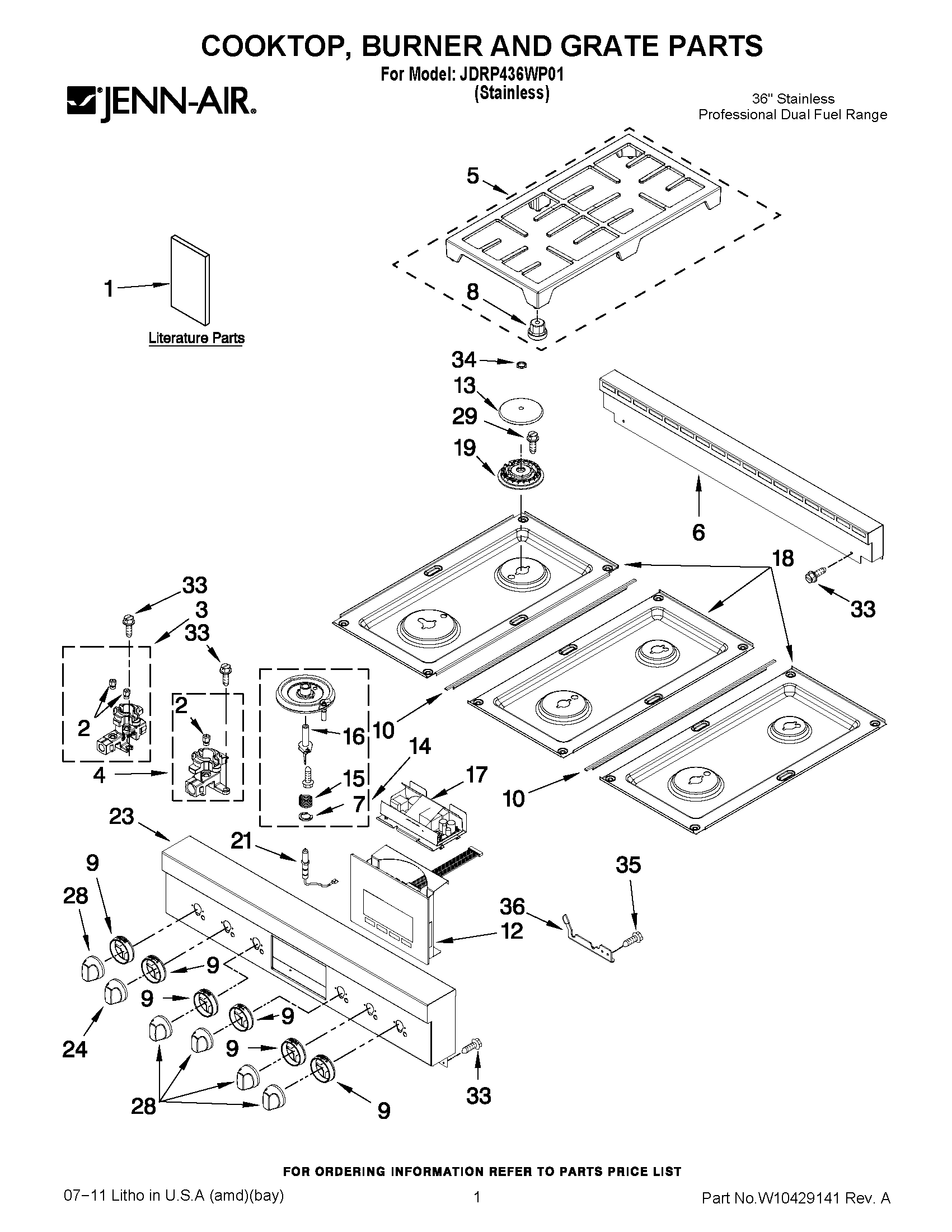

JDRP436WP01 01 – COOKTOP, BURNER AND GRATE PARTS

JDRP436WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JDRP436WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10294843
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10294839
1MAY W10349768
1INSTR, INSTALLER
1MAY W10295367
2ORIFICE (LF)
2ORIFICE (LR & RF)
2ORIFICE (L)
2ORIFICE (CR)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (RR)
4ORIFICE HOLDER (LR & RF)
5MAY W10276551
6MAY W10269217
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10TRIM, T-STRIP
12MAY W10344181
13CAP, BURNER (LF)
13CAP, BURNER (LR & RF)
13CAP, BURNER (RR)
14BASE, BURNER (LR & RF)
14BASE, BURNER (LF)
15SPRING, ELECTRODE (RR)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (LR & RF)
16ELECTRODE (CR)
16ELECTRODE (LF)
17ASSEMBLY, POWER SUPPLY
18MAY W10189104
18COOKTOP (CENTER)
18MAY W10189101
19BURNER HEAD (LF)
19BURNER HEAD (RR)
19BURNER HEAD (LR & RF)
21ELECTRODE, WIRE
23MAY W10295785
24KNOB, CONTROL LF
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
33SCREW (8BX3/8-NI)
34MAY W10115953
35MAY 7101P500-60
36BRACKET,CONSOLE (RIGHT)
36BRACKET,CONSOLE (LEFT)
