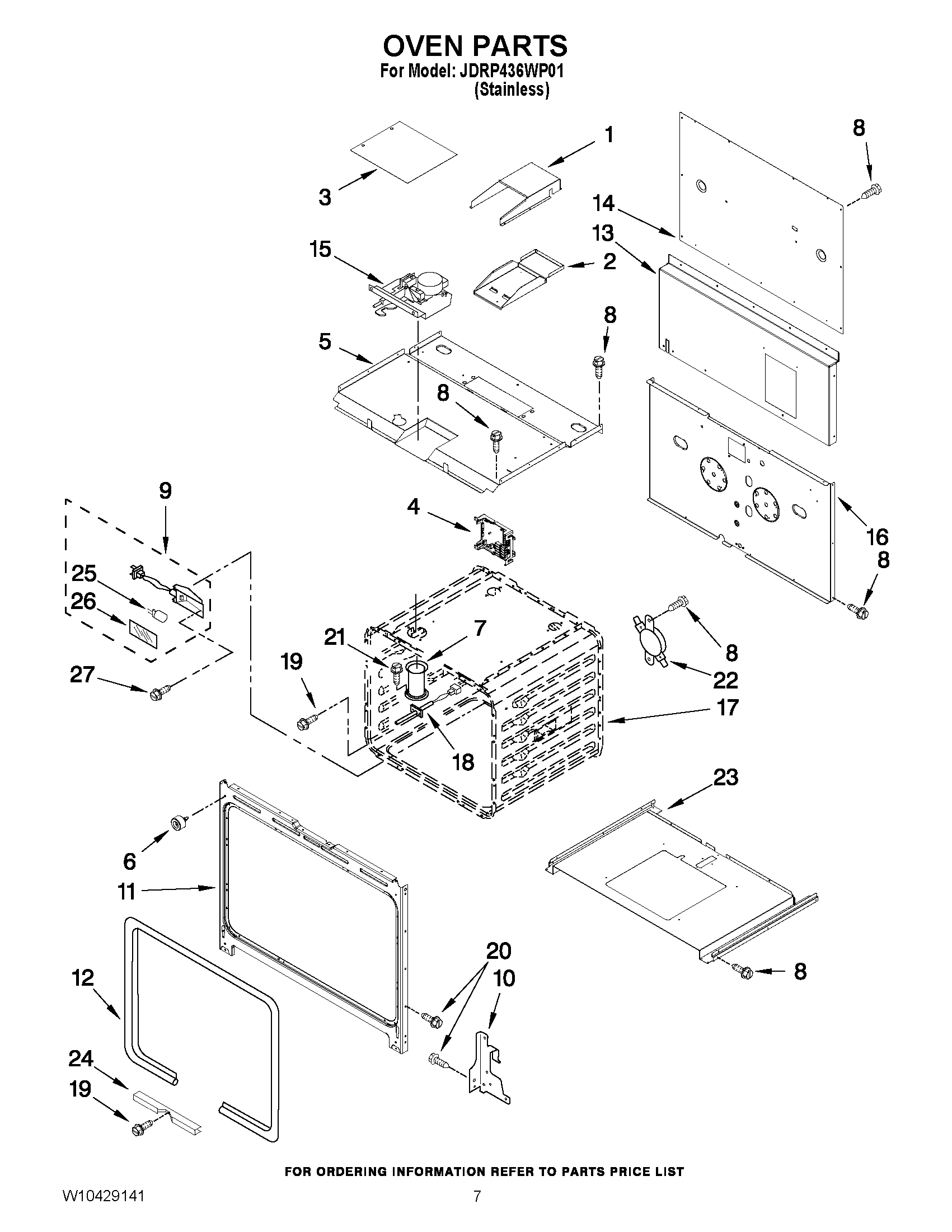

JDRP436WP01 05 – OVEN PARTS

Products

Position	Product
NI	MAY W10282811
NI	MAY W10282815
1	DRAWER
2	SUPPORT
3	SEAL
4	MAY W10146048
5	MAY W10267896
6	ASSEMBLY, BUMPER
7	MAY W10288061
8	MAY 7101P426- 60
9	OVEN LIGHT ASSY
10	MAY 4455605
10	MAY 4455606
11	MAY W10160867
12	MAY W10160889
13	MAY W10145391
14	MAY W10269208
15	MAY W10195935
16	MAY W10324087
17	LINER (NOT A SERVICEABLE PART)
18	MAY W10131825
19	MAY 4449154
20	MAY 4449040
21	Screw
22	THERMOSTAT
23	BOTTOM, CHASSIS
24	MAY W10157511
25	BULB, OVEN
26	LENS
27	MAY 4449748
