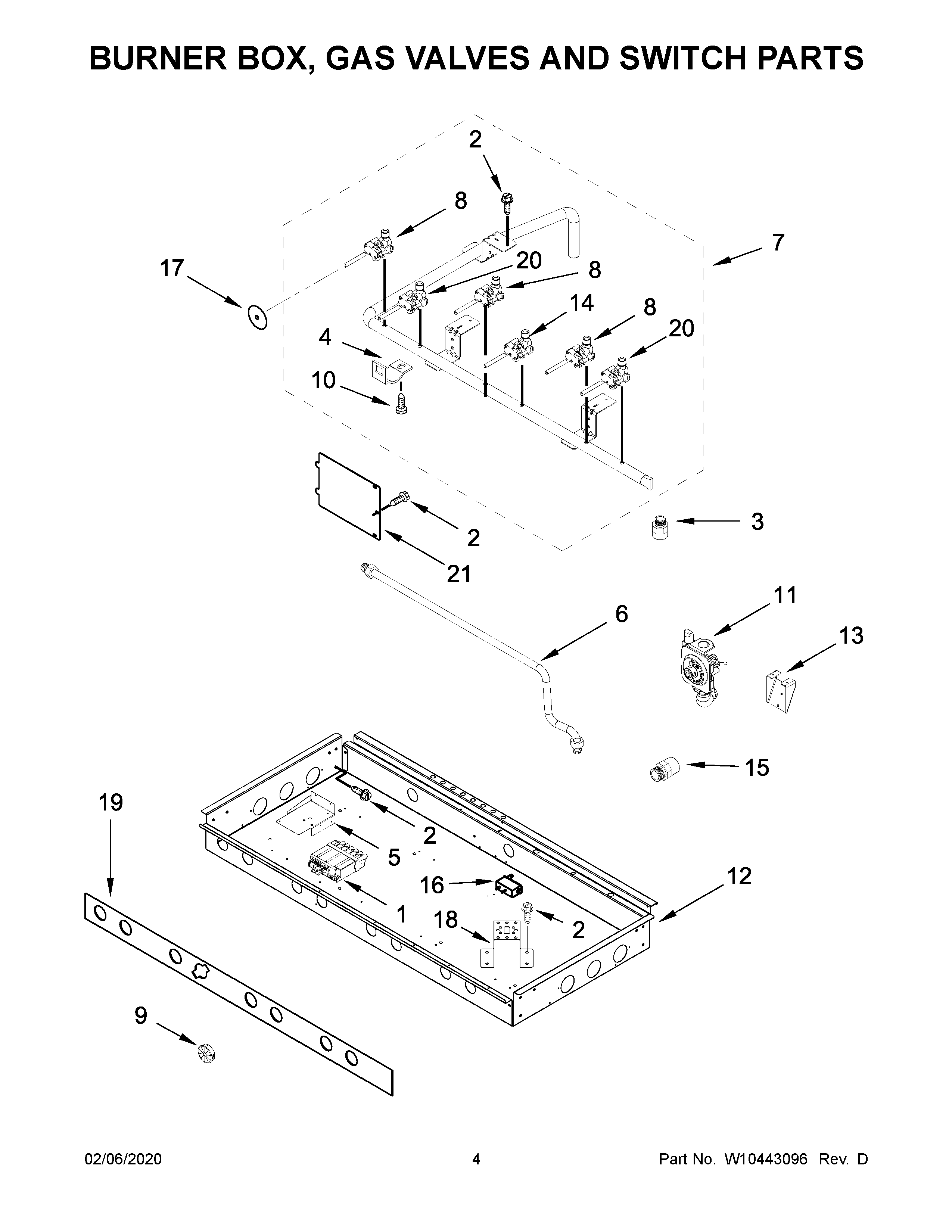

JDRP436WP02 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NITUBING, GAS (LF-LEFT)
NITUBE (RIGHT FRONT, HIGH)
NITUBE (RIGHT REAR)
NITUBE (CENTER FRONT)
NITUBING, GAS (LF-RIGHT)
NILINER (NOT A SERVICEABLE PART)
NITUBING, GAS (LR)
NITUBE, FRT LFT
NIMAY W10145488
1MODULE, SPARK
2MAY 7101P426- 60
3ADAPTER, FEMALE
4BRACKET, VALVE
5BRACKET, SPARK MODULE
6TUBE, PRESSURE REGULATOR
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR, PRESSURE
12BOX, BURNER
13MAY W10115850
14VALVE, SIMMER
15ADAPTER, MALE
16REIGNITOR
17MAY W10189177
18BRACKET, BURNER
19MAY W10145622
20VALVE, GAS (LF)
21MAY W10115843
