JDRP436WP02 05 – OVEN PARTS – Aparts

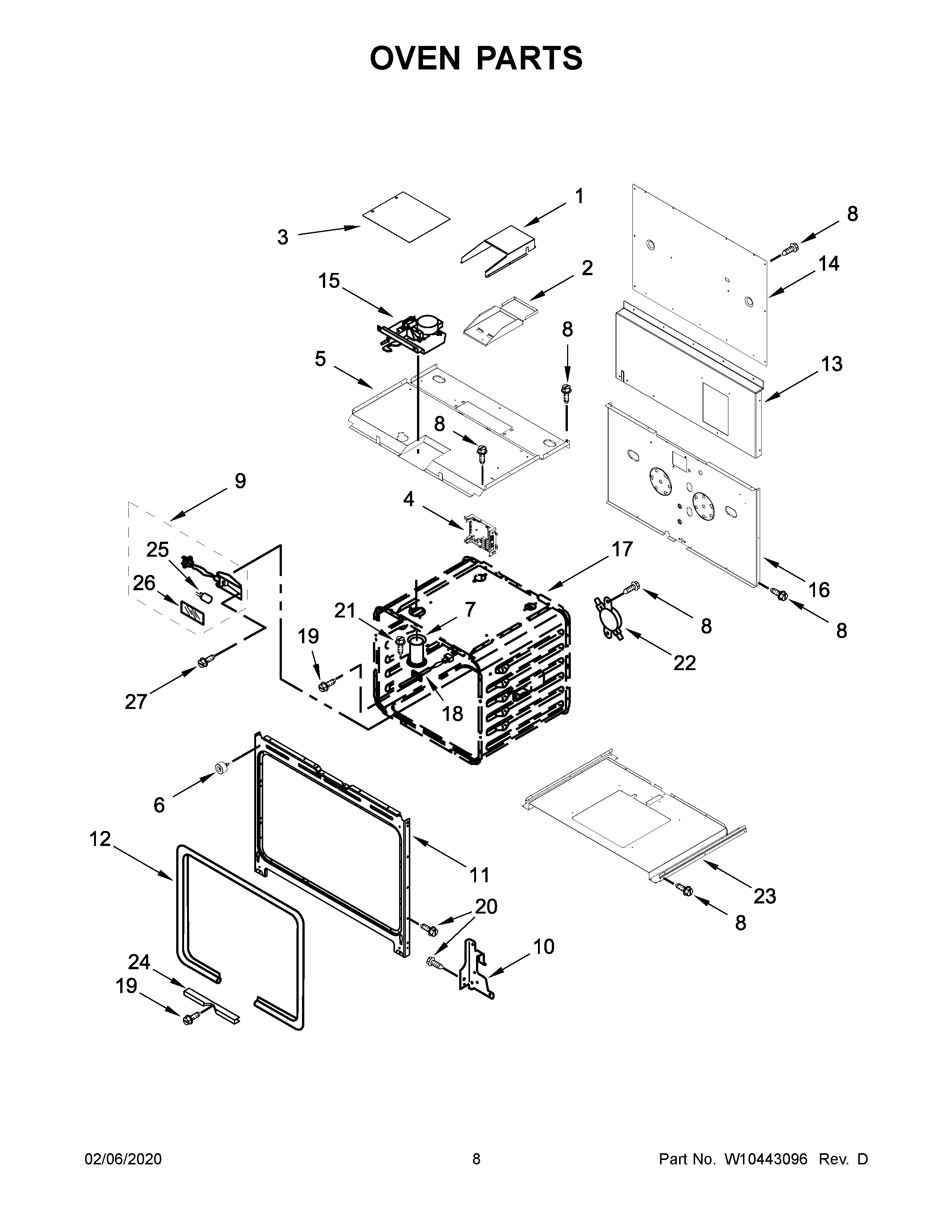

JDRP436WP02 05 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282815
NI	MAY W10282811
1	DRAWER
2	SUPPORT, CONTROL
3	SEAL
4	MANAGER, APPLIANCE (GOC)
5	MAY W10267896
6	ASSEMBLY, BUMPER
7	MAY W10288061
8	MAY 7101P426- 60
9	OVEN LIGHT ASSY
10A	MAY 4455606
10	MAY 4455605
11	MAY W10160867
12	GASKET, OVEN
13	MAY W10145391
14	MAY W10269208
15	LATCH, MOTORIZED
16	MAY W10324087
18	MAY W10131825
19	MAY 4449154
20	MAY 4449040
21	Screw
22	THERMOSTAT
23	BOTTOM, CHASSIS
24	MAY W10157511
25	BULB, OVEN
26	LENS
27	MAY 4449748
