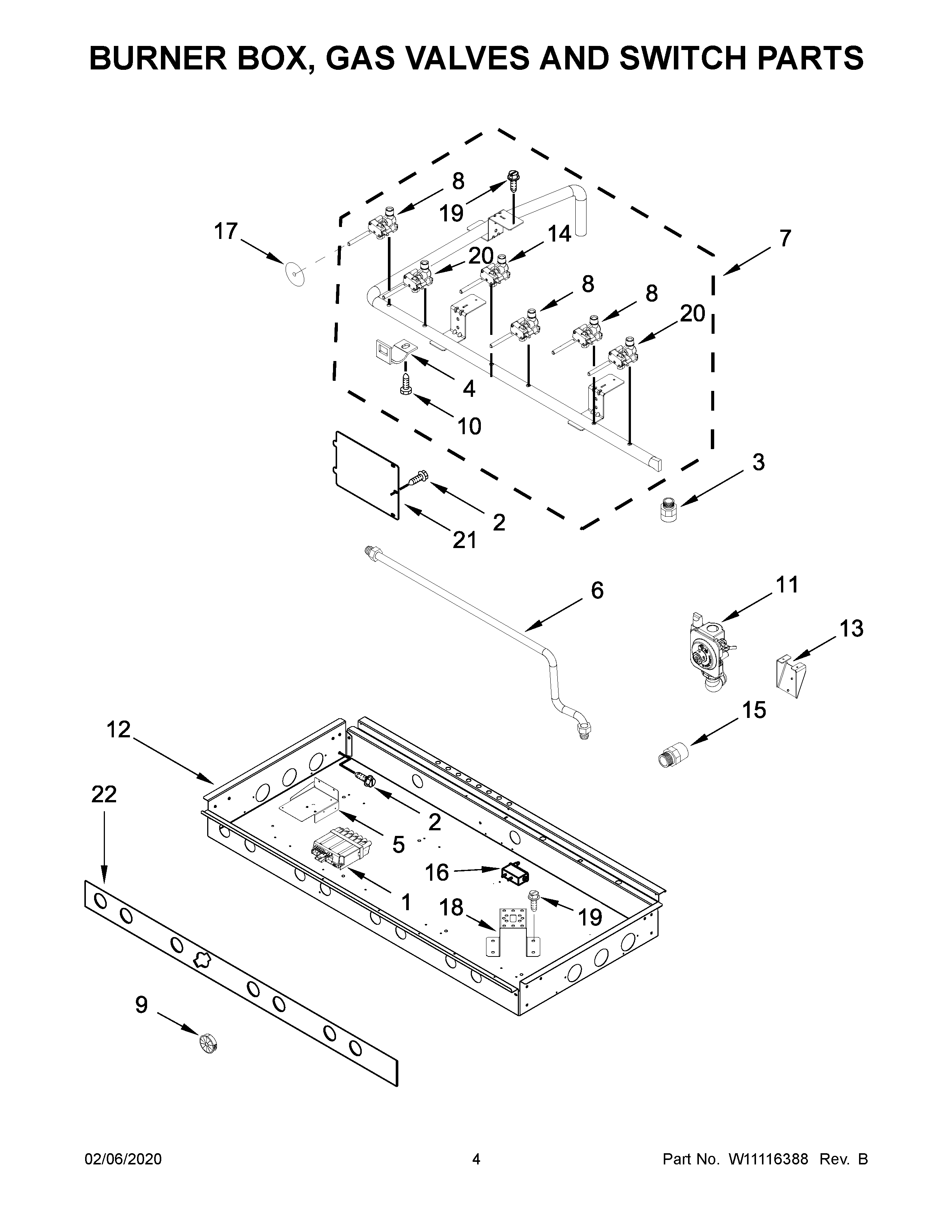

JDRP436WP03 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

JDRP436WP03 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Written by

in

JDRP436WP03 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

PositionProduct
NITUBE, FRT LFT
NILINER (NOT A SERVICEABLE PART)
NIMAY W10145488
NITUBING, GAS (LR)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LF-RIGHT)
NITUBE (CENTER FRONT)
NITUBE (RIGHT REAR)
NITUBE (RIGHT FRONT, HIGH)
1MODULE, SPARK
3ADAPTER, FEMALE
4BRACKET, VALVE
5BRACKET, SPARK MODULE
6TUBE, PRESSURE REGULATOR
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR, PRESSURE
12BOX, BURNER
13MAY W10115850
14VALVE, SIMMER
15ADAPTER, MALE
16REIGNITOR
17MAY W10189177
18BRACKET, BURNER
19MAY 7101P426- 60
20VALVE, GAS (LF)
21MAY W10115843
22MAY W10145622
